Broadcom Limited ACPL-M61L-500E

Part No.:: ACPL-M61L-500E

Manufacturer:: Broadcom Limited

Package:: 6-SOIC (0.173, 4.40mm Width), 5 Leads

Datasheet:: ACPL-M61L-500E.pdf

Description:: OPTOISO 3.75KV PUSH PULL 5SO

In Stock:: 3163

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ACPL-M61L-500E Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
NumberofChannels:
1
Inputs-Side1/Side2:
1/0
Voltage-Isolation:
3750Vrms
CommonModeTransientImmunity(Min):
20kV/µs
InputType:
DC
OutputType:
Push-Pull, Totem Pole
Current-Output/Channel:
10 mA
DataRate:
10MBd
PropagationDelaytpLH/tpHL(Max):
80ns, 80ns
Rise/FallTime(Typ):
12ns, 12ns
Voltage-Forward(Vf)(Typ):
1.3V
Current-DCForward(If)(Max):
8mA
Voltage-Supply:
2.7V ~ 5.5V
OperatingTemperature:
-40°C ~ 105°C
MountingType:
Surface Mount

ACPL-M61L-500E this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ACPL-M61L-500E price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ACPL-M61L-500E to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ACPL-M61L-500E information

Views：

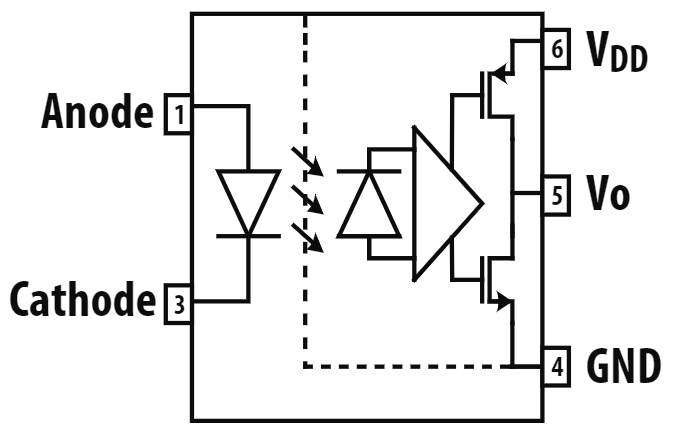

ACPL-M61L-500E Typical application Circuitry

ACPL-M61L-500E

The ACPL-M61L-500E is a low power, high speed digital isolator with a CMOS output, manufactured by Broadcom. This component is designed to provide electrical isolation in a wide range of digital signal isolation applications, including microcontroller interface, digital fieldbus isolation, and isolated SPI interfaces.

Application Scenarios

ACPL-M61L-500E finds its application in various scenarios, including but not limited to:

- Isolated SPI Communication: Ensures safe data transfer between different parts of a system that operate at different ground potentials.

- Microcontroller Interface: Isolates the microcontroller from potentially harmful voltages in industrial applications.

- Digital Fieldbus Isolation: Provides isolation for devices connected to industrial fieldbuses, protecting against electrical noise and ground loops.

Parameter Features

The ACPL-M61L-500E showcases several key features:

- Low Power Consumption: Ideal for power-sensitive applications.

- High Speed Operation: Supports fast digital signal isolation, facilitating quick data transfer.

- High Isolation Voltage: Offers a high degree of electrical isolation, enhancing safety and reliability.

- Compact Packaging: Suitable for space-constrained applications.

Specific Application Circuit: Isolated SPI Communication

In the context of an isolated SPI communication scenario, the ACPL-M61L-500E can be used to isolate a microcontroller from an SPI device (like a sensor or another microcontroller), ensuring safe data transfer across different ground potentials. The circuit connection details are as follows:

- Power Supply Isolation: The ACPL-M61L-500E requires two separate power supplies for its input and output sides to ensure proper isolation. The VCC1 pin (pin 1) should be connected to the microcontroller side power supply, and VCC2 (pin 8) to the SPI device side power supply.

- Ground Connection: The ground of the input side (GND1, pin 5) must be connected to the microcontroller ground, and the ground of the output side (GND2, pin 4) to the SPI device ground, ensuring that the isolation barrier is not compromised.

- Input Signal Connection: Connect the SPI signal lines (such as SCK, MOSI) from the microcontroller to the input pins of the ACPL-M61L-500E. For instance, SCK to pin 2 (IN+), ensuring that the signals to be isolated are correctly interfaced.

- Output Signal Connection: The corresponding output pins on the ACPL-M61L-500E (e.g., VO1 for SCK) should then be connected to the SPI device. Signal integrity is preserved over the isolation barrier as a result.

- Decoupling Capacitors: To ensure stable operation and filter out power supply noise, use decoupling capacitors in close proximity to the VCC1 and VCC2 pins.

- Thermal Management: Although the ACPL-M61L-500E is low power, ensuring sufficient spacing for air circulation helps maintain optimal operating temperature.

Circuit Design Considerations

When designing with the ACPL-M61L-500E, several factors must be taken into account:

- Power Supply Integrity: Ensure clean, stable power supplies on both sides of the isolator to prevent data corruption.

- Signal Integrity: To lessen signal deterioration across the isolator, minimize the length of connections.

- Isolation Requirements: Adhere to the specified isolation voltage ratings to ensure safety and compliance with application standards.

- Layout Considerations: Proper PCB layout to minimize noise coupling and ensure reliable operation of the isolation barrier.

Incorporating the ACPL-M61L-500E in an isolated SPI communication setup not only protects the microcontroller and other sensitive components from electrical disturbances but also ensures robust data communication across different system parts.
