Fairchild Semiconductor 6N137WV

Part No.:: 6N137WV

Manufacturer:: Fairchild Semiconductor

Package:: 8-DIP (0.400, 10.16mm)

Datasheet:: 6N137WV.pdf

Description:: LOGIC IC OUTPUT OPTOCOUPLER

In Stock:: 2714

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

6N137WV Specifications

Packaging:
Bulk
Series:
-
ProductStatus:
Obsolete
NumberofChannels:
1
Inputs-Side1/Side2:
1/0
Voltage-Isolation:
2500Vrms
CommonModeTransientImmunity(Min):
10kV/µs (Typ)
InputType:
DC
OutputType:
Open Collector
Current-Output/Channel:
50 mA
DataRate:
10Mbps
PropagationDelaytpLH/tpHL(Max):
75ns, 75ns
Rise/FallTime(Typ):
50ns, 12ns
Voltage-Forward(Vf)(Typ):
1.4V
Current-DCForward(If)(Max):
50mA
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Through Hole

6N137WV this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 6N137WV price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 6N137WV to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

6N137WV information

Views：

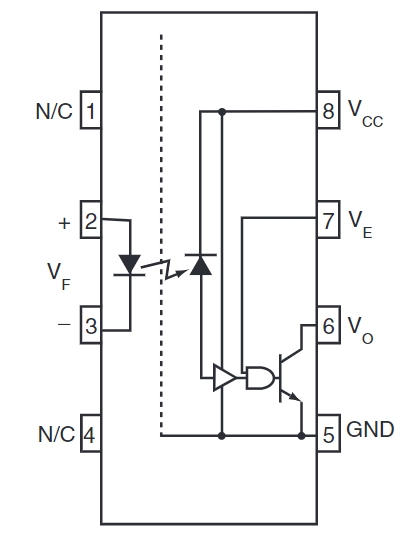

6N137WV Typical application Circuitry

6N137WV

The 6N137WV is recognized as a high-speed optocoupler, which facilitates swift data transmission whilst ensuring a robust electrical isolation between its input and output domains.

Characteristics of 6N137WV:

1. Rapid Speed:

The 6N137WV is constructed for high-speed data transfer, aptly suiting environments demanding quick signal transitions.

2. Solid Electrical Isolation:

With the 6N137WV, there's a significant boundary between input and output. This separation ensures that the respective domains remain free from interfering with each other.

3. Minimal Propagation Delay:

Signals conveyed through 6N137WV experience only a minuscule delay, preserving the integrity of real-time operations.

4. Totem Pole Output:

This aspect of the 6N137WV makes it compatible with numerous digital devices, encompassing a range from logic gates to advanced processors.

Potential Applications:

One can spot 6N137WV in roles that include isolating digital logic systems, offering interfaces for power electronics, and mediating data communication between microcontrollers and sophisticated computers.

Sample Application: Facilitating Communication Between a Microcontroller and a Computer:

1. Powering Up:

- Pin 8 (VCC): Link this to the +5V power source on the computer side.

- Pin 5 (GND): Connect to the system ground.

2. Setting Up the Data Input:

- Pin 2 (Anode): Interface with the UART-Tx line of the microcontroller. A series resistor is crucial here for current regulation.

- Pin 3 (Cathode): Connect directly to the ground of the microcontroller.

3. Formulating the Data Output:

- Pin 6 (VO): This is where the UART-Rx of the computer will connect.

- Pin 7 (VE): Generally grounded but can also be utilized as an enable pin in specialized applications.

4. Feedback Mechanism:

- Integrate a pull-up resistor between Pin 6 (VO) and Pin 8 (VCC), thereby ensuring a consistent high-level output signal.

5. Isolation Assurance:

- The 6N137WV makes sure that there's no cross-talk or interference between the microcontroller and the computer.

Design Considerations:

- Determining Input Resistor: The resistance linked with Pin 2 (Anode) needs to be aptly chosen. This directly influences the longevity and performance of the optocoupler's internal LED.

- Decoupling Capacitors: It's a good design measure to position a capacitor between Pin 8 (VCC) and Pin 5 (GND). This helps in minimizing potential noise.

- Placement of the Optocoupler: Try positioning the 6N137WV closer to either the signal's origin or its destination to reduce interference risks.

To encapsulate, the 6N137WV shines in its role as a dependable bridge for transferring digital signals across electrically isolated territories. Proper incorporation can augment both system efficiency and lifespan.
