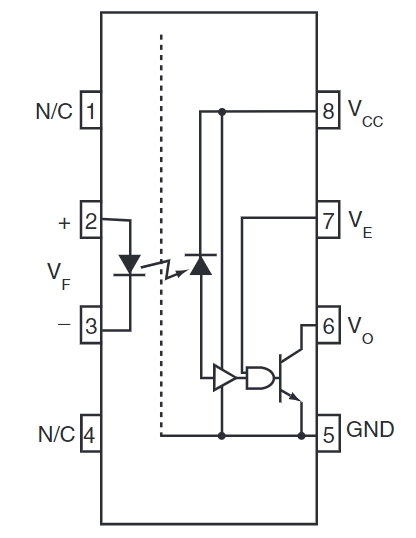

ON Semiconductor 6N137SDV

Part No.:: 6N137SDV

Manufacturer:: ON Semiconductor

Package:: 8-SMD, Gull Wing

Datasheet:: 6N137SDV.pdf

Description:: OPTOISO 2.5KV 1CH OPEN COLL 8SMD

In Stock:: 2021

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

6N137SDV Specifications

Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Obsolete
NumberofChannels:
1
Inputs-Side1/Side2:
1/0
Voltage-Isolation:
2500Vrms
CommonModeTransientImmunity(Min):
10kV/µs (Typ)
InputType:
DC
OutputType:
Open Collector
Current-Output/Channel:
50 mA
DataRate:
10Mbps
PropagationDelaytpLH/tpHL(Max):
75ns, 75ns
Rise/FallTime(Typ):
50ns, 12ns
Voltage-Forward(Vf)(Typ):
1.4V
Current-DCForward(If)(Max):
50mA
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

6N137SDV this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 6N137SDV price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 6N137SDV to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

6N137SDV information

Views：

6N137SDV Typical application Circuitry

6N137SDV

The 6N137SDV is a renowned high-speed optocoupler, exemplifying the synergy of rapid signal transmission with the robust separation of its input and output sides, ensuring that electrical interference doesn't perturb the sanctity of the transmitted signals.

Key Attributes of 6N137SDV:

1. High-Speed Transmission:

The essence of the 6N137SDV lies in its alacrity. This optocoupler operates at a breakneck speed, setting it apart from its peers.

2. Electrical Insulation:

Beneath the hood of the 6N137SDV is its capability to fortify its input from the output, ensuring electrical disturbances remain at bay.

3. Minimal Propagation Delay:

The 6N137SDV ensures rapid and reliable signal translation, rendering it invaluable in real-time application scenarios.

4. Totem-Pole Output Configuration:

The architecture of 6N137SDV enhances its adaptability, making it congruous with a broad spectrum of digital interfaces.

Potential Application Areas:

The versatility of 6N137SDV is manifest in its myriad applications: from shielding digital communication pathways, choreographing power electronics interplay, to bridging microcontrollers with personal computers.

Illustrative Circuit: Microcontroller to PC Communication:

1. Power Source:

- Pin 8 (VCC): Harness this to the computer's +5V domain.

- Pin 5 (GND): This should be interconnected with the system's common ground.

2. Signal Ingress:

- Pin 2 (Anode): Couple this with the microcontroller's UART-Tx pin. Intersperse a resistor for current fine-tuning.

- Pin 3 (Cathode): Ground this directly or connect it to a microcontroller's low output.

3. Signal Egress:

- Pin 6 (VO): Route this to the computer's UART-Rx terminal.

- Pin 7 (VE): A typical grounding will suffice, but it retains the versatility to be rerouted based on specific nuances.

4. Feedback Mechanism:

- Splice a pull-up resistor between Pin 6 (VO) and Pin 8 (VCC). This underpins the signal's high state stability.

5. Electrical Isolation Facet:

- Entrust the 6N137SDV with the quintessential role of isolating the microcontroller from the PC, safeguarding both.

Circuitry Considerations:

- Input Side Resistance: Determining the optimal resistor value for Pin 2 (Anode) impacts both the LED's operational efficiency and longevity.

- Noise Countermeasures: A judiciously chosen capacitor between Pin 8 (VCC) and Pin 5 (GND) can negate ambient noise.

- Spatial Strategy: Proximity matters. Nestling the 6N137SDV close to the signal's genesis or termination minimizes potential interference.

In sum, the 6N137SDV is an indispensable asset for precision signal transmission endeavors. Its astute incorporation magnifies system resilience and ensures signal sanctity.
