onsemi 6N137M

Part No.:: 6N137M

Manufacturer:: onsemi

Package:: 8-DIP (0.300, 7.62mm)

Datasheet:: 6N137M.pdf

Description:: OPTOISO 5KV 1CH OPEN COLL 8DIP

In Stock:: 3174

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

6N137M this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 6N137M price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 6N137M to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

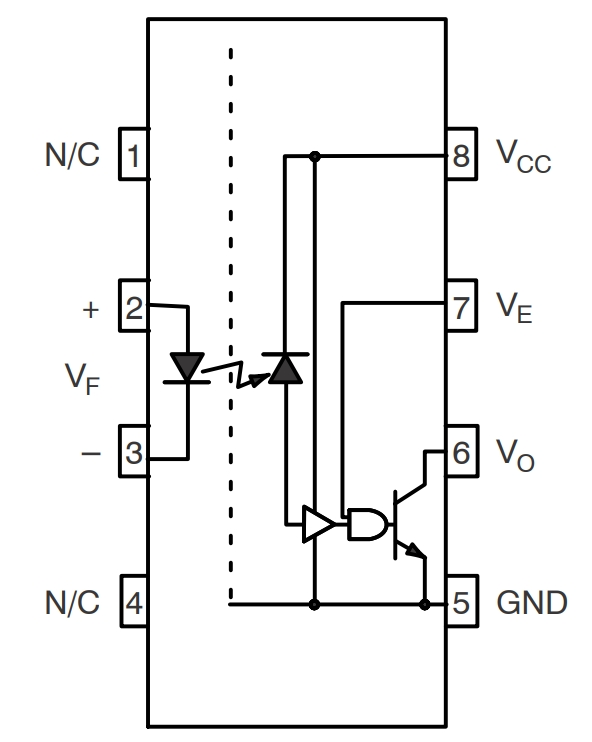

6N137M Typical application Circuitry

6N137M

The 6N137M is an advanced version of the 6N137 high-speed optocoupler, optimized for specific applications where high-speed digital signal isolation is required.

Features of 6N137M:

- High-Speed Data Transmission: The 6N137M is capable of achieving data rates up to 10 MBit/s.

- TTL Compatible: It interfaces seamlessly with most digital systems.

- Low Input Current: Ensures minimal power consumption on the driving side.

- Enhanced Noise Immunity: Improved performance under noisy conditions.

Application Scenarios:

The 6N137M finds its uses in:

- Digital Signal Isolation: It helps in isolating different digital parts of a circuit.

- Telecommunication Interfaces: Due to its high-speed nature.

- Ground Loop Elimination: Especially in complex systems where multiple grounds can introduce noise.

- Computer Peripherals: For isolating data lines.

Specific Application – SPI Communication Isolation:

Imagine isolating an SPI communication between a microcontroller and a high-speed sensor.

1. Input Side:

- V_CC1 (Pin 8): Connect to the microcontroller's 5V or 3.3V supply, depending on the microcontroller's logic levels.

- GND1 (Pin 5): Connect to the microcontroller's ground.

- Anode (Pin 2): Connect to a current-limiting resistor. The other side of the resistor connects to the microcontroller's MOSI pin.

- Cathode (Pin 3): Connect to the microcontroller's ground.

2. Output Side:

- V_CC2 (Pin 8): Connect to the sensor's 5V or 3.3V supply.

- GND2 (Pin 4): Connect to the sensor's ground.

- Output (Pin 7): Connect to the sensor's MISO pin or data input.

- V_O (Pin 6): Connect to the sensor's supply voltage for logic '1' level.

3. Strobe Control:

- Enable (Pin 1): To keep the 6N137M output always active, tie this pin to GND2 (Pin 4). However, if dynamic control over the output is needed, this can be interfaced with a GPIO from the microcontroller.

Design Considerations:

- Isolation: Ensure that the input and output grounds (GND1 and GND2) remain isolated to benefit from the 6N137M's capabilities.

- Power Supplies: The 6N137M can work with different logic levels; however, ensure that V_CC1 and V_CC2 are correctly matched to their respective circuits.

- Speed Considerations: While the 6N137M is high-speed, ensure that both the microcontroller and the sensor can communicate at the desired rate without errors.

- Noise Immunity: Despite the 6N137M's improved noise immunity, always layout the PCB to minimize noise sources near the optocoupler.

In wrapping up, the 6N137M offers a reliable solution for isolating high-speed digital signals. When designing, one should always refer to the datasheet and adhere to recommended practices to get the best performance.

6N137M information

6N137M Specifications

Packaging:
Tube
Series:
-
ProductStatus:
Active
NumberofChannels:
1
Inputs-Side1/Side2:
1/0
Voltage-Isolation:
5000Vrms
CommonModeTransientImmunity(Min):
10kV/µs (Typ)
InputType:
DC
OutputType:
Open Collector
Current-Output/Channel:
50 mA
DataRate:
10Mbps
PropagationDelaytpLH/tpHL(Max):
75ns, 75ns
Rise/FallTime(Typ):
30ns, 10ns
Voltage-Forward(Vf)(Typ):
1.45V
Current-DCForward(If)(Max):
50mA
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 100°C
MountingType:
Through Hole
