Toshiba Semiconductor and Storage 6N137F

Part No.:: 6N137F

Manufacturer:: Toshiba Semiconductor and Storage

Package:: 8-DIP (0.300, 7.62mm)

Datasheet:: 6N137F.pdf

Description:: OPTOISO 2.5KV 1CH OPEN COLL 8DIP

In Stock:: 3137

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

6N137F Specifications

Packaging:
Tube
Series:
-
ProductStatus:
Active
NumberofChannels:
1
Inputs-Side1/Side2:
1/0
Voltage-Isolation:
2500Vrms
CommonModeTransientImmunity(Min):
200V/µs, 500V/µs (Typ)
InputType:
DC
OutputType:
Open Collector
Current-Output/Channel:
50 mA
DataRate:
10MBd
PropagationDelaytpLH/tpHL(Max):
75ns, 75ns
Rise/FallTime(Typ):
30ns, 30ns
Voltage-Forward(Vf)(Typ):
1.65V
Current-DCForward(If)(Max):
20mA
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
0°C ~ 70°C
MountingType:
Through Hole

6N137F this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 6N137F price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 6N137F to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

6N137F information

Views：

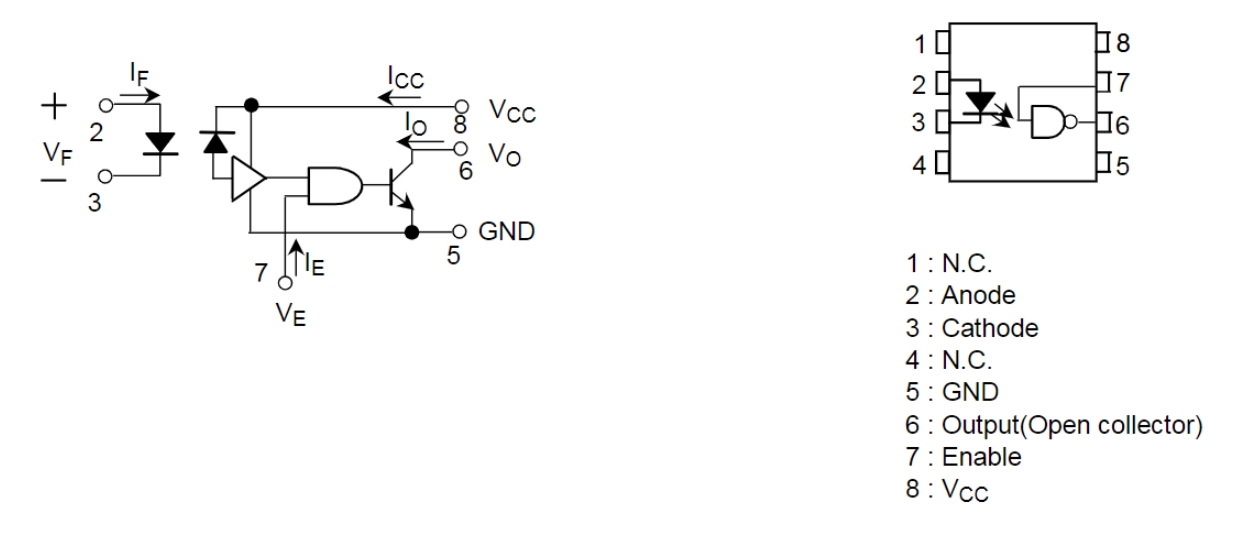

6N137F Typical application Circuitry

6N137F

The 6N137F stands tall as a high-speed optocoupler. Embedded within its compact form is a powerful mechanism that delivers swift signal transmission, all the while offering an insulating barrier to guarantee that both input and output sections are safe from electrical noise and interference.

Features of 6N137F:

1. Speed:

It's no hyperbole to label the 6N137F as fast. The speed at which it operates differentiates it from other optocouplers, making it a top-tier choice for applications demanding prompt signal delivery.

2. Electrical Isolation:

Within the confines of the 6N137F, a formidable barrier exists that ensures a complete electrical disconnection between the input and the output.

3. Low Propagation Delay:

6N137F pledges quick and dependable signal communication, a characteristic especially pivotal in real-time operations.

4. Totem-Pole Output:

With its structured totem-pole output, the 6N137F promises compatibility with a range of digital interfaces, opening doors to numerous applications.

Applications:

From playing the protective guardian in digital signal transmission to being the bridge between microcontrollers and intricate systems like PLCs, the 6N137F has it covered.

Example Circuit: Isolated SPI Communication:

1. Power Arrangement:

- Pin 8 (VCC): This pin finds its partner in the +5V rail.

- Pin 5 (GND): Connect this unassumingly to the ground.

2. Input Connection:

- Pin 2 (Anode): Link this up with the SPI Master's MOSI output, making sure you intersperse the right current-limiting resistor.

- Pin 3 (Cathode): Ground this to ensure the LED inside the optocoupler functions seamlessly.

3. Output Link:

- Pin 6 (VO): This reaches out to the SPI Slave's MOSI input.

- Pin 7 (VE): A simple ground connection suffices.

4. Stabilizing The Output:

- A pull-up resistor between Pin 6 (VO) and Pin 8 (VCC) ensures that the signal doesn't waver and remains steadfast in its high state.

5. Optical Isolation:

- The primary function of 6N137F in this setup is to ensure that the SPI Master and Slave remain electrically isolated, thereby safeguarding both units.

Design Considerations:

- Resistor Values: The resistor that's paired with Pin 2 (Anode) will determine the longevity and efficiency of the optocoupler's LED.

- Bypass Capacitors: Placing a capacitor between Pin 8 (VCC) and Pin 5 (GND) can be your shield against noise.

- Placement: Locating the 6N137F nearer to the source or destination of a signal will minimize interference possibilities.

In a nutshell, the 6N137F is the knight in shining armor for systems in need of rapid yet safe signal transmission. It's a linchpin that boosts system integrity and ensures fidelity in communication.
