Name: 6N137-560
Brand: Broadcom Limited
SKU: 6N137-560
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Broadcom Limited 6N137-560

Part No.:: 6N137-560

Manufacturer:: Broadcom Limited

Package:: 8-SMD, Gull Wing

Datasheet:: 6N137-560.pdf

Description:: OPTOCOUPLER(10MBD) T/R+VDE

In Stock:: 2946

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

6N137-560 Specifications

Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
NumberofChannels:
1
Inputs-Side1/Side2:
1/0
Voltage-Isolation:
3750Vrms
CommonModeTransientImmunity(Min):
1kV/µs
InputType:
DC
OutputType:
Open Collector, Schottky Clamped
Current-Output/Channel:
50 mA
DataRate:
10MBd
PropagationDelaytpLH/tpHL(Max):
75ns, 75ns
Rise/FallTime(Typ):
24ns, 10ns
Voltage-Forward(Vf)(Typ):
1.8V (Max)
Current-DCForward(If)(Max):
20mA
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

6N137-560 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 6N137-560 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 6N137-560 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

6N137-560 information

Views：

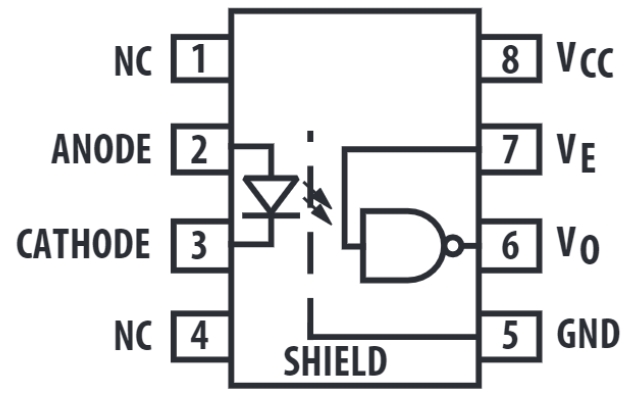

6N137-560 Typical application Circuitry

6N137-560

The 6N137-560 is a high-speed optocoupler, designed for use in applications that require the transfer of digital signals while preserving the integrity and isolating the input and output circuits.

Functionality and Features:

- Electrical Isolation: The primary purpose of the 6N137-560 is to achieve electrical isolation, enabling the separation of circuits to avoid electrical interference and potential damage.

- High Data Rate: With a high bandwidth, this optocoupler can support fast digital signal transmission.

- Low Propagation Delay: This makes the 6N137-560 suitable for applications that require real-time or near-real-time data transfer.

- Totem Pole Output: It's suitable for directly driving logic gates and other digital components.

Application Scenarios:

The 6N137-560 is versatile and finds use in numerous scenarios such as digital logic ground isolation, signal isolation in power electronics, interfaces between microcontrollers, and digital communication systems.

Application Example: Interfacing Two Microcontrollers with Different Ground Potentials:

1. Powering the Optocoupler:

- Pin 8 (VCC): Connect to a positive power source, generally around +5V.

- Pin 5 (GND): Tie to the system's ground on the output side.

2. Input Side Connection:

- Pin 2 (Anode): Attach to the GPIO output of the first microcontroller through a series resistor to limit current.

- Pin 3 (Cathode): Connect to the first microcontroller's ground.

3. Output Side Connection:

- Pin 6 (VO): This acts as the output and would be connected to an input GPIO of the second microcontroller.

- Pin 7 (VE): Typically grounded on the output side but can serve as an enable for the optocoupler.

4. Feedback Mechanism:

- It's recommended to have a pull-up resistor between Pin 6 (VO) and Pin 8 (VCC) to establish clear high-level output voltages.

5. Isolation Assurance:

- The grounds of the two microcontrollers remain isolated due to the intrinsic isolation property of the 6N137-560.

Design Points to Ponder:

1. Input Resistor Selection: A series resistor with Pin 2 (Anode) is imperative. It limits the current to protect the internal LED from excess currents.

2. Pull-Up Resistor: The choice of pull-up resistor at Pin 6 (VO) can impact output voltage levels and signal integrity.

3. Optocoupler Placement: For best results, keep the 6N137-560 close to the signal source or destination to minimize interference.

4. Bypass Capacitors: Like many digital devices, a decoupling capacitor between Pin 8 (VCC) and Pin 5 (GND) can be beneficial to filter noise.

In summary, the 6N137-560 is a specialized component aimed at ensuring safe and efficient signal transfer across isolated domains. Proper considerations in design ensure optimal performance and longevity of the system it's employed in.
