Broadcom Limited 6N137#520

Part No.:: 6N137#520

Manufacturer:: Broadcom Limited

Package:: 8-SMD, Gull Wing

Datasheet:: 6N137#520.pdf

Description:: OPTOISO 5KV 1CH OPN COLL 8DIP GW

In Stock:: 2570

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

6N137#520 Specifications

Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
NumberofChannels:
1
Inputs-Side1/Side2:
1/0
Voltage-Isolation:
5000Vrms
CommonModeTransientImmunity(Min):
1kV/µs
InputType:
DC
OutputType:
Open Collector, Schottky Clamped
Current-Output/Channel:
50 mA
DataRate:
10MBd
PropagationDelaytpLH/tpHL(Max):
75ns, 75ns
Rise/FallTime(Typ):
24ns, 10ns
Voltage-Forward(Vf)(Typ):
1.5V
Current-DCForward(If)(Max):
20mA
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

6N137#520 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 6N137#520 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 6N137#520 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

6N137#520 information

Views：

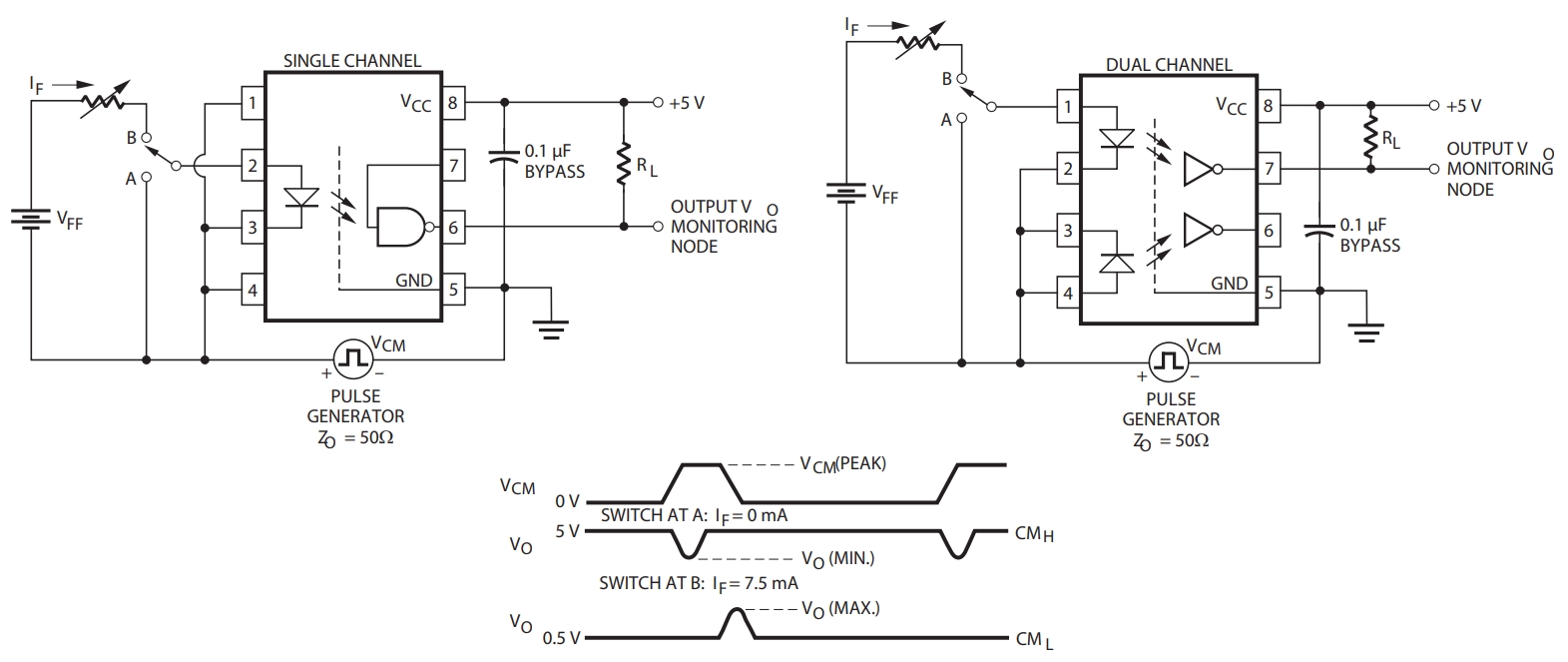

6N137#520 Typical application Circuitry

6N137 520

The 6N137#520 serves as a high-speed optocoupler, tailored to meet the demands of applications requiring both swift data transfer and notable electrical isolation between its input and output segments.

6N137#520 Features:

1. High-Speed Operation: Integral to its core function, the 6N137#520 delivers speed, being able to operate at high data rates seamlessly.

2. Electrical Isolation: It ensures that the input and output domains remain separate, thus negating any electrical interference between the two.

3. Low Propagation Delay: Signals routed through the 6N137#520 encounter minimal lag, keeping real-time operations fluid.

4. Totem Pole Output Design: This feature renders the 6N137#520 adept at connecting directly with various digital equipment, including logic gates.

Utilization Scenarios:

The 6N137#520 can be spotted in applications ranging from isolating digital logic grounds, interfacing with power electronics, to bridging data between microcontrollers and computers.

Application Framework: Microcontroller and PC Communication:

1. Power Initialization:

- Pin 8 (VCC): Link this to the +5V power source.

- Pin 5 (GND): Secure this pin to the ground, specifically on the computer side.

2. Data Input Setup:

- Pin 2 (Anode): This gets interfaced with a microcontroller's UART-Tx line. Always employ a current-limiting resistor in tandem.

- Pin 3 (Cathode): On the microcontroller end, this pin meets the ground.

3. Data Output Formation:

- Pin 6 (VO): This vital pin finds its mate in the UART-Rx terminal of the computer.

- Pin 7 (VE): Typically grounded, but it can assume the role of an enable pin for the optocoupler in certain configurations.

4. Feedback Channel:

- Introduce a pull-up resistor between Pin 6 (VO) and Pin 8 (VCC). This ensures a distinct high-level output voltage.

5. Achieving Isolation:

- The 6N137#520 guarantees that the microcontroller's and PC's grounds stay separate, precluding potential interference.

Circuit Design Essentials:

- Input Resistor Determination: The resistor value for Pin 2 (Anode) demands judicious selection. This maintains the LED's life inside the 6N137#520.

- Pull-Up Resistor at the Output: The resistance value between Pin 6 (VO) and Pin 8 (VCC) can significantly influence signal clarity.

- Placement Logic: Aim to position the 6N137#520 close to the signal source or its destination to reduce potential interference.

- Capacitive Decoupling: A capacitor betwixt Pin 8 (VCC) and Pin 5 (GND) can filter out potential noise.

In summation, the 6N137#520 stands as a beacon for accurate digital signal transfer across isolated realms. A strategic integration of this chip can not only promise optimal performance but also extend the longevity of the entire system.
