Texas Instruments UCC27525DSDR

Part No.:: UCC27525DSDR

Manufacturer:: Texas Instruments

Package:: 8-WDFN Exposed Pad

Datasheet:: UCC27525DSDR.pdf

Description:: IC GATE DRVR LOW-SIDE 8SON

In Stock:: 3309

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

UCC27525DSDR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
DrivenConfiguration:
Low-Side
ChannelType:
Independent
NumberofDrivers:
2
GateType:
IGBT, N-Channel MOSFET
Voltage-Supply:
4.5V ~ 18V
LogicVoltage-VILVIH:
1V, 2.3V
Current-PeakOutput(SourceSink):
5A, 5A
InputType:
Inverting, Non-Inverting
HighSideVoltage-Max(Bootstrap):
-
Rise/FallTime(Typ):
7ns, 6ns
OperatingTemperature:
-40°C ~ 140°C (TJ)
MountingType:
Surface Mount

UCC27525DSDR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including UCC27525DSDR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for UCC27525DSDR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

UCC27525DSDR information

Views：

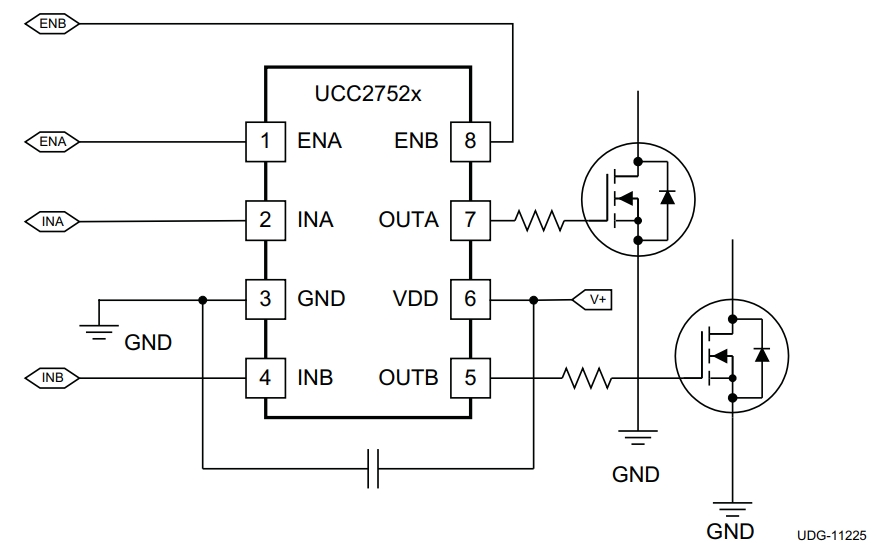

UCC27525DSDR Typical application Circuitry

UCC27525DSDR

The UCC27525DSDR is a dual-channel gate driver chip designed to drive power MOSFETs and IGBTs in a range of applications. It finds extensive applications in switch-mode power supplies, motor control circuits, and inverters.

Important characteristics:

- Dual-channel output capable of up to 5A of peak output current.

- Broad supply voltage range: 4.5–18 V.

- Fast propagation delays and rise/fall times for high-frequency operation.

- Independent input and output channels for flexible control.

Application Scenario: Synchronous Buck Converter:

1. Input Connections: Connect the PWM control signals to the input pins (IN1 to pin 2 and IN2 to pin 6) for controlling the high-side and low-side MOSFETs.

2. Output Connections: Connect the outputs (OUT1 to pin 1 and OUT2 to pin 7) to the gates of the high-side and low-side MOSFETs in the synchronous buck converter.

3. Bootstrap Circuit: Implement a bootstrap circuit with a diode and capacitor connected between the VDD (pin 8), HB (pin 3), and the SW node to provide a floating supply for the high-side driver.

4. Power Supply: Apply a supply voltage within the specified range to VDD (pin 8) and connect GND (pin 4) to the system ground.

5. Enable Function: Utilize the UCC27525DSDR enable pin (EN, pin 5) to enable or disable the driver outputs. Tie it high for normal operation or low to disable the outputs.

Design Considerations:

- Dead Time Control: To avoid shoot-through, appropriately control the dead time between high-side and low-side drivers.

- Decoupling Capacitors: To ensure a stable supply voltage, place decoupling capacitors near the VDD and GND pins.

- Thermal Management: Pay attention to heat dissipation for the UCC27525DSDR, especially in high-frequency applications.

- Layout Considerations: Minimize the loop area between the driver, bootstrap circuit, and MOSFETs to reduce parasitic inductances.

In this synchronous buck converter application, the UCC27525DSDR efficiently drives the high-side and low-side MOSFETs, enabling precise control of power conversion. The design considerations highlight the importance of dead time control, supply voltage stability, thermal management, and layout optimization when using the UCC27525DSDR in power electronics applications.
