ON Semiconductor FAN7888MX

Part No.:: FAN7888MX

Manufacturer:: ON Semiconductor

Package:: 20-SOIC (0.295, 7.50mm Width)

Datasheet:: FAN7888MX.pdf

Description:: IC GATE DRVR HALF-BRIDGE 20SOIC

In Stock:: 3492

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

FAN7888MX this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including FAN7888MX price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for FAN7888MX to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

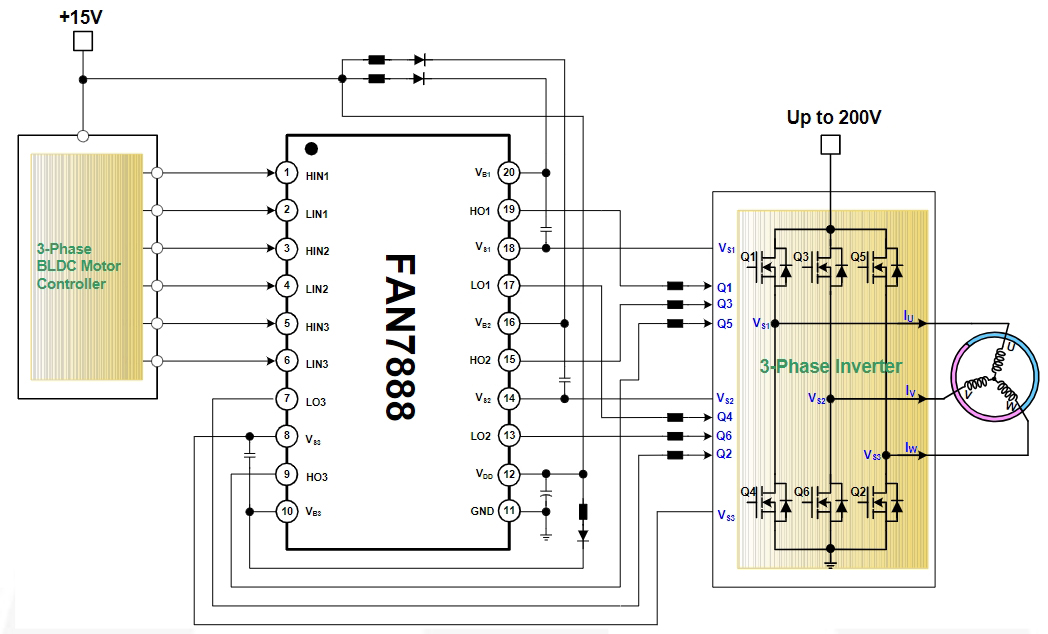

FAN7888MX Typical application Circuitry

FAN7888MX

The FAN7888MX is a monolithic three half-bridge gate-drive integrated circuit (IC) primarily designed for high-voltage, high-speed driving of MOSFETs and IGBTs, capable of operating up to +200V.

1. High Voltage and Speed: It's designed for high-voltage and high-speed applications, capable of operating with a floating channel for bootstrap operation up to +200V.

2. Current Driving Capability: The FAN7888MX typically offers 350mA/650mA sourcing/sinking current driving capability for all its channels.

3. Gate Driver: This IC is a 3 half-bridge gate driver, providing efficient control for half-bridge configurations in motor drives.

4. Input Logic Compatibility: It is compatible with 3.3V and 5V input logic, offering flexibility in interfacing with different control logic levels.

5. Built-in Protection Features: It has under-voltage lockout (UVLO) features for every channel, a common mode dv/dt noise canceling circuit, and an integrated shoot-through prevention circuit for every channel.

In terms of a specific application scenario, let's consider its use in a 3-phase motor inverter system. When designing a circuit with the FAN7888MX for this application, you would need to consider the following:

- Bootstrap Capacitors: Connect bootstrap capacitors to the respective bootstrap pins of the FAN7888MX to provide the necessary charge for the high-side gate drivers.

- MOSFET/IGBT Selection: Select MOSFETs or IGBTs that are suitable for managing the motor's voltage and current requirements.

- Input Signal: Ensure that the input signal levels are compatible with the FAN7888MX (3.3V or 5V logic).

- Power Supply: Design the power supply to meet the IC's requirements, ensuring that it can provide stable voltage under varying load conditions.

- Thermal Management: Implement proper thermal management strategies, considering the IC's power dissipation and operating temperature range.

- Protection Circuits: Leverage the IC's built-in protection features and consider adding external protection circuits if needed, for over-current, over-voltage, and thermal protection.

Remember, when designing any circuit, it's crucial to refer to the specific datasheet of the component for detailed pin configurations, electrical characteristics, and recommended operating conditions. For detailed circuit design and specific pin connection information, you should consult the FAN7888MX datasheet and application notes provided by the manufacturer.

FAN7888MX information

FAN7888MX Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
DrivenConfiguration:
Half-Bridge
ChannelType:
3-Phase
NumberofDrivers:
6
GateType:
IGBT, N-Channel MOSFET
Voltage-Supply:
10V ~ 20V
LogicVoltage-VILVIH:
1V, 2.5V
Current-PeakOutput(SourceSink):
350mA, 650mA
InputType:
Non-Inverting
HighSideVoltage-Max(Bootstrap):
200 V
Rise/FallTime(Typ):
50ns, 30ns
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount
