lmages are for reference only See Product Specifications

Texas Instruments UCC27525D

Part No.:: UCC27525D

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: UCC27525D.pdf

Description:: IC GATE DRVR LOW-SIDE 8SOIC

In Stock:: 207

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

UCC27525D Specifications

Packaging:
Tube
Series:
-
ProductStatus:
Active
DrivenConfiguration:
Low-Side
ChannelType:
Independent
NumberofDrivers:
2
GateType:
IGBT, N-Channel MOSFET
Voltage-Supply:
4.5V ~ 18V
LogicVoltage-VILVIH:
1V, 2.3V
Current-PeakOutput(SourceSink):
5A, 5A
InputType:
Inverting, Non-Inverting
HighSideVoltage-Max(Bootstrap):
-
Rise/FallTime(Typ):
7ns, 6ns
OperatingTemperature:
-40°C ~ 140°C (TJ)
MountingType:
Surface Mount

UCC27525D this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including UCC27525D price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for UCC27525D to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

UCC27525D information

Views：

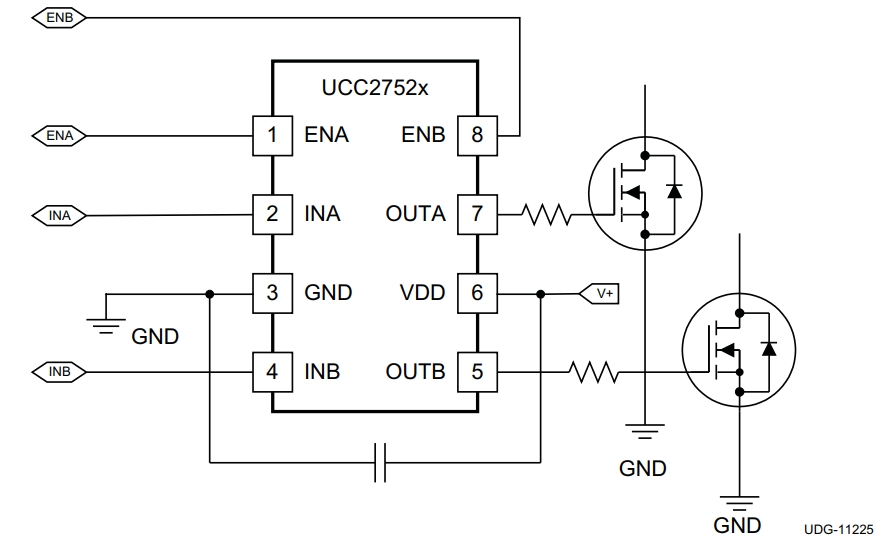

UCC27525D Typical application Circuitry

UCC27525D

The UCC27525D is a dual-channel gate driver chip designed to power IGBTs and MOSFETs in a range of applications. It is widely utilized in switch-mode power supplies, motor control circuits, and inverters.

Important characteristics:

- Dual-channel output capable of up to 5A of peak output current.

- Broad supply voltage range: 4.5–18 V.

- Fast propagation delays and rise/fall times for high-frequency operation.

- Independent input and output channels for flexible control.

Application Scenario: Half-Bridge Converter:

1. Input Connections: Connect the UCC27525D PWM control signals to the input pins (IN1 to pin 2 and IN2 to pin 6) for controlling the high-side and low-side MOSFETs.

2. Output Connections: Connect the outputs (OUT1 to pin 1 and OUT2 to pin 7) to the gates of the high-side and low-side MOSFETs in the half-bridge converter.

3. Bootstrap Circuit: Implement a bootstrap circuit with a diode and capacitor connected between VDD (pin 8), HB (pin 3), and the SW node to provide a floating supply for the high-side driver.

4. Power Supply: Apply a supply voltage within the specified range to VDD (pin 8) and connect GND (pin 4) to the system ground.

5. Enable Function: Use the enable pin (EN, pin 5) to enable or disable the driver outputs. Tie it high for normal operation or low to disable the outputs.

Considerations for Design:

- Modify the dead time between the high-side and low-side drivers (Dead Time Control) to prevent shoot-through.

- Position decoupling capacitors near the VDD and GND pins to ensure a steady supply voltage.

- Thermal Management: Consider heat dissipation for the UCC27525D, especially in high-frequency applications.

- Layout Considerations: Minimize the loop area between the driver, bootstrap circuit, and MOSFETs to reduce parasitic inductances.

In this half-bridge converter application, the UCC27525D effectively drives the high-side and low-side MOSFETs, enabling precise control of power conversion. The design considerations emphasize the importance of dead time control, supply voltage stability, thermal management, and layout optimization when using the UCC27525D in power electronics applications.
