Texas Instruments UCC27324DGNRG4

Part No.:: UCC27324DGNRG4

Manufacturer:: Texas Instruments

Package:: 8-TSSOP, 8-MSOP (0.118, 3.00mm Width) Exposed Pad

Datasheet:: UCC27324DGNRG4.pdf

Description:: IC GATE DRVR LOW-SIDE 8MSOP

In Stock:: 2861

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

UCC27324DGNRG4 Specifications

Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
DrivenConfiguration:
Low-Side
ChannelType:
Independent
NumberofDrivers:
2
GateType:
N-Channel, P-Channel MOSFET
Voltage-Supply:
4.5V ~ 15V
LogicVoltage-VILVIH:
1V, 2V
Current-PeakOutput(SourceSink):
4A, 4A
InputType:
Non-Inverting
HighSideVoltage-Max(Bootstrap):
-
Rise/FallTime(Typ):
20ns, 15ns
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

UCC27324DGNRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including UCC27324DGNRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for UCC27324DGNRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

UCC27324DGNRG4 information

Views：

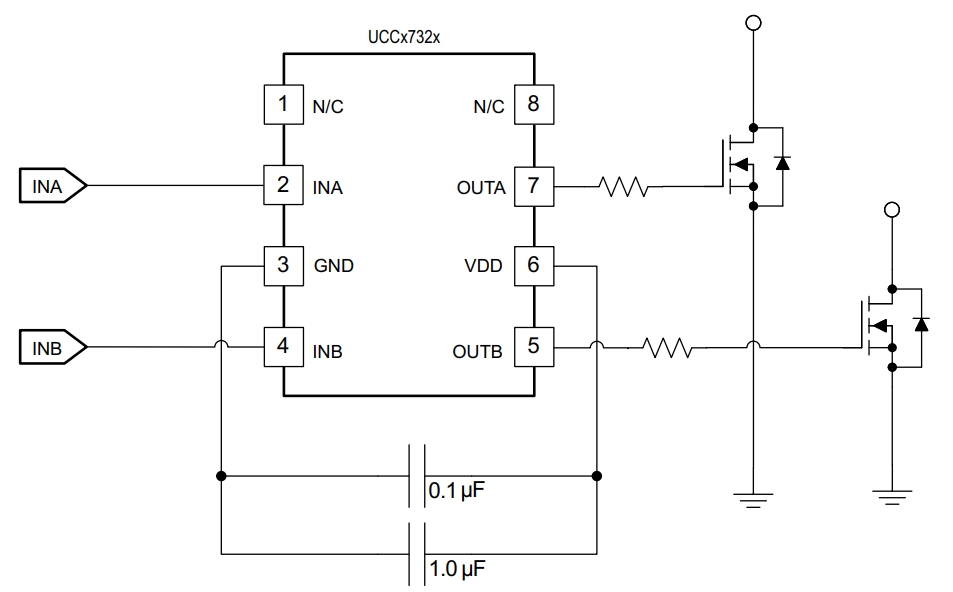

UCC27324DGNRG4 Typical application Circuitry

UCC27324DGNRG4

The UCC27324DGNRG4 is an integrated circuit (IC) that functions as a high-speed, dual-channel power MOSFET driver. It is specifically designed to drive power MOSFETs and IGBTs efficiently in various electronic applications.

Functionality of UCC27324DGNRG4

This IC operates as a power driver with two independent channels, capable of providing high peak current and fast switching for power MOSFETs or IGBTs, essential in high-speed power switching applications.

Application Scenarios

The UCC27324DGNRG4 is widely used in DC-DC converters, motor control circuits, power inverters, and other power electronics where rapid and efficient switching of power semiconductors is critical.

Key Parameter Features

- Dual Independent Output Channels: Facilitates separate control of two MOSFETs or IGBTs.

- High Peak Output Current: Delivers the necessary current for fast switching.

- Wide Supply Voltage Range: Adaptable to various power supply needs.

- Fast Propagation Delays: Ensures minimal delay in switching transitions.

- Low Output Impedance: Provides efficient power delivery.

- High-Speed Operation: Suitable for high-frequency power switching.

- Input Logic Compatibility: Can interface with different control logic levels.

- Compact Package: Ideal for space-constrained electronic designs.

Circuit Connection Example: Motor Control Circuit

Using the UCC27324DGNRG4 in a motor control circuit involves the following key steps:

1. Power Supply Connection

- VCC Supply: Connect the power source to pin 8 (VDD) within the IC's operational voltage range.

2. Grounding

- Circuit Ground: Attach pin 5 (GND) to the system ground.

3. High-Side Gate Driver

- High-Side MOSFET Drive: Connect pin 6 (OUTA) to the gate of the high-side MOSFET in the H-bridge of the motor controller.

4. Low-Side Gate Driver

- Low-Side MOSFET Drive: Link pin 2 (OUTB) to the gate of the low-side MOSFET in the H-bridge.

5. Input Signal Connection

- High-Side Input Signal: Attach the control signal for the high-side MOSFET to pin 7 (INA).

- Low-Side Input Signal: Connect the control signal for the low-side MOSFET to pin 3 (INB).

6. Decoupling Capacitors

- Voltage Stabilization: Place a decoupling capacitor close to pin 8 (VDD) to ensure a stable supply voltage and minimize noise.

7. Thermal Management

- Heat Dissipation: Ensure proper heat sinking for the IC, particularly in high-power applications.

8. Input Logic Level

- Logic Compatibility: Ensure that the input logic levels (INA and INB) are compatible with the control signals from the microcontroller or PWM generator.

Design Considerations

When designing with the UCC27324DGNRG4, consider the power supply rating, input signal compatibility, drive current requirements, decoupling capacitors for voltage stabilization, thermal management, and the overall layout to minimize interference and ensure efficient switching.

In summary, the UCC27324DGNRG4 is a high-speed, dual-channel MOSFET driver IC, suitable for applications requiring rapid and efficient switching, such as motor control circuits. Its ability to provide high peak current and fast propagation delays, along with its dual independent channels, make it effective for driving power MOSFETs and IGBTs. Attention to power supply specifications, input logic levels, thermal considerations, and circuit layout is crucial for successful integration into power control applications.
