Texas Instruments TMCS1100A2QDRQ1

Part No.:: TMCS1100A2QDRQ1

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:

Description:: SENSOR CURRENT HALL EFFECT 8SOIC

In Stock:: 2667

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TMCS1100A2QDRQ1 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TMCS1100A2QDRQ1 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TMCS1100A2QDRQ1 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

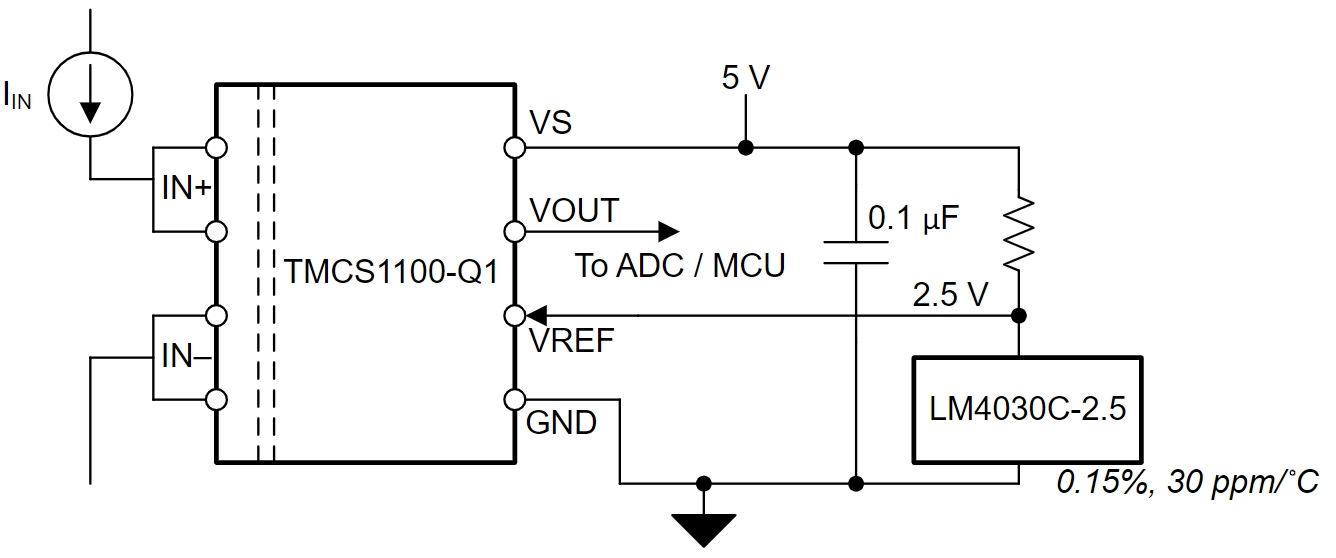

TMCS1100A2QDRQ1 Typical application Circuitry

TMCS1100A2QDRQ1

The TMCS1100A2QDRQ1 is a variant in the TMCS1100 series, which are high-precision, isolated current sensors from Texas Instruments. These sensors are renowned for their accuracy and reliability in measuring current without direct electrical contact, making them highly suitable for a variety of applications, including motor control, overcurrent protection, and power monitoring in automotive and industrial settings.

1. Supply Voltage Connection: The TMCS1100A2QDRQ1 requires a supply voltage connected to the VCC1 (Pin 8) and VCC2 (Pin 5) pins for its isolated domains. The ground connections for these domains are made to GND1 (Pin 7) and GND2 (Pin 4), respectively. It is crucial to provide a stable supply voltage to ensure accurate current measurement.

2. Current Input: The primary current to be measured flows through the IP+ (Pin 1) and IP- (Pin 2) pins. The TMCS1100A2QDRQ1 senses the magnetic field generated by this current, allowing for the current's non-invasive measurement. The path between IP+ and IP- should be designed to carry the current without significant voltage drop or heating.

3. Output Voltage: The output of the TMCS1100A2QDRQ1 is provided as a differential voltage between the VOUTP (Pin 6) and VOUTN (Pin 3) pins. This differential voltage is proportional to the current flowing through the IP+ and IP- pins, and it can be measured with respect to the isolated ground, GND2.

4. Filtering and Decoupling: To enhance measurement accuracy, it's recommended to use filtering capacitors at the VCC1 and VCC2 pins. Additionally, a bypass capacitor between VOUTP and VOUTN can be utilized to filter high-frequency noise, improving signal integrity.

5. Isolation: The TMCS1100A2QDRQ1 provides galvanic isolation between the high-current input side (IP+ and IP-) and the low-voltage output side (VOUTP and VOUTN). This isolation is crucial for safety in high-voltage applications and for breaking ground loops in complex systems.

By understanding and properly implementing these key connection points, the TMCS1100A2QDRQ1 can be effectively integrated into a circuit, providing accurate and reliable current measurement while ensuring the safety and integrity of the overall system.

TMCS1100A2QDRQ1 information

TMCS1100A2QDRQ1 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q100
ProductStatus:
Active
ForMeasuring:
AC/DC
SensorType:
Hall Effect
Current-Sensing:
-
NumberofChannels:
1
Output:
Ratiometric, Voltage
Sensitivity:
100mV/A
Frequency:
80kHz
Linearity:
±0.05%
Accuracy:
-
Voltage-Supply:
3V ~ 5.5V
ResponseTime:
6.5µs
Current-Supply(Max):
6mA
OperatingTemperature:
-40°C ~ 125°C (TA)
Polarization:
-
MountingType:
Surface Mount
