Allegro MicroSystems ACS722LLCTR-10AB-T

Part No.:: ACS722LLCTR-10AB-T

Manufacturer:: Allegro MicroSystems

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: ACS722LLCTR-10AB-T.pdf

Description:: SENSOR CURRENT HALL 10A AC/DC

In Stock:: 2070

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ACS722LLCTR-10AB-T Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
ForMeasuring:
AC/DC
SensorType:
Hall Effect, Open Loop
Current-Sensing:
10A
NumberofChannels:
1
Output:
Ratiometric, Voltage
Sensitivity:
132mV/A
Frequency:
DC ~ 80kHz
Linearity:
±1%
Accuracy:
±3%
Voltage-Supply:
3V ~ 3.6V
ResponseTime:
5µs
Current-Supply(Max):
12mA
OperatingTemperature:
-40°C ~ 150°C
Polarization:
Bidirectional
MountingType:
Surface Mount

ACS722LLCTR-10AB-T this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ACS722LLCTR-10AB-T price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ACS722LLCTR-10AB-T to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ACS722LLCTR-10AB-T information

Views：

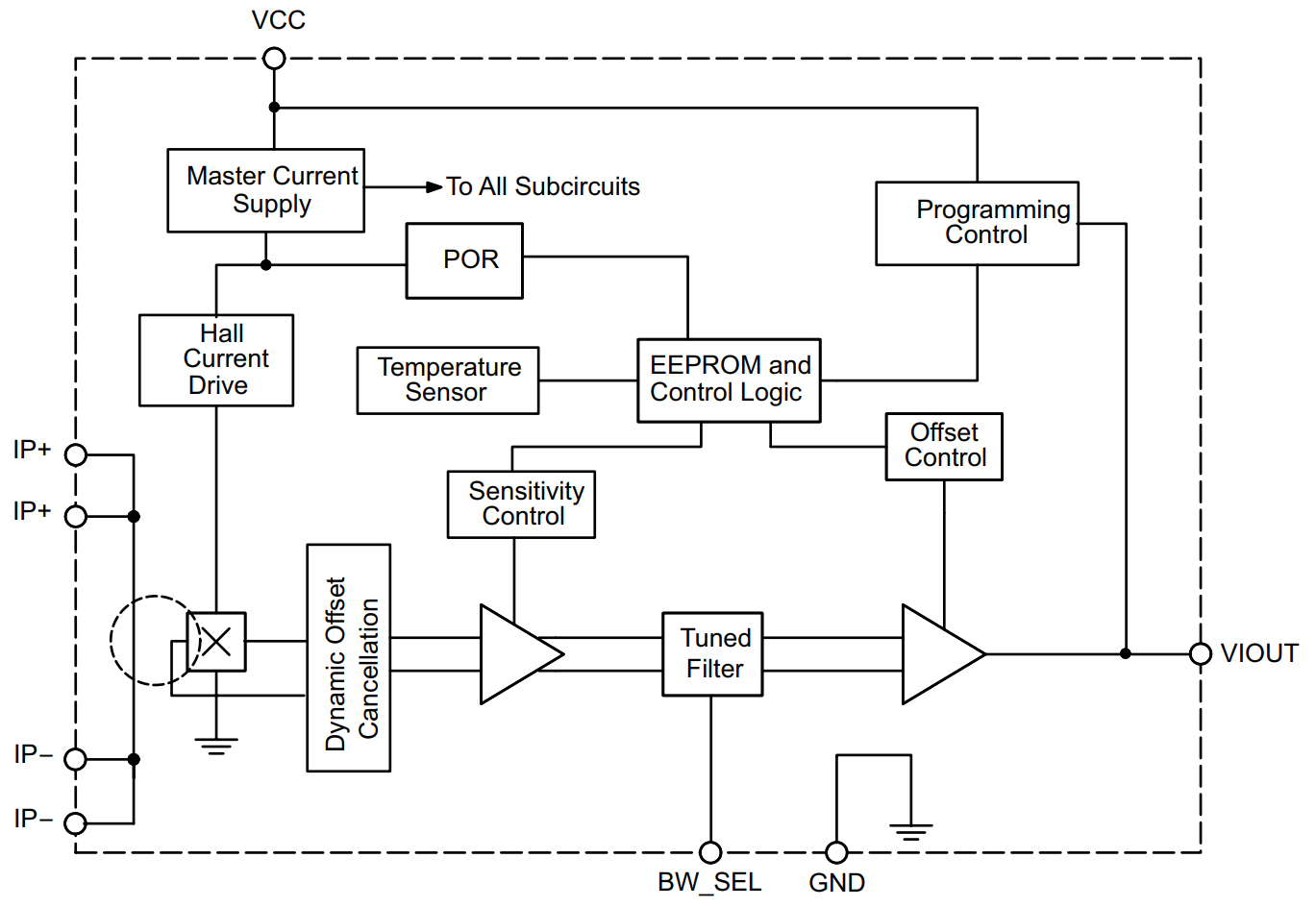

ACS722LLCTR-10AB-T Typical application Circuitry

ACS722LLCTR-10AB-T

The ACS722LLCTR-10AB-T is a state-of-the-art Hall effect-based linear current sensor IC, developed by Allegro Microsystems. Below you will find a comprehensive guide to making connections to this IC, with details extending down to its individual pins.

1. Power Supply Connections: To start, connect the VCC pin to your power supply, which should lie within the specified operating voltage range, usually around 3.3 to 5V. Connect your system's ground to the GND pin.

2. Current Flow Through Pins: The current which is to be sensed will flow through IP+ and IP- pins. Keep in mind, the direction of the current flow through these pins will determine the polarity of the output voltage.

3. Output Signal: The ACS722LLCTR-10AB-T delivers an analog voltage output via the ABOUT pin, which is proportional to the current flowing through the IP+ and IP- pins. This output can be further connected to an Analog-to-Digital Converter (ADC) for digital processing.

4. Filter Pin: The FILTER pin of the IC can be paired with an external capacitor to limit bandwidth and reduce output signal noise. The selection of the capacitor value should be based on the specific requirements of your application and guidelines from the data sheet.

5. Fault Pin: The FAULT pin of the ACS722LLCTR-10AB-T serves as an open-drain output.

This pin will go low if a fault condition, like an overcurrent event, is detected.This guide provides an essential framework for connecting the ACS722LLCTR-10AB-T, but your specific application might necessitate additional considerations. For instance, current sensing layout considerations are crucial to minimize the impact of unwanted magnetic fields that could affect the accuracy of the sensor.
