Allegro MicroSystems ACS713ELCTR-20A-T

Part No.:: ACS713ELCTR-20A-T

Manufacturer:: Allegro MicroSystems

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: ACS713ELCTR-20A-T.pdf

Description:: SENSOR CURRENT HALL 20A DC

In Stock:: 2594

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ACS713ELCTR-20A-T this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ACS713ELCTR-20A-T price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ACS713ELCTR-20A-T to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

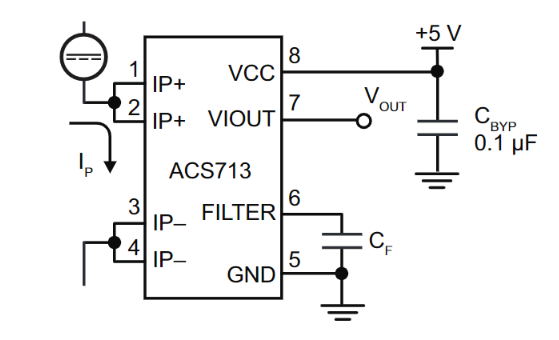

ACS713ELCTR-20A-T Typical application Circuitry Schematics

The ACS713ELCTR-20A-T is a Hall effect-based linear current sensor integrated circuit (IC) from Allegro MicroSystems. It's capable of accurately sensing AC or DC currents up to ±20A, providing a voltage output proportional to the current flowing through its internal conductor. Here's a basic layout for an application circuit using the ACS713ELCTR-20A-T:

1. Power Supply: Connect the VCC pin (Pin 8) to a 5V power supply, and the GND pin (Pin 5) to the ground. Always ensure that your power supply is stable and free from noise to maintain the accuracy of the ACS713ELCTR-20A-T.
2. Current Sensing: For current sensing, the current you wish to measure should be directed through the path of the IC. This means connecting the input (IP+) and output (IP-) pins (Pins 1 and 2) of the internal current conductor in series with your load.
3. Output Signal: The ACS713ELCTR-20A-T VIOUT pin (Pin 7) provides the output signal. This signal is a proportionate analog voltage to the detected current. This output can be read by connecting the VIOUT pin to an ADC (Analog-to-Digital Converter) or the analog input of a microcontroller.
4. Filtering: To reduce noise in the output signal, it's recommended to connect a bypass capacitor between the VCC and GND pins, as close to the device as possible. The recommended value is 0.1µF ceramic capacitor.
5. Fault Detection: Please note that the ACS713ELCTR-20A-T does not have any overcurrent or fault detection capabilities. You will need to monitor the VIOUT pin and compare it to the expected output voltage range to detect faults in your system.
As with all circuit designs, this is just a generalized configuration. Always refer to the manufacturer's datasheet for precise and comprehensive information. Depending on the requirements of your particular application, the precise layout and components required may change.

ACS713ELCTR-20A-T information

ACS713ELCTR-20A-T Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Not For New Designs
ForMeasuring:
DC
SensorType:
Hall Effect, Open Loop
Current-Sensing:
20A
NumberofChannels:
1
Output:
Ratiometric, Voltage
Sensitivity:
185mV/A
Frequency:
DC ~ 80kHz
Linearity:
±1.5%
Accuracy:
±1.5%
Voltage-Supply:
5V
ResponseTime:
5µs
Current-Supply(Max):
13mA
OperatingTemperature:
-40°C ~ 85°C
Polarization:
Unidirectional
MountingType:
Surface Mount
