Texas Instruments TCA9535PWR

Part No.:: TCA9535PWR

Manufacturer:: Texas Instruments

Package:: 24-TSSOP (0.173, 4.40mm Width)

Datasheet:: TCA9535PWR.pdf

Description:: IC I/O EXPANDER I2C 16B 24TSSOP

In Stock:: 237

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TCA9535PWR Specifications

Package/Case:
24-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
NumberofI/O:
16
Interface:
I²C, SMBus
InterruptOutput:
Yes
Features:
POR
OutputType:
Push-Pull
Current-OutputSource/Sink:
10mA, 25mA
ClockFrequency:
400 kHz
Voltage-Supply:
1.65V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

TCA9535PWR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TCA9535PWR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TCA9535PWR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TCA9535PWR information

Views：

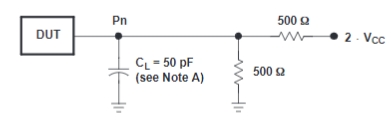

TCA9535PWR Typical application Circuitry

TCA9535PWR

The TCA9535PWR is a low-voltage 16-bit I²C and SMBus low-power I/O expander designed by Texas Instruments. This integrated circuit (IC) is specifically designed to provide general-purpose remote I/O expansion for most microcontroller families via the I²C interface.Here's a detailed description of the TCA9535PWR:

1. 16-Bit I/O Expander: The TCA9535PWR provides 16-bit parallel input/output (I/O) port expansion, which can be used to extend the I/O capabilities of a microcontroller or processor.

2. I²C and SMBus Interface: The IC communicates with the master device using the I²C serial interface or SMBus, allowing for easy integration with most microcontroller families.

3. Voltage Levels: It operates over a wide range of supply voltages from 1.65 V to 5.5 V, making it versatile for various applications.

4. Configurable I/Os: The 16 I/O ports can be individually configured as either inputs or outputs.

5. Interrupt Output: The TCA9535PWR features an interrupt output that can be configured to alert the microcontroller when there is a change in the input state, providing an efficient means of monitoring the inputs without constant polling.

6. Low Power Consumption: The IC is designed for low power consumption, making it suitable for battery-powered applications.

7. Polarity Inversion Register: The TCA9535PWR provides polarity inversion registers to configure the polarity of the input port data.

8. Software Reset: The device includes a software reset feature that initializes the registers to their default state.

9. Package: The TCA9535PWR is available in a TSSOp(Thin Shrink Small Outline Package) which is suitable for space-constrained applications.

10. Applications: This IC is ideal for applications requiring additional I/O lines, such as extending simple microcontroller units, portable devices, remote data acquisition, etc.

11. Datasheet: For detailed specifications, pin configurations, electrical characteristics, and application notes, it is recommended to consult the datasheet of the TCA9535PWR, which can be obtained from Texas Instruments' website or from authorized distributors.

In summary, the TCA9535PWR is a 16-bit I/O expander that provides additional I/O expansion via the I²C or SMBus interface and is designed for low power consumption, making it an ideal solution for extending the capabilities of a microcontroller in various applications.
