Texas Instruments PCA9554APW

Part No.:: PCA9554APW

Manufacturer:: Texas Instruments

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:: PCA9554APW.pdf

Description:: IC I/O EXPANDER I2C 8B 16TSSOP

In Stock:: 2002

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PCA9554APW Specifications

Package/Case:
16-TSSOP (0.173, 4.40mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Not For New Designs
NumberofI/O:
8
Interface:
I²C, SMBus
InterruptOutput:
Yes
Features:
POR
OutputType:
Push-Pull
Current-OutputSource/Sink:
10mA, 25mA
ClockFrequency:
400 kHz
Voltage-Supply:
2.3V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

PCA9554APW this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PCA9554APW price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PCA9554APW to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PCA9554APW information

Views：

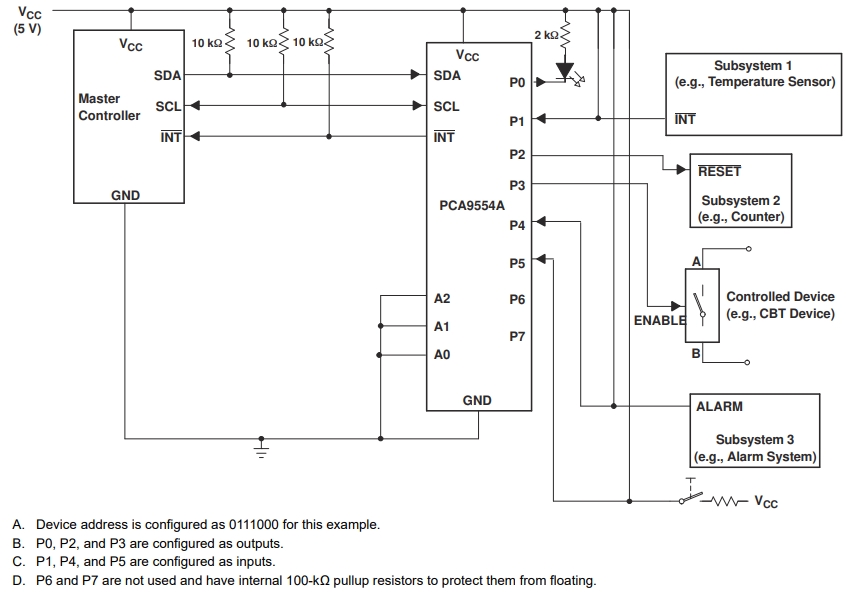

PCA9554APW Typical application Circuitry

PCA9554APW

The PCA9554APW is an 8-bit I²C-bus and SMBus I/O port with interrupt, primarily designed for providing additional input/output (I/O) lines to a microcontroller with I²C-bus interface.

Features of PCA9554APW

1. I/O Expansion: The PCA9554APW offers 8-bit I/O port expansion, allowing for an increase in the number of I/O ports available to a microcontroller.

2. Interrupt Output: It has an interrupt output, enabling the device to signal the microcontroller when input changes occur.

3. Communication Interface: Comes with an I²C-bus interface, ensuring easy integration with most microcontrollers or processors.

4. Configurable Polarity: Input polarity inversion register to invert the polarity of the input port data.

Application Scenario: Server Management System

In a server management system, the PCA9554APW can be used to monitor the status of various server components such as power supplies, fans, or temperature sensors. Here's a detailed connection guide for this application:

Circuit Connection Details

1. Power Supply (VDD - Pin 16, VSS - Pin 8):

- Chip Powering: Connect a stable power source to VDD (Pin 16) to power the PCA9554APW. Ground VSS (Pin 8) to complete the power circuit.

2. I/O Ports (P0-P7 - Pins 1-7, Pin 9):

- Component Status Monitoring: Connect server component indicators (like LED indicators of power supplies or fans) to the I/O ports (P0-P7). The design of the server management system and the components under observation will determine the precise configuration.

3. I²C Communication (SDA - Pin 15, SCL - Pin 14):

- Microcontroller Communication: Connect SDA (Pin 15) and SCL (Pin 14) to the I²C data and clock lines on the microcontroller. This allows for communication between the PCA9554APW and the microcontroller for status updates.

4. Interrupt Configuration (INT - Pin 13):

- Status Change Notification: Connect INT (Pin 13) to an interrupt pin on the microcontroller. This enables the PCA9554APW to alert the microcontroller when any input state changes.

5. Address Pins (A0-A2 - Pins 10-12):

- I²C Address Setting: Configure A0, A1, and A2 (Pins 10-12) for the I²C address. This is important when multiple devices are connected to the same I²C bus.

Design Considerations

When designing a circuit with the PCA9554APW, consider the following:

1. I/O Pin Requirements: Ensure the number of I/O pins needed for monitoring the server components does not exceed the 8-bit limit of the PCA9554APW.

2. I²C Bus Addressing: Properly address the PCA9554APW, especially when there are multiple I/O expanders or devices on the same I²C bus.

3. Power Supply Stability: Provide a stable and noise-free power supply to ensure consistent performance of the I/O expander.

4. Interrupt Management: Efficiently handle the interrupt signal to ensure the microcontroller can promptly respond to changes in the input states.

By carefully addressing these points and leveraging the features and pin configurations of the PCA9554APW, one can effectively integrate this I/O expander into sophisticated applications like a server management system. The PCA9554APW, with its I/O expansion and interrupt signaling capabilities, is an excellent choice for enhancing the monitoring capabilities of a central microcontroller in complex systems.
