NXP USA Inc. PCF8574T/3,518

Part No.:: PCF8574T/3,518

Manufacturer:: NXP USA Inc.

Package:: 16-SOIC (0.295, 7.50mm Width)

Datasheet:: PCF8574T/3,518.pdf

Description:: IC I/O EXPANDER I2C 8B 16SOIC

In Stock:: 13476

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PCF8574T/3,518 Specifications

Package/Case:
16-SOIC (0.295, 7.50mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
NumberofI/O:
8
Interface:
I²C
InterruptOutput:
Yes
Features:
POR
OutputType:
Push-Pull
Current-OutputSource/Sink:
300µA, 25mA
ClockFrequency:
100 kHz
Voltage-Supply:
2.5V ~ 6V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

PCF8574T/3,518 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PCF8574T/3,518 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PCF8574T/3,518 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PCF8574T/3,518 information

Views：

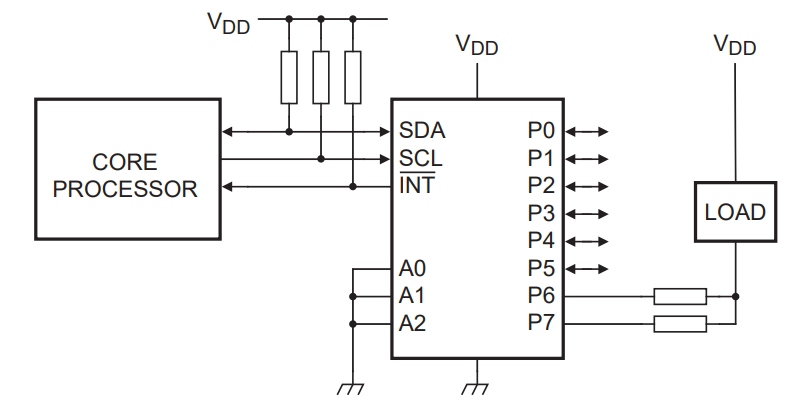

PCF8574T/3,518 Typical application Circuitry

PCF8574T 3,518

The PCF8574T/3,518 is an integrated circuit (IC) primarily designed as an I2C-bus controlled 8-bit I/O expander. Its main function is to increase the number of I/O ports available to a microcontroller or processor using the I2C-bus, which is particularly useful in applications with limited GPIO (General Purpose Input/Output) availability. This overview will detail the functionality of the PCF8574T/3,518, its application scenarios, parameter features, and a specific circuit connection guide.

Functionality: The PCF8574T/3,518 serves as an I/O expander, providing additional I/O ports through the I2C-bus, enabling enhanced control and interaction with a range of external devices.

Application Scenarios: The PCF8574T/3,518 is widely used in embedded systems and microcontroller-based projects, such as in home automation, robotics, and sensor networks, where additional I/O ports are necessary.

Parameter Features:

1. I/O Ports Expansion: Offers eight additional I/O ports for microcontroller systems.

2. I2C-Bus Interface: Employs the I2C communication protocol for efficient integration and data transfer.

3. Low Power Consumption: It is optimized for minimal power usage, suitable for battery-powered applications.

4. Voltage Range Compatibility: Operates across a range of voltages, accommodating different microcontroller logic levels.

Circuit Connection - Home Automation System:

1. Power Supply Linkage: Connect the VCC pin (e.g., pin 16) of the PCF8574T/3,518 to a stable power source.

2. Grounding the IC: Attach the GND pin (e.g., pin 8) to the system's ground.

3. I2C Bus Configuration: Interface the SDA (Serial Data, pin 15) and SCL (Serial Clock, pin 14) pins of the PCF8574T/3,518 with the microcontroller's I2C bus.

4. External Device Connection: Link the I/O pins (e.g., P0 to P7, pins 1-7, 9-12) of the PCF8574T/3,518 to various components like switches, sensors, or actuators in the home automation system.

Design Considerations:

- Stable Power Source: Ensure a consistent power supply for the reliable operation of the PCF8574T/3,518.

- I2C Bus Management: Proper configuration of the I2C bus, including addressing and pull-up resistors, is crucial for communication.

- Address Pin Settings: Correctly set the address pins (A0, A1, A2) to prevent conflicts on the I2C bus.

In summary, the PCF8574T/3,518 is integral in expanding the I/O capabilities of microcontroller systems, particularly useful in home automation projects. Designing circuits for the PCF8574T/3,518 involves careful consideration of power supply, I2C bus configuration, and address pin settings.
