Texas Instruments TCA6416APWR

Part No.:: TCA6416APWR

Manufacturer:: Texas Instruments

Package:: 24-TSSOP (0.173, 4.40mm Width)

Datasheet:: TCA6416APWR.pdf

Description:: IC I/O EXPANDER I2C 16B 24TSSOP

In Stock:: 3295

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TCA6416APWR Specifications

Package/Case:
24-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
NumberofI/O:
16
Interface:
I²C, SMBus
InterruptOutput:
Yes
Features:
POR
OutputType:
Push-Pull
Current-OutputSource/Sink:
10mA, 25mA
ClockFrequency:
400 kHz
Voltage-Supply:
1.65V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

TCA6416APWR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TCA6416APWR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TCA6416APWR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TCA6416APWR information

Views：

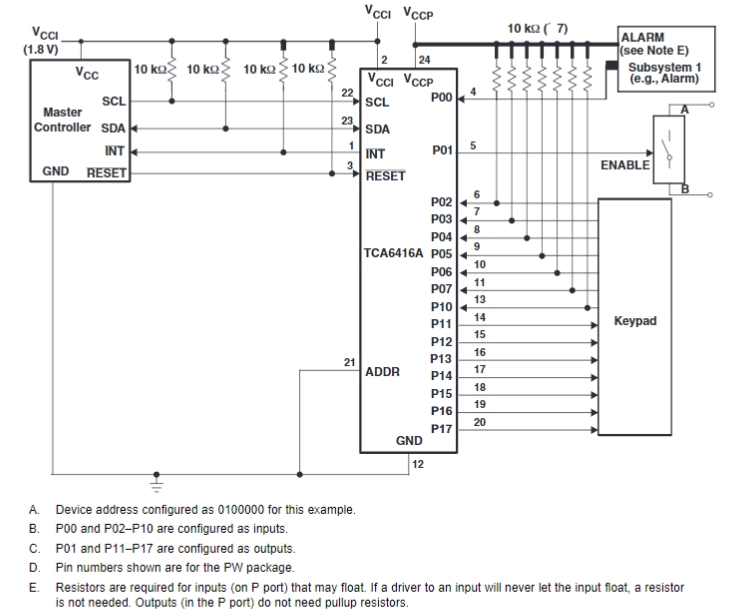

TCA6416APWR Typical application Circuitry

TCA6416APWR

The TCA6416APWR is a 16-bit I/O expander integrated circuit (IC) designed and manufactured by Texas Instruments. This IC is used to provide additional general-purpose input/output (GPIO) ports to a microcontroller or microprocessor through the I²C-bus serial interface. Here's a detailed description of the TCA6416APWR:

1. 16-Bit I/O Expander: The TCA6416APWR has 16 bi-directional I/O ports, allowing a system to expand the number of available GPIO pins that can be configured as either inputs or outputs.

2. I²C Interface: The IC communicates with a host processor or microcontroller via the I²C serial interface. This two-wire interface is used for both configuring the pins and reading/writing data to them.

3. Low-Voltage Operation: The TCA6416APWR is designed to operate at low voltages (1.65 V to 5.5 V), making it suitable for various applications including those that are battery-powered.

4. Interrupt Output: The IC provides an interrupt output that can notify the host processor when there is a change in the state of any of the input pins, which can be useful for applications that need to respond to external events.

5. Level Shifting: The I/O expander can also act as a level shifter, allowing it to interface between components operating at different voltage levels.

6. Internal Power-On Reset: The IC has an internal power-on reset that ensures that the I/Os are in a known state upon power-up.

7. Configurable Polarity: The TCA6416APWR allows for configurable polarity inversion registers to configure the polarity of the input port data.

8. Package: The TCA6416APWR is typically available in a TSSOp(Thin Shrink Small Outline Package), making it suitable for compact electronic assemblies.

9. Applications: This IC can be used in a wide range of applications where additional GPIOs are needed, such as smartphones, tablets, industrial control systems, consumer electronics, and embedded systems.

10. Datasheet: For detailed specifications, pin configurations, electrical characteristics, and application notes, it is recommended to consult the datasheet of the TCA6416APWR, which can be obtained from Texas Instruments' website or electronic component distributors.

In summary, the TCA6416APWR is a 16-bit I/O expander IC that provides additional GPIO ports to a host processor through the I²C interface, with features such as interrupt output, low-voltage operation, level shifting, and configurable polarity.
