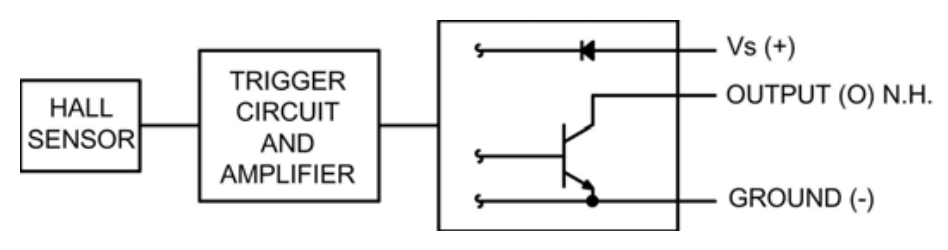

SS341RT Typical application Circuitry

SS341RT

A Hall-effect sensor integrated circuit (IC) for magnetic field detection is the SS341RT. The ability to recognize and translate a magnetic field's existence or absence into a digital signal is widely employed in many different applications. These are the main characteristics of the SS341RT, along with an example application case and design considerations for circuit design.

SS341RT's Primary Features:

1. Hall-Effect Sensor: A Hall-effect sensor that can identify variations in magnetic fields is the SS341RT.

2. Digital Output: It provides a digital output signal (usually open-drain) that switches when a magnetic field is detected.

3. High Sensitivity: This sensor has high sensitivity to magnetic fields, making it suitable for detecting weak magnetic sources.

4. Wide Operating Voltage Range: Generally speaking, it can run on a variety of supply voltages.

5. Low Power Consumption: The SS341RT is appropriate for battery-powered applications due to its low power consumption design.

6. Temperature Stability: It may include temperature compensation to maintain accuracy across varying temperature conditions.

Example Application: Magnetic Proximity Switch

Let's explore a common application scenario for the SS341RT: building a magnetic proximity switch to detect the opening or closing of a door or window.

Circuit Connection:

1. SS341RT Pin 1 (VCC): Connect this pin to the supply voltage (VCC), typically between 3V and 5V.

2. SS341RT Pin 2 (GND): Connect this pin to the ground reference (GND) of your circuit.

3. SS341RT Pin 3 (OUT): Connect this pin to a pull-up resistor and then to the digital input pin of a microcontroller or another digital logic device.

4. Magnet: Position a small magnet near the SS341RT sensor so that the magnetic field affects the sensor's output when the magnet is in proximity.

·1. Supply Voltage: Ensure that the supply voltage (VCC) matches the sensor's operating voltage range.

2. Pull-Up Resistor: Select an appropriate pull-up resistor value to ensure reliable digital signal levels at the OUT pin.

3. Magnet Placement: Position the magnet in a way that ensures it activates the sensor when a door or window is opened or closed.

4. Signal Processing: Implement debouncing or filtering if needed to process the sensor's output signal reliably.

5. Detection Range: Consider the detection range of the sensor and adjust the magnet's position accordingly to achieve the desired sensitivity.

6. Power Efficiency: Optimize the circuit for low power consumption, especially if it's battery-powered.

7. Environmental Factors: Take into consideration changes in temperature and other elements of the environment that could impact the performance of the sensor.

8. Interference: Minimize electromagnetic interference and ensure that other magnetic sources do not affect the sensor's operation.

In summary, the SS341RT is a Hall-effect sensor commonly used in applications like magnetic proximity switches. When designing a circuit with this sensor, it is crucial to address supply voltage, pull-up resistor selection, magnet placement, signal processing, detection range, power efficiency, environmental factors, and interference to ensure reliable magnetic field detection for your specific application.

SS341RT information

SS341RT Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
SS340RT
ProductStatus:
Active
Function:
Unipolar Switch
Technology:
Hall Effect
Polarization:
North Pole
SensingRange:
-13.5mT Trip, -1mT Release
TestCondition:
-40°C ~ 150°C
Voltage-Supply:
3V ~ 24V
Current-Supply(Max):
8mA
Current-Output(Max):
20mA
OutputType:
Open Collector
Features:
-
OperatingTemperature:
-40°C ~ 150°C (TA)
MountingType:
Surface Mount
