lmages are for reference only See Product Specifications

Texas Instruments DRV5013ADQDBZTQ1

Part No.:: DRV5013ADQDBZTQ1

Manufacturer:: Texas Instruments

Package:: -

Datasheet:: DRV5013ADQDBZTQ1.pdf

Description:: MAGNETIC SWITCH LATCH

In Stock:: 200

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DRV5013ADQDBZTQ1 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DRV5013ADQDBZTQ1 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DRV5013ADQDBZTQ1 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

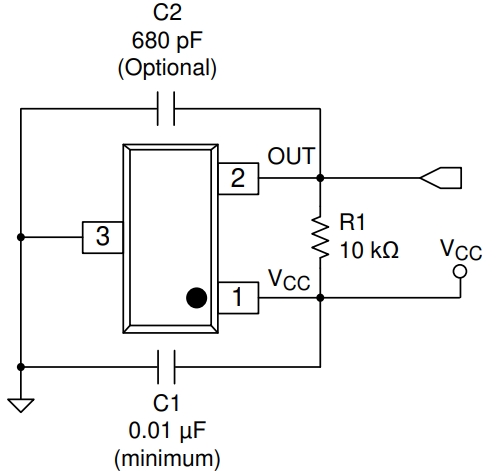

DRV5013ADQDBZTQ1 Typical application Circuitry

DRV5013ADQDBZTQ1

The DRV5013ADQDBZTQ1 is a Hall effect sensor designed for automotive applications, where a digital output signal is required in response to magnetic fields. This sensor is commonly used for position sensing, speed detection, and proximity sensing in vehicles.

Situations of Applications:

The DRV5013ADQDBZTQ1 is frequently used in automobile applications to sense the brake pedal's position. Electronic stability control (ESC) and anti-lock brake systems (ABS) are two car safety systems that depend on this information.

Key Parameters:

- Supply Voltage: 2.5V to 38V

- Output Type: Digital (Open-Drain)

- Magnetic Sensitivity: Typically 7 Gauss (Operate) and 11 Gauss (Release)

- Operating Temperature: -40 to 125 degrees Celsius

- Package: SOT-23

Circuit Design for Brake Pedal Position Sensing:

1. Power Supply Connection: Connect the Vcc pin (pin 3) of the DRV5013ADQDBZTQ1 to a stable 5V power supply, ensuring it is well-regulated to avoid noise interference.

2. Ground Connection: Connect the GND pin (pin 1) to the system ground to provide a common reference for all signals and power connections.

3. Output Connection: Connect the OUT pin (pin 2) to a digital input pin of the vehicle's electronic control unit (ECU) to interpret the sensor's output signal.

4. Magnetic Field Orientation: Attach a magnet to the brake pedal assembly, ensuring the correct orientation so that the sensor can detect the pedal's position accurately.

5. Pull-up Resistor: Use a pull-up resistor (typically 10kΩ) between the OUT pin and Vcc to ensure a defined logic level when the output is not actively driven low.

Design Considerations:

- Magnetic Field Strength: The DRV5013ADQDBZTQ1 magnet's field strength should be within the sensor's operating range for reliable detection.

- Power Supply Noise: Reduce noise on the power supply line to stop the sensor from being falsely triggered.

- Mounting Orientation: Properly align the sensor with the magnetic field for accurate position sensing.

- Temperature Variations: Ensure the sensor operates within its specified temperature range, considering the varying temperatures in automotive environments.

- Electromagnetic Interference (EMI): Implement appropriate shielding and filtering techniques to protect the sensor from EMI, which could affect its performance in automotive applications.

By carefully considering these factors and following the outlined circuit design, the DRV5013ADQDBZTQ1 can be effectively used in automotive applications for reliable and accurate brake pedal position sensing.

DRV5013ADQDBZTQ1 information

DRV5013ADQDBZTQ1 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q100
ProductStatus:
Active
Function:
Latch
Technology:
Hall Effect
Polarization:
South Pole
SensingRange:
5mT Trip, -5mT Release
TestCondition:
-40°C ~ 125°C
Voltage-Supply:
2.7V ~ 38V
Current-Supply(Max):
2.7mA (Typ)
Current-Output(Max):
30mA
OutputType:
Open Drain
Features:
Temperature Compensated
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
-
