Texas Instruments DRV5032FBDBZR

Part No.:: DRV5032FBDBZR

Manufacturer:: Texas Instruments

Package:: SOT-23-3

Datasheet:: DRV5032FBDBZR.pdf

Description:: MAGNETIC SWITCH OMNIPOL SOT23-3

In Stock:: 3836

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DRV5032FBDBZR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DRV5032FBDBZR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DRV5032FBDBZR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

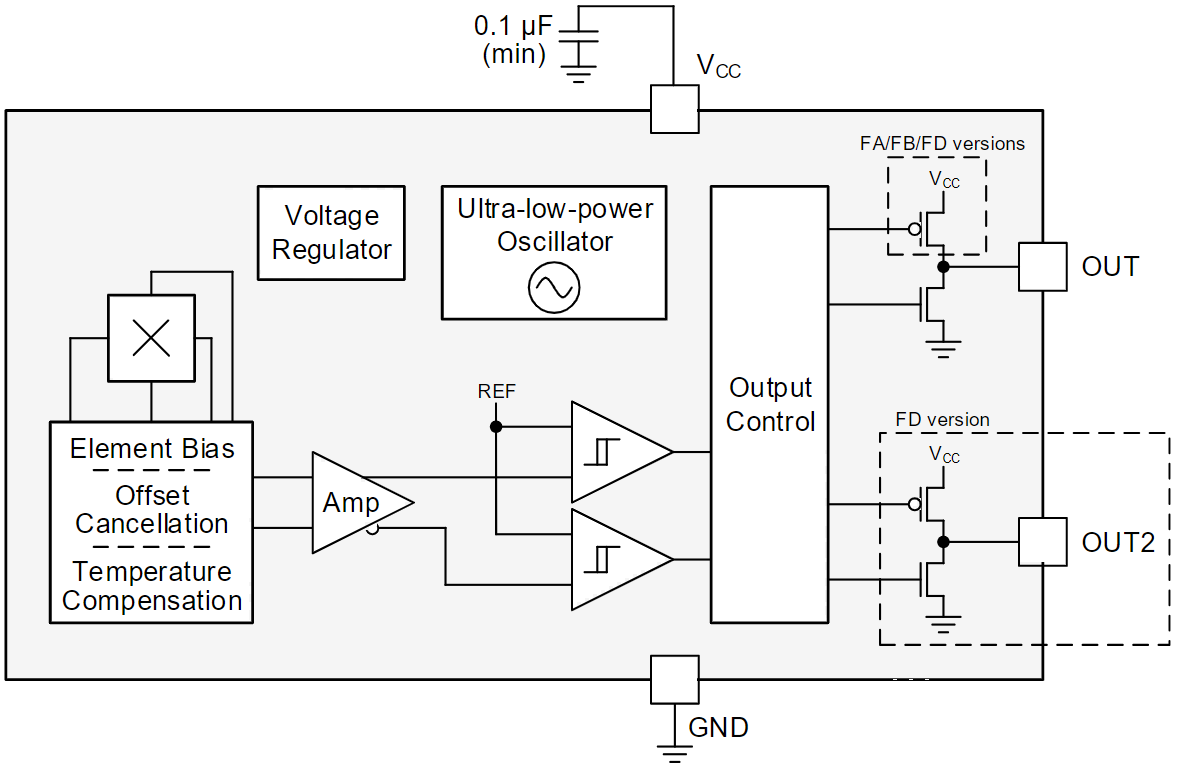

DRV5032FBDBZR Typical application Circuitry

DRV5032FBDBZR

The DRV5032FBDBZR is a member of the DRV5032 series, a lineup of ultra-low-power digital-switch Hall effect sensors from Texas Instruments. These sensors are tailored for applications that demand efficient and dependable detection of magnetic fields. The DRV5032FBDBZR is ideal for battery-powered devices because to its low power needs. It finds widespread use in industrial systems, consumer electronics, and personal gadgets for various tasks like detecting lid closures, measuring flow, and serving as contactless switches.

1. Connecting the Power Supply: The DRV5032FBDBZR functions within a power supply range of 1.65V to 5.5V. Connect the VDD pin to an appropriate power supply that operates within this voltage range. To ensure a stable supply and reduce noise, adding a decoupling capacitor near the VDD pin is advisable.

2. Grounding through the GND Pin: Link the GND pin of the DRV5032FBDBZR to your system's ground. This step is essential for maintaining the sensor's stability and achieving its best performance.

3. Output Signal via the OUT Pin: The DRV5032FBDBZR emits a digital output signal from the OUT pin, which toggles in reaction to a magnetic field's presence. To monitor the sensor's state, connect this pin to a digital input of a microcontroller or another interfacing device.

4. Interacting with the Magnetic Field: Place the DRV5032FBDBZR in a location where it can effectively sense the intended magnetic field. The sensor's responsiveness is affected by the magnet's orientation and strength, as well as the distance between the magnet and the sensor.

5. Incorporating a Pull-up Resistor on the Output: If needed, attach a pull-up resistor to the OUT pin to secure a clearly defined high state when the output is not active. The value of the resistor may vary depending on the unique needs of your system and the input characteristics of the interface device.

6. PCB Layout Planning: In your PCB design, ensure minimal interference from other magnetic sources and electrical noise. Position the sensor away from areas with high current traces and magnetic components, such as transformers or inductors.

7. Implementing Protective Measures: Although the DRV5032FBDBZR is robustly designed, consider adding protective elements like resistors or capacitors, especially if the sensor will operate in challenging electrical environments.

In conclusion, the DRV5032FBDBZR is a highly efficient and compact Hall effect sensor, ideal for various applications that require accurate magnetic field detection with minimal power usage. Effective integration into electronic systems hinges on proper connections for power, ground, and output pins, strategic sensor placement, and a carefully considered PCB layout.

DRV5032FBDBZR information

DRV5032FBDBZR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
Function:
Omnipolar Switch
Technology:
Hall Effect
Polarization:
North Pole, South Pole
SensingRange:
±4.8mT Trip, ±0.5mT Release
TestCondition:
25°C
Voltage-Supply:
1.65V ~ 5.5V
Current-Supply(Max):
1.8µA
Current-Output(Max):
5mA
OutputType:
Push-Pull
Features:
-
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

DRV5032FBDBZR FAQ
