Texas Instruments SN74HC595DWR

Part No.:: SN74HC595DWR

Manufacturer:: Texas Instruments

Package:: 16-SOIC (0.295, 7.50mm Width)

Datasheet:: SN74HC595DWR.pdf

Description:: IC 8BIT SHIFT REG 3ST-OUT 16SOIC

In Stock:: 3583

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74HC595DWR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74HC595DWR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74HC595DWR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

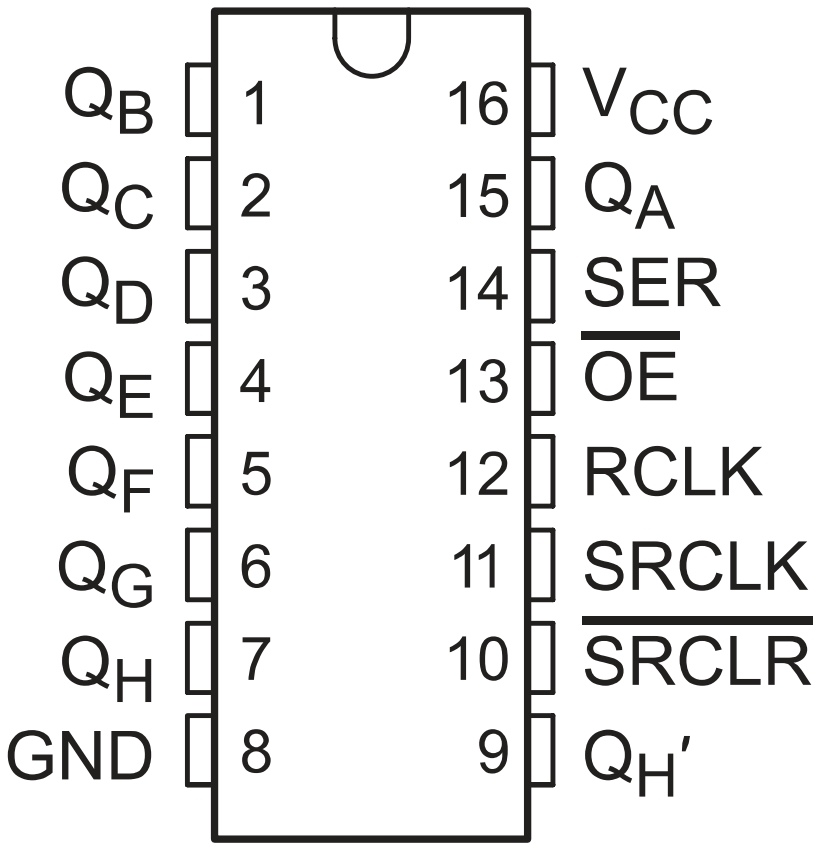

SN74HC595DWR Typical application Circuitry

SN74HC595DWR

The SN74HC595DWRis a widely used integrated circuit known for its versatility in digital electronics.Here is a thorough examination of its features, uses, parameter attributes, example of a particular circuit connection, and design considerations:

1. Here is a thorough examination of its features, uses, parameter attributes, example of a particular circuit connection, and design considerations. It's part of the HC family, indicating high-speed CMOS technology. This chip's main purpose is to increase the number of outputs that a microcontroller or other digital device can use. It accomplishes this by transforming data from serial input into parallel output.

2. Application Scenarios:This IC is commonly used in scenarios where multiple outputs are needed but the controlling device has limited I/O pins. Typical applications include driving LED arrays, LCD displays, and digital control lines in embedded systems.

3. Parameter Features: Key features include a wide operating voltage range (typically 2V to 6V), low power consumption, high speed (shift frequency up to 100 MHz), and the ability to daisy-chain multiple ICs for extended output capabilities.

4. Circuit Connection Example:

- Scenario: Driving an 8-LED array.

- Connections:

- Microcontroller to SN74HC595DWR:

- Connect the microcontroller's serial data output (SDO) pin to the Data (Pin 14) of SN74HC595DWR.

- Attach the clock output pin of the microcontroller to the shift register clock (SHCP, Pin 11).

- Connect another microcontroller pin for latch control to the Latch Clock (STCP, Pin 12).

- Master Reset (MR, Pin 10) should be tied high (VCC) for normal operation.

- Output from SN74HC595DWR:

- Connect each of the 8 output pins (Q0 to Q7) to the respective LEDs.

- Common Ground: Ensure a common ground connection between the microcontroller and SN74HC595DWR.

- Programming: Write a code to serially shift the desired LED pattern into the shift register and then latch it to output.

5. Design Considerations:

- Ensure that the power supply voltage matches the operating voltage of SN74HC595DWR.

- Consider the current driving capability of the IC when connecting loads like LEDs.

- Pay attention to signal timing, especially when daisy-chaining multiple shift registers.

- Decoupling capacitors near the power supply pins is recommended to cut down on noise.

In designing circuits with the SN74HC595DWR, it's crucial to understand both the electrical specifications and the timing requirements of the IC to ensure reliable operation. With its many uses, this flexible chip provides a workable way to increase output capacities in digital systems while minimizing pin count and complexity.

SN74HC595DWR information

SN74HC595DWR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
74HC
ProductStatus:
Active
LogicType:
Shift Register
OutputType:
Tri-State
NumberofElements:
1
NumberofBitsperElement:
8
Function:
Serial to Parallel, Serial
Voltage-Supply:
2V ~ 6V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount
