What is the Additional Feature ?

Name: MC74HC595ADTR2G
Brand: ON Semiconductor
SKU: MC74HC595ADTR2G
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

ON Semiconductor MC74HC595ADTR2G

Part No.:: MC74HC595ADTR2G

Manufacturer:: ON Semiconductor

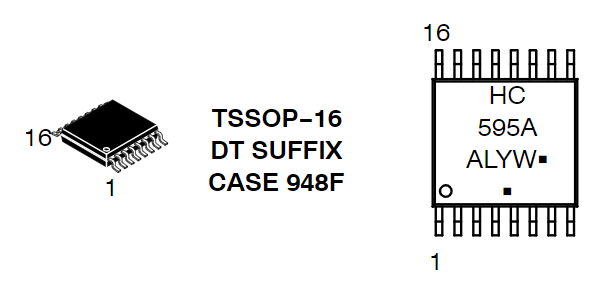

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:: MC74HC595ADTR2G.pdf

Description:: IC SHIFT REGSTR 8BIT 3ST 16TSSOP

In Stock:: 3175

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MC74HC595ADTR2G this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MC74HC595ADTR2G price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MC74HC595ADTR2G to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

MC74HC595ADTR2G Typical application Circuitry

At the heart of digital electronics, there are specific components that offer unique advantages in data handling and circuit simplification. One of the notable chips in this domain is the MC74HC595ADTR2G. As an 8-bit serial-in, serial-out, or parallel-out shift register, this miracle is exceptional.

In essence, the MC74HC595ADTR2G plays a pivotal role in data storage and transfer. It's especially handy in scenarios where you want to interface a microcontroller with multiple output devices, yet have limited I/O pins at your disposal.

Specifications and features of the MC74HC595ADTR2G include a broad voltage operating range, high-speed clock frequencies, and multiple output modes, allowing the user to either pull data serially or fetch it in parallel.

Let's envisage an application: controlling eight LEDs using only three pins from a microcontroller.

1. Data Input (SER): The first step is to connect the data input, termed 'SER' (Pin 14) on the MC74HC595ADTR2G, to the desired microcontroller's data output pin. This pin will transmit the binary state (1 or 0) of each LED sequentially.

2. Clock Pulse (SRCLK): The 'SRCLK' (Pin 11) of the MC74HC595ADTR2G needs to be connected to a clock pin from the microcontroller. The data in the shift register will be shifted by one bit for each pulse on this pin.

3. Latch Operation (RCLK): The 'RCLK' pin (Pin 12) acts as a latch. Once all 8 bits are shifted into the register, a pulse on this pin will update the eight output pins (Q0-Q7) simultaneously. This pin should be connected to another digital output pin on the microcontroller.

4. LED Outputs (Q0-Q7): The eight output pins (Pins 15, 1-7) of the MC74HC595ADTR2G should each be connected to an LED (through a current-limiting resistor). When the latch (RCLK) receives a pulse, these pins will either source or sink current based on the data that was shifted in, turning the LEDs on or off.

5. Power and Grounding: Like all ICs, this chip requires a stable voltage supply. Connect 'VCC' (Pin 16) to a positive supply (typically 2V to 6V) and 'GND' (Pin 8) to the circuit's ground.

Problems that could occur when using the MC74HC595ADTR2G include:

1. Timing Considerations: The sequence in which data is sent, and the clock pulses are generated is crucial. A mismatch can result in erratic behavior of the outputs.

2. Power Supply Noise: Fluctuations in the voltage supply can affect performance. Adding a decoupling capacitor close to the VCC pin is a wise decision.

3. Thermal Concerns: Even though the chip is relatively efficient, like all electronic components, it does produce some heat. Proper ventilation should be considered, especially in enclosed designs.

4. Interference with other Components: The chip's proximity to high-frequency components might lead to unwanted behavior. Strategic placement and possible shielding could prove beneficial.

5. Protection of Inputs and Outputs: Given the sensitive nature of IC pins, overvoltage or static discharges can be harmful. Employing protection diodes or ensuring the handling of the chip with grounded equipment can prevent potential damage.

In summation, the MC74HC595ADTR2G acts as a bridge, enabling complex operations with limited resources. Its design and versatility streamline digital electronic applications, underlining the importance of having such robust components in the modern tech toolkit.

MC74HC595ADTR2G information

MC74HC595ADTR2G Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
74HC
ProductStatus:
Active
LogicType:
Shift Register
OutputType:
Tri-State
NumberofElements:
1
NumberofBitsperElement:
8
Function:
Serial to Parallel, Serial
Voltage-Supply:
2V ~ 6V
OperatingTemperature:
-55°C ~ 125°C
MountingType:
Surface Mount

MC74HC595ADTR2G FAQ

1. How to order MC74HC595ADTR2G on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that MC74HC595ADTR2G is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the MC74HC595ADTR2G. All suppliers must pass our qualification reviews before they can publish their products including MC74HC595ADTR2G on icwhale.com; we pay more attention to the channels and quality of MC74HC595ADTR2G products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the MC74HC595ADTR2G price and inventory displayed accurate?

The price and inventory of MC74HC595ADTR2G fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of MC74HC595ADTR2G?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the MC74HC595ADTR2G we delivered, we will accept the replacement or return of the MC74HC595ADTR2G only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of MC74HC595ADTR2G.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
