Nexperia USA Inc. 74HC595PW,118

Part No.:: 74HC595PW,118

Manufacturer:: Nexperia USA Inc.

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:: 74HC595PW,118.pdf

Description:: IC SHIFT REGISTER 8BIT 16TSSOP

In Stock:: 2944

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC595PW,118 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC595PW,118 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC595PW,118 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

74HC595PW,118 Typical application Circuitry

74HC595PW,118

74HC595PW,118 is a versatile 8-bit shift register with a serial-in, parallel-out configuration. It is essential in applications requiring data storage and movement between registers, enabling the user to expand the output capabilities of a microcontroller and minimize the required number of pins for connecting multiple devices.

Applications:

1. LED arrays or matrix displays control.

2. Multiple sensors or inputs management.

3. Motors and relays driving in robotics.

Parameter Characteristics:

1. 8-bit serial input and parallel output.

2. 3-state outputs for easy connection to other devices.

3. Shift frequency up to 100 MHz.

4. Wide supply voltage range.

Application Scenario:

Here, we will focus on how 74HC595PW,118 can be used to control an LED matrix.

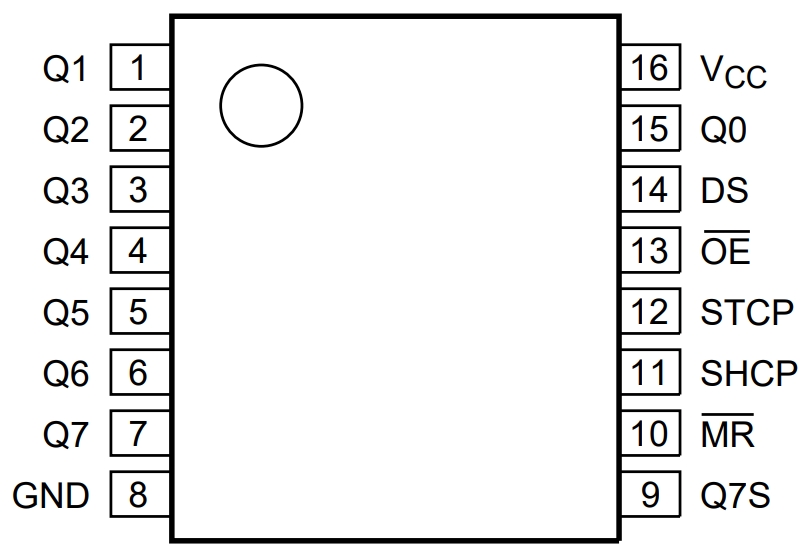

Circuit Connection:

1. Data Input: The microcontroller's data output pin should be connected to the SER (14) pin of 74HC595PW,118.

2. Clock Connection: Link the microcontroller's clock output to the SRCLK (11) pin of 74HC595PW,118.

3. Latch Connection: The microcontroller's latch output should be connected to the RCLK (12) pin of 74HC595PW,118.

4. Output to LED Matrix: The Q0-Q7 (pins 15 to 7) of 74HC595PW,118 must be connected to the LED matrix.

5. Power Supply: The power supply and ground should be connected to the Vcc (16) and GND (8) pins of the 74HC595PW,118, respectively.

Design Considerations:

1. Synchronized Clocking: Ensuring the clock signals are correctly synchronized is vital to prevent data misalignment.

2. Stable Power Supply: A stable power supply must be maintained to prevent damage to the shift register.

3. Signal Integrity: The integrity of data and clock signals must be upheld to prevent data corruption.

4. Output Load Management: It is essential to consider the load on each output pin to avoid overloading the shift register.

In summary, 74HC595PW,118 is a valuable shift register that finds applications in various domains, such as controlling LED arrays. The designer must pay attention to clock synchronization, power stability, signal integrity, and output load to ensure the reliability and efficiency of the system.

74HC595PW,118 information

74HC595PW,118 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
74HC
ProductStatus:
Active
LogicType:
Shift Register
OutputType:
Tri-State
NumberofElements:
1
NumberofBitsperElement:
8
Function:
Serial to Parallel, Serial
Voltage-Supply:
2V ~ 6V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount
