Texas Instruments PCA9555PWRE4

Part No.:: PCA9555PWRE4

Manufacturer:: Texas Instruments

Package:: 24-TSSOP (0.173, 4.40mm Width)

Datasheet:: PCA9555PWRE4.pdf

Description:: IC I/O EXPANDER I2C 16B 24TSSOP

In Stock:: 3552

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PCA9555PWRE4 Specifications

Package/Case:
24-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
NumberofI/O:
16
Interface:
I²C, SMBus
InterruptOutput:
Yes
Features:
POR
OutputType:
Push-Pull
Current-OutputSource/Sink:
10mA, 25mA
ClockFrequency:
400 kHz
Voltage-Supply:
2.3V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

PCA9555PWRE4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PCA9555PWRE4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PCA9555PWRE4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PCA9555PWRE4 information

Views：

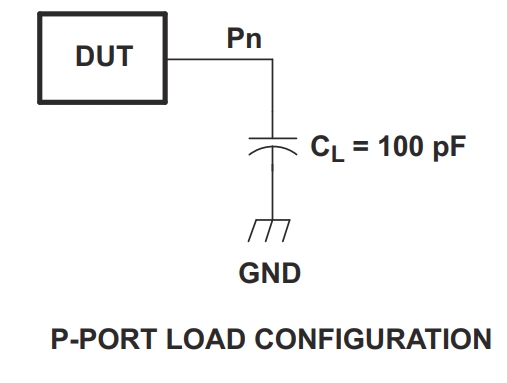

PCA9555PWRE4 Typical application Circuitry

PCA9555PWRE4

The PCA9555PWRE4 is a 16-bit I2C-bus and SMBus I/O expander. It is designed to enhance the number of I/O ports available in a system, particularly useful for microcontrollers with limited I/O capabilities.

PCA9555PWRE4 Application Scenarios:

1. Expansion in Embedded Systems: Used to increase the I/O ports in embedded devices, such as IoT gadgets and smart home appliances.

2. Control Panels: Ideal for complex control panels in industrial and commercial applications.

PCA9555PWRE4 Key Features and Parameters:

1. 16-Bit I/O Expansion: Offers a substantial increase in I/O ports.

2. I2C/SMBus Interface: Compatible with I2C and SMBus communication protocols.

3. Configurable Polarity: Allows for adaptable input polarity.

4. Energy Efficiency: Designed with a focus on low power consumption.

5. Versatile Voltage Compatibility: Supports a wide range of operating voltages.

Circuit Connection Example: IoT Device Control System

Overview: Implementing PCA9555PWRE4 in an IoT device for managing various sensors and controls.

1. Power Supply Integration:

- VCC (pin 24) should be connected to the IoT device's power supply, compatible with the chip's operating voltage range.

2. I2C Bus Integration:

- SDA (pin 23) and SCL (pin 22) need to be connected to the corresponding SDA and SCL lines of the IoT device's I2C bus.

3. Peripheral Device Connection:

- I/O Ports (P00 to P07 and P10 to P17) are for connecting to sensors, switches, or other interfaces. Each port should be configured according to the connected device's functionality.

4. I2C Address Setup:

- Address Pins (A0, A1, and A2) are essential for setting the I2C address of the PCA9555PWRE4, enabling proper communication on the bus.

Design Considerations:

1. Voltage Level Alignment: Ensure VCC matches the power requirements of both the IoT device and the peripherals.

2. I2C Addressing: Carefully configure the address pins to prevent any conflicts on the I2C bus.

3. Port Configuration: Program each port correctly as either an input or output, depending on the requirements of the connected peripherals.

4. System Integration: Ensure the PCA9555PWRE4 is seamlessly integrated into the IoT device, including thorough testing of connectivity and function.

In conclusion, the PCA9555PWRE4 is an effective I/O expander, enhancing the capabilities of microcontroller-based systems such as IoT devices. Its 16-bit I/O expansion, compatibility with I2C and SMBus, configurable input polarity, and low power consumption make it highly suitable for such applications. Key considerations in circuit design include voltage alignment, I2C addressing, port setup, and ensuring robust integration into the broader system.
