Texas Instruments PCA9555PWE4

Part No.:: PCA9555PWE4

Manufacturer:: Texas Instruments

Package:: 24-TSSOP (0.173, 4.40mm Width)

Datasheet:: PCA9555PWE4.pdf

Description:: IC I/O EXPANDER I2C 16B 24TSSOP

In Stock:: 2462

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PCA9555PWE4 Specifications

Package/Case:
24-TSSOP (0.173, 4.40mm Width)
Packaging:
Bulk
Series:
-
ProductStatus:
Obsolete
NumberofI/O:
16
Interface:
I²C, SMBus
InterruptOutput:
Yes
Features:
POR
OutputType:
Push-Pull
Current-OutputSource/Sink:
10mA, 25mA
ClockFrequency:
400 kHz
Voltage-Supply:
2.3V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

PCA9555PWE4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PCA9555PWE4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PCA9555PWE4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PCA9555PWE4 information

Views：

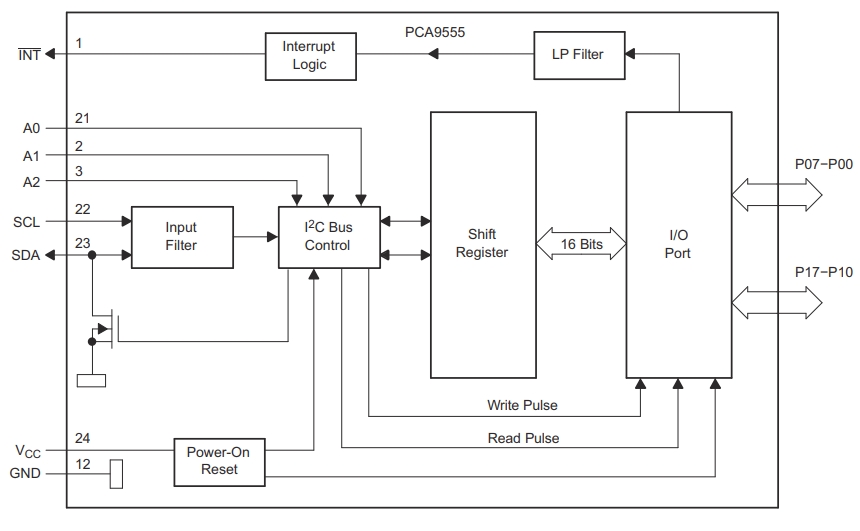

PCA9555PWE4 Typical application Circuitry

PCA9555PWE4

The PCA9555PWE4 is a 16-bit I/O expander designed for the I2C-bus and SMBus interfaces. It is primarily used to augment the number of I/O ports in microcontroller-based systems.

PCA9555PWE4 Application Scenarios:

1. Embedded System Expansion: Utilized in embedded systems to increase I/O port availability, especially in compact devices.

2. Industrial Automation: Ideal for controlling various sensors and actuators in industrial automation setups.

PCA9555PWE4 Key Features and Parameters:

1. 16-Bit I/O Ports: Provides significant expansion with 16 additional I/O ports.

2. I2C/SMBus Compatibility: Ensures seamless communication with I2C and SMBus protocols.

3. Configurable Port Direction: Each port can be independently set as input or output.

4. Low Power Consumption: Suitable for power-sensitive applications.

5. Flexible Operating Voltage: Supports a wide range of system voltages for versatile use.

Circuit Connection Example: Smart Home System

Overview: Deploying PCA9555PWE4 in a smart home system to manage lighting and sensors.

1. Connection to Power Supply:

- VCC (pin 24) should be connected to the smart home system's power supply, maintaining compatibility with the chip's voltage range.

2. Integrating with I2C Bus:

- SDA (pin 23) and SCL (pin 22) need to be linked to the corresponding SDA and SCL lines of the smart home system's I2C bus.

3. Connecting Smart Devices:

- I/O Ports (P00 to P07 and P10 to P17) for interfacing with smart lights, sensors, or switches. Configure each port based on the connected device's role.

4. I2C Address Setting:

- Address Pins (A0, A1, and A2) are crucial for assigning a unique I2C address to the PCA9555PWE4, facilitating proper identification and communication.

Design Considerations:

1. Ensure Voltage Compatibility: Match VCC with the power levels of both the smart home system and connected devices.

2. Configure I2C Addressing Accurately: Set the address pins to avoid bus conflicts and enhance communication efficiency.

3. Program Ports Accordingly: Define each port as input or output in software, tailored to the requirements of the connected smart devices.

4. Consider Circuit Protection: Implement appropriate protection mechanisms, especially for ports connected to actuators or high-load devices.

In summary, the PCA9555PWE4 is a valuable component in systems needing additional I/O ports, like smart home systems. Its 16-bit I/O expansion, compatibility with I2C/SMBus protocols, ability to configure port direction, low power consumption, and flexible voltage operation make it highly suitable for such applications. Careful planning in terms of voltage compatibility, I2C addressing, port programming, and protective measures is crucial for optimal circuit design and system integration.
