Texas Instruments PCA9554PWG4

Part No.:: PCA9554PWG4

Manufacturer:: Texas Instruments

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:: PCA9554PWG4.pdf

Description:: IC I/O EXPANDER I2C 8B 16TSSOP

In Stock:: 3600

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PCA9554PWG4 Specifications

Package/Case:
16-TSSOP (0.173, 4.40mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Obsolete
NumberofI/O:
8
Interface:
I²C, SMBus
InterruptOutput:
Yes
Features:
POR
OutputType:
Push-Pull
Current-OutputSource/Sink:
10mA, 25mA
ClockFrequency:
400 kHz
Voltage-Supply:
2.3V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

PCA9554PWG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PCA9554PWG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PCA9554PWG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PCA9554PWG4 information

Views：

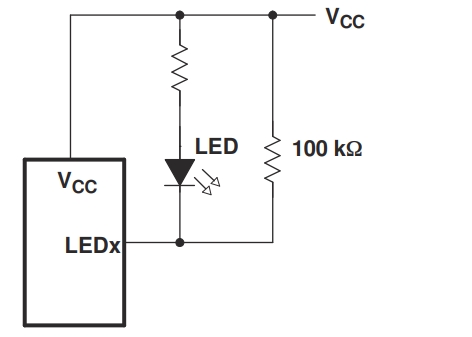

PCA9554PWG4 Typical application Circuitry

PCA9554PWG4

The PCA9554PWG4 is an 8-bit I/O expander with an I2C-bus interface, designed to provide additional I/O ports to an I2C-bus, allowing a microcontroller to interface with more devices or peripherals.

PCA9554PWG4 Application Scenarios:

1. I/O Port Expansion: Commonly used in microcontroller-based systems that need additional I/O ports, such as in embedded systems, industrial controls, and home automation systems.

2. Interface with Multiple Devices: Ideal for systems requiring the interfacing of multiple sensors, LEDs, or other peripherals that necessitate I/O ports.

PCA9554PWG4 Key Features and Parameters:

1. 8-Bit I/O Expander: Provides 8 additional I/O ports for a microcontroller.

2. I2C-Bus Interface: Compatible with the I2C-bus standard for communication.

3. Wide Operating Voltage Range: Typically operates within a 2.3V to 5.5V range.

4. Low Standby Current: Features an energy-efficient design with a low standby current.

5. Configurable Ports: Ports can be configured as inputs or outputs, enhancing flexibility.

Circuit Connection Example: Home Automation System

Overview: Utilizing PCA9554PWG4 in a home automation system for controlling lighting and sensors.

1. Power Supply Connection:

- VCC (pin 16) should be connected to the system's power supply, within the 2.3V to 5.5V range.

2. Grounding the Expander:

- GND (pin 8) must be connected to the system's ground.

3. I2C Bus Connection:

- SDA (pin 15) and SCL (pin 14) should be connected to the SDA and SCL lines of the microcontroller's I2C bus.

4. Connecting Devices to I/O Ports:

- P0 to P7 (pins 1-7 and pin 9) for connecting devices like sensors and relays. Each pin interfaces with a device that requires an I/O port.

5. Address Selection via Pins:

- A0, A1, and A2 (pins 10, 11, and 12, respectively) are used for hardware addressing, setting the I2C address of the PCA9554PWG4.

Design Considerations:

1. Voltage Level Compatibility: Ensure VCC matches the logic levels of the microcontroller and connected devices.

2. I2C Bus Integrity: Add pull-up resistors on the SDA and SCL lines for optimal I2C bus operation.

3. Address Configuration: Set A0, A1, and A2 correctly to avoid address conflicts on the I2C bus.

4. I/O Port Configuration: Appropriately configure the ports as inputs or outputs, based on the connected devices.

5. Device Compatibility: Verify the connected devices' compatibility with the voltage levels and current capabilities of the PCA9554PWG4.

In summary, the PCA9554PWG4 is a versatile I/O expander that significantly enhances the I/O capabilities of microcontroller-based systems. Its 8-bit expansion, I2C-bus compatibility, configurable ports, and energy-efficient design make it highly suitable for applications like home automation systems.
