Name: PCA9554APWR
Brand: Texas Instruments
SKU: PCA9554APWR
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments PCA9554APWR

Part No.:: PCA9554APWR

Manufacturer:: Texas Instruments

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:: PCA9554APWR.pdf

Description:: IC I/O EXPANDER I2C 8B 16TSSOP

In Stock:: 3078

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PCA9554APWR Specifications

Package/Case:
16-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Not For New Designs
NumberofI/O:
8
Interface:
I²C, SMBus
InterruptOutput:
Yes
Features:
POR
OutputType:
Push-Pull
Current-OutputSource/Sink:
10mA, 25mA
ClockFrequency:
400 kHz
Voltage-Supply:
2.3V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

PCA9554APWR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PCA9554APWR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PCA9554APWR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PCA9554APWR information

Views：

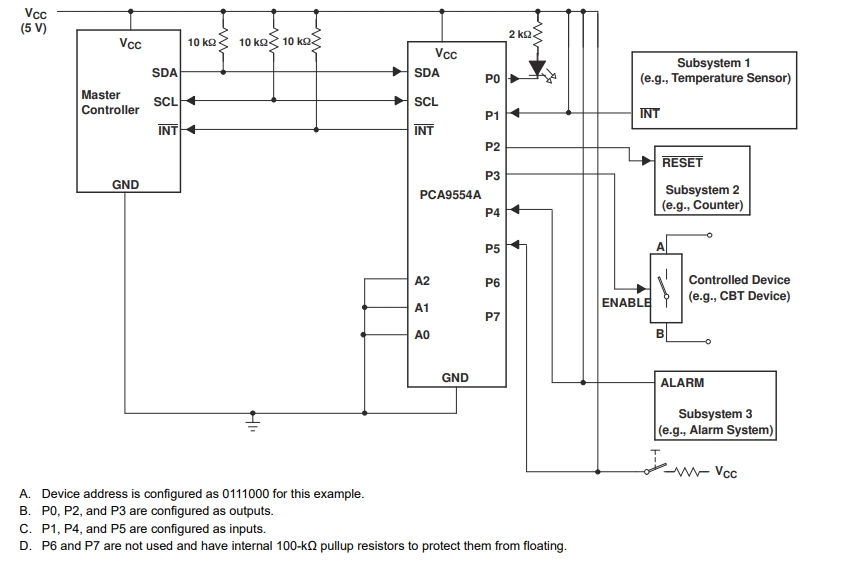

PCA9554APWR Typical application Circuitry

PCA9554APWR

The PCA9554APWR is an 8-bit I²C-bus and SMBus I/O expander with an interrupt function, engineered to provide additional input/output (I/O) capability to a microcontroller or processor, particularly in scenarios where I/O pin availability is limited.

Features of PCA9554APWR

1. I/O Expansion: The PCA9554APWR offers an 8-bit I/O port expansion, allowing for an increase in the number of I/O ports available to a microcontroller.

2. Interrupt Output: It features an interrupt output, enabling the device to signal the microcontroller when input changes occur.

3. Communication Interface: Equipped with an I²C-bus interface, ensuring easy integration with most microcontrollers or processors.

4. Configurable Polarity: Input polarity inversion register to invert the polarity of the input port data.

Application Scenario: Home Automation Interface

In a home automation interface, the PCA9554APWR can be used to manage various input devices like sensors and switches, thereby expanding the I/O capability of the central home automation controller. Below is a detailed connection guide for this application:

Circuit Connection Details

1. Power Supply (VDD - Pin 16, VSS - Pin 8):

- Supplying Power to the Chip: Connect a stable power source to VDD (Pin 16) to power the PCA9554APWR. Ground VSS (Pin 8) to complete the power circuit.

2. I/O Ports (P0-P7 - Pins 1-7, Pin 9):

- Connecting Sensors and Switches: Wire the home automation sensors and switches to the I/O ports (P0-P7). The specific configuration will depend on the home automation system's design and the devices being interfaced.

3. I²C Bus Communication (SDA - Pin 15, SCL - Pin 14):

- Microcontroller Communication: Connect SDA (Pin 15) and SCL (Pin 14) to the I²C data and clock lines on the microcontroller. This allows for communication between the PCA9554APWR and the microcontroller.

4. Interrupt Configuration (INT - Pin 13):

- Input Change Notification: Connect INT (Pin 13) to an interrupt pin on the microcontroller. This enables the PCA9554APWR to alert the microcontroller when any input state changes.

5. Address Pins (A0-A2 - Pins 10-12):

- Setting I²C Address: Configure A0, A1, and A2 (Pins 10-12) for the I²C address. This is important when multiple devices are connected to the same I²C bus.

Design Considerations

When designing a circuit with the PCA9554APWR, consider the following:

1. I/O Pin Requirements: Ensure the number of I/O pins needed for the sensors and switches does not exceed the 8-bit limit of the PCA9554APWR.

2. I²C Bus Addressing: Properly address the PCA9554APWR, especially when there are multiple I/O expanders or devices on the same I²C bus.

3. Power Supply Stability: Provide a stable and noise-free power supply to ensure consistent performance of the I/O expander.

4. Interrupt Management: Efficiently handle the interrupt signal to ensure the microcontroller can promptly respond to changes in the input states.

By attentively considering these aspects and utilizing the functionalities and pin configurations of the PCA9554APWR, one can effectively integrate this I/O expander into sophisticated applications like a home automation interface. The PCA9554APWR, with its I/O expansion and interrupt signaling capabilities, is an excellent choice for enhancing the I/O capabilities of a central microcontroller in complex systems.
