Texas Instruments PCA9539PWR

Part No.:: PCA9539PWR

Manufacturer:: Texas Instruments

Package:: 24-TSSOP (0.173, 4.40mm Width)

Datasheet:: PCA9539PWR.pdf

Description:: IC I/O EXPANDER I2C 16B 24TSSOP

In Stock:: 2396

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PCA9539PWR Specifications

Package/Case:
24-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Not For New Designs
NumberofI/O:
16
Interface:
I²C, SMBus
InterruptOutput:
Yes
Features:
POR
OutputType:
Push-Pull
Current-OutputSource/Sink:
10mA, 25mA
ClockFrequency:
400 kHz
Voltage-Supply:
2.3V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

PCA9539PWR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PCA9539PWR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PCA9539PWR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PCA9539PWR information

Views：

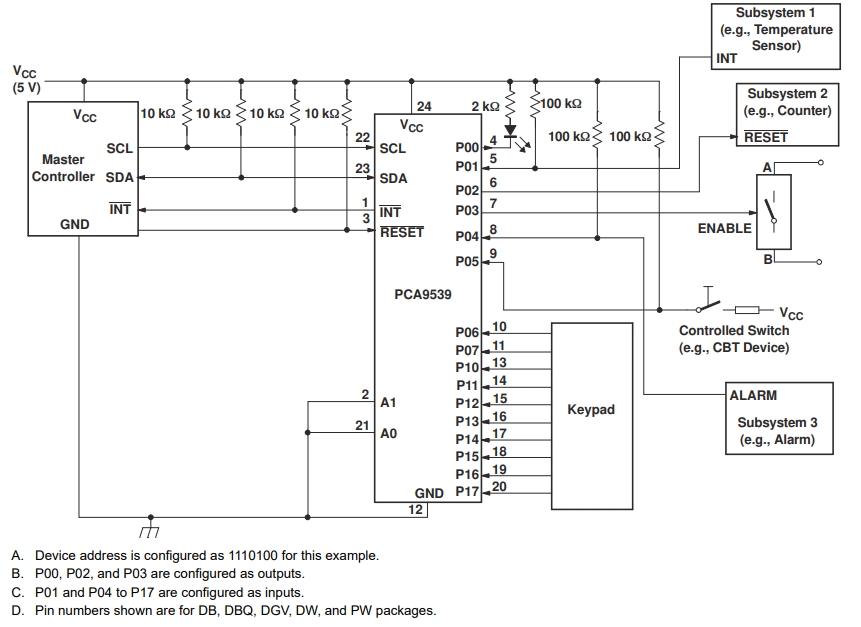

PCA9539PWR Typical application Circuitry

PCA9539PWR

The PCA9539PWR is a 16-bit I2C-bus and SMBus low-power I/O expander. This chip is designed to extend the input/output (I/O) capabilities of a microcontroller or processor, particularly in systems with limited GPIO pins.

PCA9539PWR Application Scenarios:

1. I/O Expansion in Embedded Systems: Commonly used in embedded systems such as home automation, industrial controls, or IoT devices, where additional GPIOs are required for interfacing with sensors, LEDs, or other peripherals.

2. Control Functions in Consumer Electronics: Employed in consumer electronics like smartphones and PCs to manage multiple control functionalities.

PCA9539PWR Key Features and Parameters:

1. 16-Bit I/O Ports: Provides sixteen additional I/O ports, each configurable as input or output.

2. I2C-Bus Interface: Compatible with the I2C-bus and SMBus, enabling easy integration into most microcontroller-based systems.

3. Low Power Consumption: Suitable for energy-efficient and battery-powered devices.

4. Programmable Polarity Inversion: Features programmable polarity inversion for input ports.

5. Wide Operating Voltage Range: Typically operates within a 2.3V to 5.5V range, accommodating various logic levels.

Circuit Connection Example: Expanding GPIOs in an IoT Device

Overview: Utilizing PCA9539PWR to increase the number of GPIOs available for a microcontroller in an IoT device.

1. Power Supply Integration:

- VDD (pin 24) should be connected to the microcontroller's power supply, typically within the 2.3V to 5.5V range.

2. Grounding the Device:

- GND (pin 12) needs to be connected to the system's ground.

3. I2C Bus Connectivity:

- SDA (pin 23) and SCL (pin 22) should be linked to the I2C data and clock lines of the microcontroller.

4. Configuring I/O Ports:

- P0.0 to P0.7 (pins 1-7) and P1.0 to P1.7 (pins 13-20) serve as the I/O ports, configurable as inputs or outputs as required by the application.

5. I2C Address Setting:

- A0, A1, and A2 (pins 21, 20, and 19, respectively) must be set to establish the I2C address of the device, by connecting them to either VCC or GND.

Design Considerations:

1. Voltage Level Compatibility: Ensure VDD matches the microcontroller's logic level voltage.

2. I2C Address Configuration: Appropriately set A0, A1, and A2 to avoid conflicts on the I2C bus.

3. Pull-Up Resistors for I2C Lines: Include suitable pull-up resistors on SDA and SCL for stable I2C communication.

4. Input/Output Port Configuration: Properly configure P0.0 to P1.7 as inputs or outputs, based on the specific needs of the IoT device.

5. Power Consumption Awareness: Be mindful of the low power consumption feature, especially in battery-powered applications.

In summary, the PCA9539PWR is an effective solution for expanding the GPIO capabilities of microcontroller systems, especially beneficial in IoT applications and complex electronics. Its 16-bit I/O expansion, compatibility with I2C-bus standards, and energy-efficient design make it a valuable component in various applications where additional GPIOs are needed.
