Texas Instruments PCA9539PW

Part No.:: PCA9539PW

Manufacturer:: Texas Instruments

Package:: 24-TSSOP (0.173, 4.40mm Width)

Datasheet:: PCA9539PW.pdf

Description:: IC I/O EXPANDER I2C 16B 24TSSOP

In Stock:: 2466

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PCA9539PW Specifications

Package/Case:
24-TSSOP (0.173, 4.40mm Width)
Packaging:
Bulk,Tube
Series:
-
ProductStatus:
Obsolete
NumberofI/O:
16
Interface:
I²C, SMBus
InterruptOutput:
Yes
Features:
POR
OutputType:
Push-Pull
Current-OutputSource/Sink:
10mA, 25mA
ClockFrequency:
400 kHz
Voltage-Supply:
2.3V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

PCA9539PW this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PCA9539PW price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PCA9539PW to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PCA9539PW information

Views：

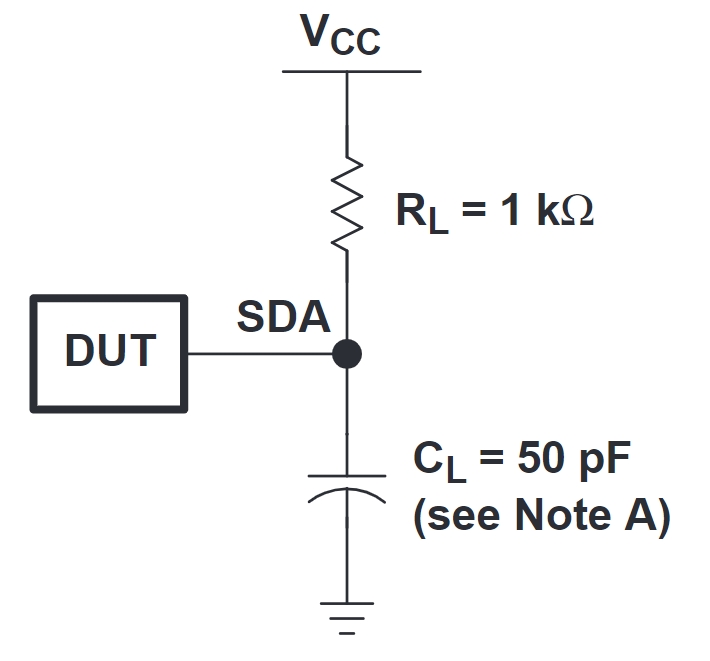

PCA9539PW Typical application Circuitry

PCA9539PW

The PCA9539PW is a 16-bit I2C-bus and SMBus low-power I/O expander. It is specifically designed to provide additional input/output (I/O) ports to a microcontroller or processor in systems where the number of available GPIO pins is limited. The chip is widely used to expand the I/O capabilities via the I2C bus for communication.

PCA9539PW Application Scenarios:

1. I/O Expansion in Embedded Systems: Commonly used in embedded systems such as in home automation, industrial automation, or Internet of Things (IoT) devices, where more GPIOs are required for interfacing with sensors, LEDs, or other peripherals.

2. Control Functions in Consumer Electronics: Employed in consumer electronics like smartphones, tablets, and PCs to manage various control functionalities.

PCA9539PW Key Features and Parameters:

1. 16-Bit I/O Expansion: Offers sixteen additional I/O ports, each configurable as input or output.

2. I2C-Bus Interface: Compatible with the I2C-bus and SMBus, facilitating easy integration into most microcontroller-based systems.

3. Low Power Consumption: Designed for energy efficiency, suitable for battery-powered devices.

4. Programmable Polarity Inversion: Includes programmable polarity inversion for input ports.

5. Operating Voltage Range: Typically operates within a 2.3V to 5.5V range, accommodating various logic levels.

Circuit Connection Example: Expanding GPIOs in an IoT Device

Overview: Using PCA9539PW to increase the number of GPIOs available for a microcontroller in an Internet of Things (IoT) device.

1. Power Supply Connection: VDD (pin 24) should be linked to the microcontroller's power supply, typically within the 2.3V to 5.5V range.

2. Ground Connection: GND (pin 12) needs to be connected to the system's ground.

3. I2C Bus Integration: SDA (pin 23) and SCL (pin 22) are to be connected to the I2C data and clock lines of the microcontroller.

4. Configuring I/O Ports: P0.0 to P0.7 (pins 1-7) and P1.0 to P1.7 (pins 13-20) serve as the I/O ports, programmable as inputs or outputs as required.

5. I2C Address Setting: A0, A1, and A2 (pins 21, 20, and 19, respectively) must be set to define the I2C address of the device, connecting them to either VCC or GND.

Design Considerations:

1. Voltage Level Compatibility: Ensure that VDD matches the logic level voltage of the microcontroller.

2. I2C Address Configuration: Appropriately set A0, A1, and A2 to prevent conflicts on the I2C bus.

3. Pull-Up Resistors on I2C Lines: Include suitable pull-up resistors on the SDA and SCL lines to ensure stable I2C communication.

4. Input/Output Port Configuration: Properly set up P0.0 to P1.7 as inputs or outputs based on the specific IoT application requirements.

5. Power Consumption Management: Be mindful of the low power consumption feature, particularly in battery-powered applications.

In conclusion, the PCA9539PW is an effective solution for expanding the GPIO capabilities of microcontroller systems, particularly beneficial in IoT applications and complex electronics. Its 16-bit I/O expansion, compatibility with I2C-bus standards, and energy-efficient design make it a valuable component in various applications where additional GPIOs are needed.
