What is the Additional Feature ?

Name: PCA9535PW,118
Brand: NXP USA Inc.
SKU: PCA9535PW,118
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

NXP USA Inc. PCA9535PW,118

Part No.:: PCA9535PW,118

Manufacturer:: NXP USA Inc.

Package:: 24-TSSOP (0.173, 4.40mm Width)

Datasheet:: PCA9535PW,118.pdf

Description:: IC I/O EXPANDER I2C 16B 24TSSOP

In Stock:: 2095

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PCA9535PW,118 Specifications

Package/Case:
24-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
NumberofI/O:
16
Interface:
I²C, SMBus
InterruptOutput:
Yes
Features:
POR
OutputType:
Push-Pull
Current-OutputSource/Sink:
10mA, 25mA
ClockFrequency:
400 kHz
Voltage-Supply:
2.3V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

PCA9535PW,118 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PCA9535PW,118 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PCA9535PW,118 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PCA9535PW,118 information

Views：

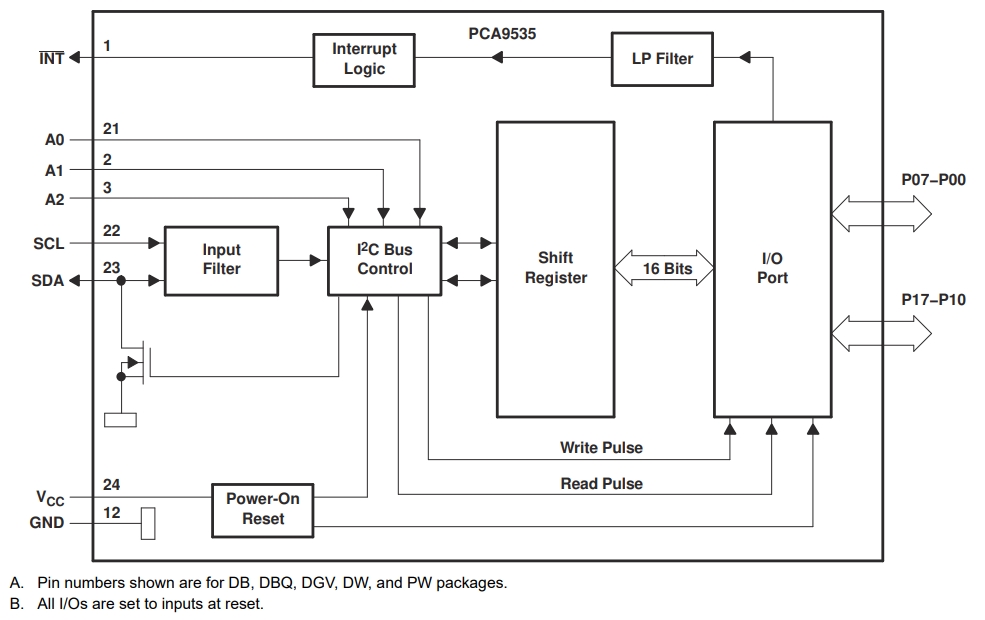

PCA9535PW,118 Typical application Circuitry

PCA9535PW,118

The PCA9535PW,118 is a 16-bit I2C-bus and SMBus I/O expander. It is designed to provide additional input/output (I/O) ports to a microcontroller or processor, particularly in systems where the number of available GPIO pins is limited. This chip expands the I/O capabilities using the I2C bus for communication.

PCA9535PW,118 Application Scenarios:

1. I/O Expansion in Embedded Systems: Ideal for embedded systems, such as home automation, industrial controls, or Internet of Things (IoT) devices, where more GPIOs are needed for interfacing with sensors, LEDs, or other peripherals.

2. Control Functions in Consumer Electronics: Used in consumer electronics like smartphones, tablets, and PCs for managing various control functions.

PCA9535PW,118 Key Features and Parameters:

1. 16-Bit I/O Ports: The PCA9535PW,118 provides sixteen additional I/O ports, configurable as inputs or outputs.

2. I2C-Bus Interface: Compatible with the I2C-bus and SMBus, ensuring easy integration into most microcontroller-based systems.

3. Low Power Consumption: Designed for energy efficiency, making it suitable for battery-powered applications.

4. Programmable Polarity Inversion: Includes the option for programmable polarity inversion on the input ports.

5. Wide Voltage Range: Operates within a voltage range of 2.3V to 5.5V, accommodating various logic levels.

Circuit Connection Example: Expanding GPIOs in an IoT Device

Overview: Implementing PCA9535PW,118 to increase the number of GPIOs available for a microcontroller in an IoT device.

1. Power Supply Integration: VDD (pin 24) should be connected to the microcontroller's power supply, typically within the 2.3V to 5.5V range.

2. System Ground Connection: GND (pin 12) needs to be connected to the system's ground.

3. I2C Bus Connectivity: SDA (pin 23) and SCL (pin 22) should be linked to the I2C data and clock lines of the microcontroller.

4. Configuring I/O Ports: P0.0 to P0.7 (pins 1-7) and P1.0 to P1.7 (pins 13-20) serve as the I/O ports, configurable as input or output based on the specific requirements of the IoT application.

5. I2C Address Configuration: A0, A1, and A2 (pins 21, 20, and 19, respectively) must be set to define the I2C address of the device, by connecting them to VCC or GND as per the desired address scheme.

Design Considerations:

1. Voltage Level Compatibility: Ensure that VDD is compatible with the logic level of the microcontroller.

2. I2C Addressing Configuration: Correctly set A0, A1, and A2 to prevent address conflicts on the I2C bus.

3. Pull-Up Resistors for I2C Lines: Include suitable pull-up resistors on the SDA and SCL lines for stable I2C communication.

4. I/O Pin Configuration: Appropriately configure P0.0 to P1.7 as inputs or outputs, depending on the IoT device's needs.

5. Power Consumption Management: Be mindful of the low power consumption feature, especially in battery-powered applications.

In summary, the PCA9535PW,118 is a highly effective solution for expanding the GPIO capabilities of microcontroller systems, particularly in IoT applications and complex electronics. Its 16-bit I/O expansion, compatibility with I2C-bus standards, and energy-efficient design make it a valuable component for various applications where additional GPIOs are essential.

PCA9535PW,118 FAQ

1. How to order PCA9535PW,118 on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that PCA9535PW,118 is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the PCA9535PW,118. All suppliers must pass our qualification reviews before they can publish their products including PCA9535PW,118 on icwhale.com; we pay more attention to the channels and quality of PCA9535PW,118 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the PCA9535PW,118 price and inventory displayed accurate?

The price and inventory of PCA9535PW,118 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of PCA9535PW,118?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the PCA9535PW,118 we delivered, we will accept the replacement or return of the PCA9535PW,118 only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of PCA9535PW,118.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
