What is the Additional Feature ?

Name: PCA9534PWR
Brand: Texas Instruments
SKU: PCA9534PWR
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments PCA9534PWR

Part No.:: PCA9534PWR

Manufacturer:: Texas Instruments

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:: PCA9534PWR.pdf

Description:: IC I/O EXPANDER I2C 8B 16TSSOP

In Stock:: 3667

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PCA9534PWR Specifications

Package/Case:
16-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
NumberofI/O:
8
Interface:
I²C, SMBus
InterruptOutput:
Yes
Features:
POR
OutputType:
Push-Pull
Current-OutputSource/Sink:
10mA, 25mA
ClockFrequency:
400 kHz
Voltage-Supply:
2.3V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

PCA9534PWR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PCA9534PWR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PCA9534PWR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PCA9534PWR information

Views：

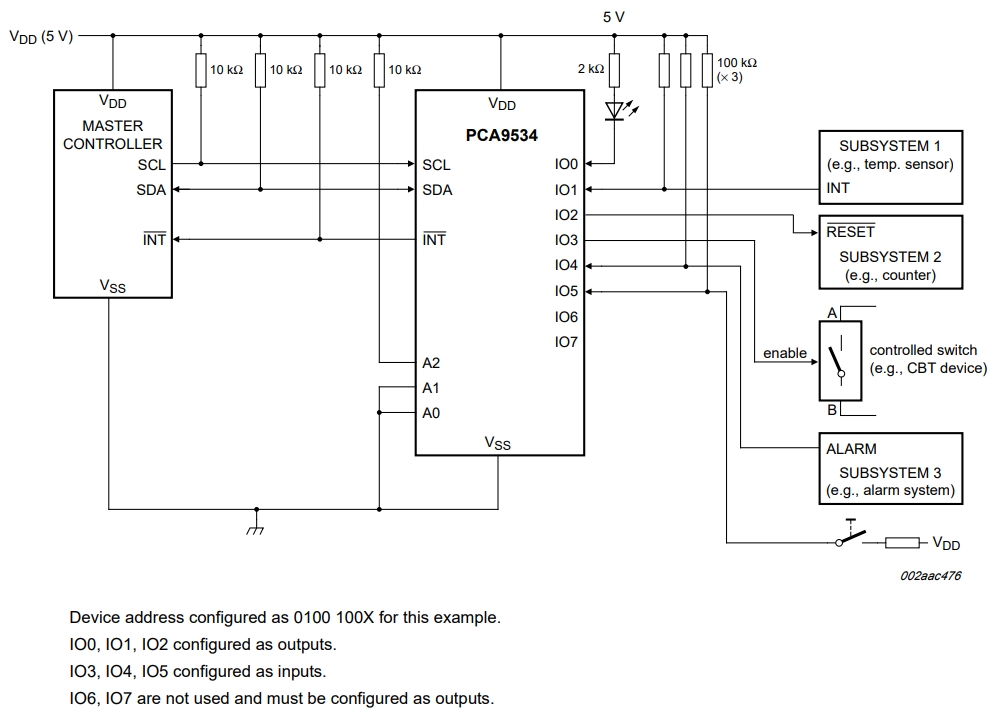

PCA9534PWR Typical application Circuitry

PCA9534PWR

The PCA9534PWR is an 8-bit I2C-bus and SMBus low-power I/O expander. It is designed to enhance the capabilities of microcontrollers and processors by providing additional general-purpose input/output (GPIO) ports, especially in applications where the number of available GPIO pins is limited.

PCA9534PWR Application Scenarios:

1. I/O Expansion in Embedded Systems: Widely used to add more GPIOs to microcontrollers in embedded systems, such as in home automation, industrial controls, or IoT devices.

2. Control Functions in Consumer Electronics: Utilized in consumer electronics for controlling various functionalities, like managing LEDs, buttons, or other peripherals.

PCA9534PWR Key Features and Parameters:

1. 8-Bit I/O Expansion: Offers eight additional GPIOs that can be individually set as inputs or outputs.

2. I2C-Bus Interface: Compatible with I2C-bus and SMBus, facilitating easy integration into most microcontroller-based systems.

3. Low Power Consumption: Designed for energy efficiency, making it suitable for battery-powered applications.

4. Configurable Polarity Inversion: Includes programmable polarity inversion for input ports.

Circuit Connection Example: Expanding GPIOs in an IoT Device

Overview: Implementing PCA9534PWR to expand the GPIO capabilities of a microcontroller in an Internet of Things (IoT) device.

1. Power Supply Connection: VCC (pin 16) should be linked to the microcontroller's power supply, typically within a range of 2.3V to 5.5V.

2. Establishing Ground Connection: The system's ground must be linked to GND (pin 8).

3. I2C Bus Integration: SDA (pin 14) and SCL (pin 15) are to be connected to the I2C data and clock lines of the microcontroller.

4. Configuring I/O Ports: P0 to P7 (pins 1-7 and 9-12) serve as configurable I/O ports, which can be set up as inputs or outputs as required.

5. I2C Address Setting: A0, A1, and A2 (pins 13, 5, and 6, respectively) must be configured to establish the specific I2C address for the expander, connecting them to VCC or GND depending on the desired address.

Design Considerations:

1. Matching the Voltage Levels: Ensure that VCC is compatible with the logic level of the microcontroller.

2. I2C Addressing Configuration: Correctly set A0, A1, and A2 to prevent I2C address conflicts.

3. Inclusion of Pull-Up Resistors on I2C Lines: Include suitable pull-up resistors on the SDA and SCL lines for reliable I2C communication.

4. Proper Configuration of I/O Ports: Set P0 to P7 as input or output according to the specific requirements of the IoT application.

In summary, the PCA9534PWR is an efficient solution for expanding the GPIO capabilities of microcontroller systems, particularly useful in IoT applications and embedded systems. Its compatibility with I2C-bus standards, low power consumption, and flexible pin configuration make it a valuable component in various electronic applications.
