NXP USA Inc. PCA9534PW,112

Part No.:: PCA9534PW,112

Manufacturer:: NXP USA Inc.

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:: PCA9534PW,112.pdf

Description:: IC I/O EXPANDER I2C 8B 16TSSOP

In Stock:: 2350

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PCA9534PW,112 Specifications

Package/Case:
16-TSSOP (0.173, 4.40mm Width)
Packaging:
Tube,Tube
Series:
-
ProductStatus:
Obsolete
NumberofI/O:
8
Interface:
I²C, SMBus
InterruptOutput:
Yes
Features:
POR
OutputType:
Push-Pull
Current-OutputSource/Sink:
10mA, 25mA
ClockFrequency:
400 kHz
Voltage-Supply:
2.3V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

PCA9534PW,112 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PCA9534PW,112 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PCA9534PW,112 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PCA9534PW,112 information

Views：

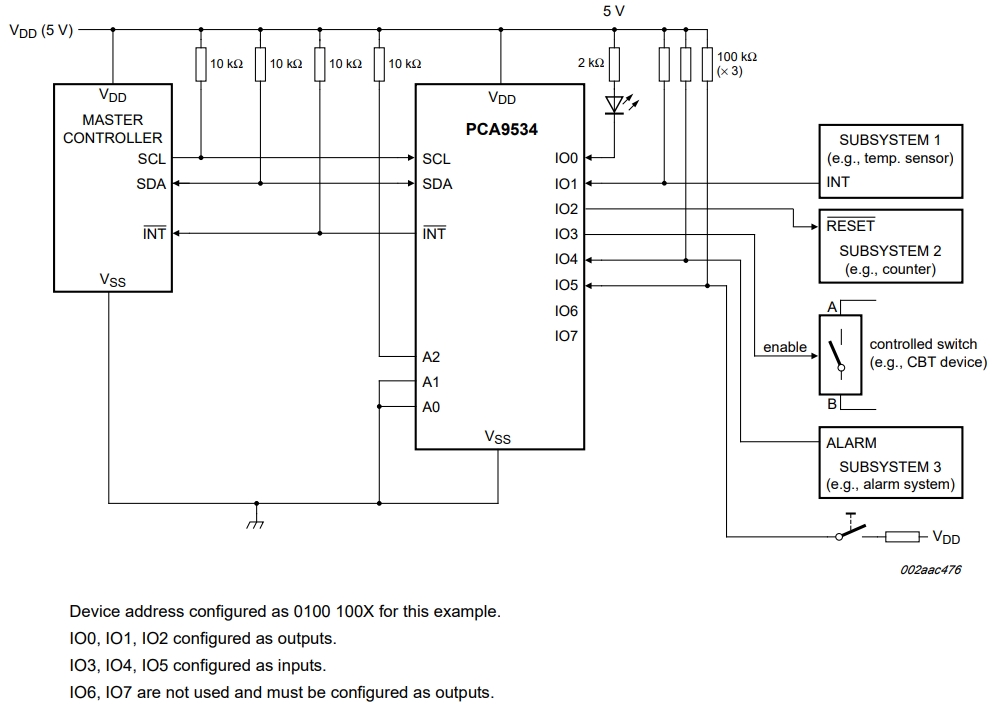

PCA9534PW,112 Typical application Circuitry

PCA9534PW,112

The PCA9534PW,112 is an 8-bit I2C-bus and SMBus I/O expander. This chip is designed to provide additional general-purpose I/Os (GPIO) for a microcontroller or processor using the I2C bus. It is particularly useful in applications where the number of available pins on the microcontroller is limited and additional inputs or outputs are needed.

PCA9534PW,112 Application Scenarios:

1. I/O Expansion in Microcontroller-Based Systems: Widely used in embedded systems where additional GPIOs are required for interfacing with switches, sensors, LEDs, or other peripherals.

2. Control Functions in Consumer Electronics: Common in consumer electronics, such as smartphones and personal computers, for controlling various functions.

PCA9534PW,112 Key Features and Parameters:

1. 8-Bit I/O Ports: Offers eight additional I/O pins that can be individually configured as input or output.

2. I2C-Bus Compatibility: Easily integrates into systems with an I2C interface.

3. Low Power Consumption: Efficient design suitable for battery-powered applications.

4. Programmable Polarity Inversion: Includes a programmable polarity inversion feature for the input port.

Circuit Connection Example: Expanding GPIO in an Embedded System

Overview: Using PCA9534PW,112 to extend the GPIO capabilities of a microcontroller in an embedded application.

1. Power Supply Connection:

- VCC (pin 16) should be connected to the microcontroller's power supply, usually in the range of 2.3V to 5.5V.

2. Grounding the Device:

- GND (pin 8) needs to be connected to the system's ground.

3. I2C Bus Integration:

- SDA (pin 14) and SCL (pin 15) are to be linked to the microcontroller's I2C data and clock lines.

4. Configuring the I/O Ports:

- P0 to P7 (pins 1-7 and 9-12) are the I/O ports available for input or output configuration as required.

5. Setting the I2C Address:

- A0, A1, and A2 (pins 13, 5, and 6, respectively) must be configured to establish the I2C address, connecting them to VCC or GND as needed.

Design Considerations:

1. Voltage Level Matching: Ensure VCC is compatible with the microcontroller's logic levels.

2. I2C Address Configuration: Correctly set the A0, A1, and A2 pins to avoid conflicts on the I2C bus.

3. I2C Line Pull-up Resistors: Install appropriate pull-up resistors on the SDA and SCL lines.

4. Proper Configuration of I/O Pins: Configure P0 to P7 as inputs or outputs based on the specific requirements of the application.

In conclusion, the PCA9534PW,112 is an effective solution for expanding the I/O capabilities of microcontroller systems, especially in scenarios where additional GPIOs are required. Its low power consumption, I2C compatibility, and flexibility in pin configuration make it a valuable component in diverse electronic applications, ranging from embedded systems to consumer electronics.
