Infineon Technologies IRS21864STRPBF

Part No.:: IRS21864STRPBF

Manufacturer:: Infineon Technologies

Package:: 14-SOIC (0.154, 3.90mm Width)

Datasheet:: IRS21864STRPBF.pdf

Description:: IC GATE DRVR HI/LOW SIDE 14SOIC

In Stock:: 3761

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IRS21864STRPBF Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
DrivenConfiguration:
High-Side or Low-Side
ChannelType:
Independent
NumberofDrivers:
2
GateType:
IGBT, N-Channel MOSFET
Voltage-Supply:
10V ~ 20V
LogicVoltage-VILVIH:
0.8V, 2.5V
Current-PeakOutput(SourceSink):
4A, 4A
InputType:
Non-Inverting
HighSideVoltage-Max(Bootstrap):
600 V
Rise/FallTime(Typ):
22ns, 18ns
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

IRS21864STRPBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IRS21864STRPBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IRS21864STRPBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IRS21864STRPBF information

Views：

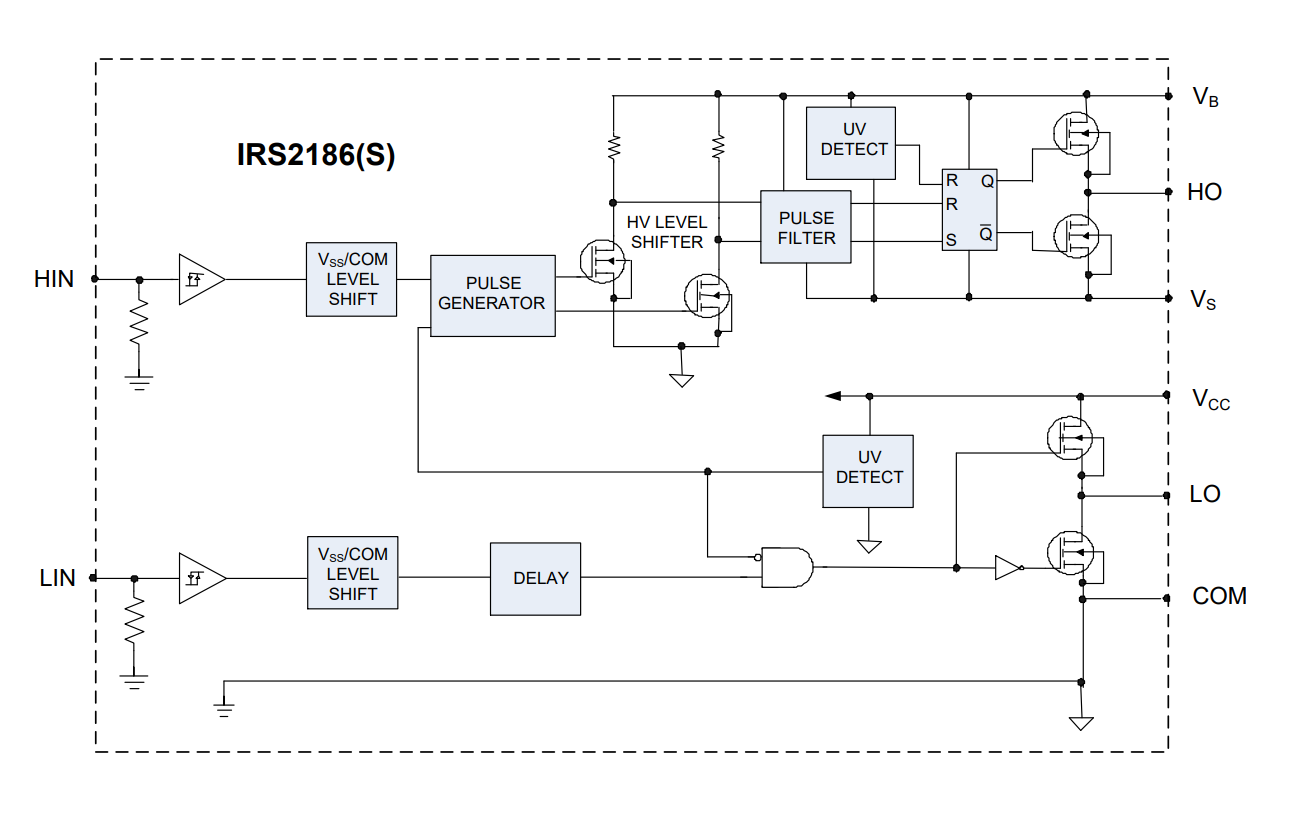

IRS21864STRPBF Typical application Circuitry

IRS21864STRPBF

The IRS21864STRPBF is an esteemed member of the driver IC family, designed to efficiently manage and switch IGBTs and MOSFETs. Developed by Infineon Technologies, the IRS21864STRPBF boasts an insulated gate bipolar transistor (IGBT) driver capability. The chip is endowed with specialized functionalities to provide protection, gate drive, and optimal system performance. A closer look at the IRS21864STRPBF's specifications and its interface instructions is essential to harness its full potential.

1. VCC (Logic Supply Voltage): Connect this pin to a clean DC voltage supply, usually in the range of 10-20V. A decoupling capacitor between VCC and VSS is highly recommended to ensure voltage stability.

2. VSS (Logic Ground): This serves as the logic ground for the IRS21864STRPBF. Connect this directly to the system's ground plane for noise-free operation.

3. IN (Input Signal): Drive this pin with the PWM or control signal intended to modulate the connected IGBT or MOSFET. This input is optoisolator-compatible, making it suitable for isolated control signals.

4. SD (Shut Down): An essential feature of the IRS21864STRPBF is its shutdown capability. Applying a logic signal to this pin will shut down both the high and low outputs, offering a safe method for emergency stops or fault conditions.

5. LO (Low-Side Output): This is the output driver for the low-side IGBT or MOSFET. It sources/sinks the gate charge for the connected power switch. Connect this directly to the gate terminal of the low-side switching device.

6. HO (High-Side Output): This terminal drives the gate of the high-side IGBT or MOSFET. Secure HO to the gate of the high-side switch. To reduce parasitic inductances, make sure this connection is as short as feasible.

7. VS (Floating Ground): This pin serves as the reference for the high-side output. Attach it to the high-side MOSFET's source or the high-side IGBT's emitter.

8. VB (High-Side Floating Bias Voltage): Connect this to a floating supply voltage source. Typically, a bootstrap circuit, composed of a diode and a capacitor, is connected here to provide the necessary bias voltage for the high-side driver.

9. Added Circuitry Insights:

- Bootstrap Arrangement: Incorporating a bootstrap diode and capacitor between the VCC and VB pins, with the negative terminal of the capacitor connected to VS, is pivotal for the IRS21864STRPBF's high-side drive functionality.

- Protection Mechanisms: For the safeguarding of the IRS21864STRPBF, a gate resistor to dampen potential oscillations and a zener diode to clamp voltage spikes at the gate are commonly employed.

- Operational Caution: Ensure that the voltages and signals applied to the IRS21864STRPBF are within the manufacturer's specified limits to avoid potential damage.
