International Rectifier IRS2181STRPBF

Part No.:: IRS2181STRPBF

Manufacturer:: International Rectifier

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: IRS2181STRPBF.pdf

Description:: IRS2181 - GATE DRIVER

In Stock:: 3729

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IRS2181STRPBF Specifications

Packaging:
Bulk
Series:
-
ProductStatus:
Active
DrivenConfiguration:
Half-Bridge
ChannelType:
Independent
NumberofDrivers:
2
GateType:
IGBT, N-Channel MOSFET
Voltage-Supply:
10V ~ 20V
LogicVoltage-VILVIH:
0.8V, 2.5V
Current-PeakOutput(SourceSink):
1.9A, 2.3A
InputType:
Non-Inverting
HighSideVoltage-Max(Bootstrap):
600 V
Rise/FallTime(Typ):
40ns, 20ns
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

IRS2181STRPBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IRS2181STRPBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IRS2181STRPBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IRS2181STRPBF information

Views：

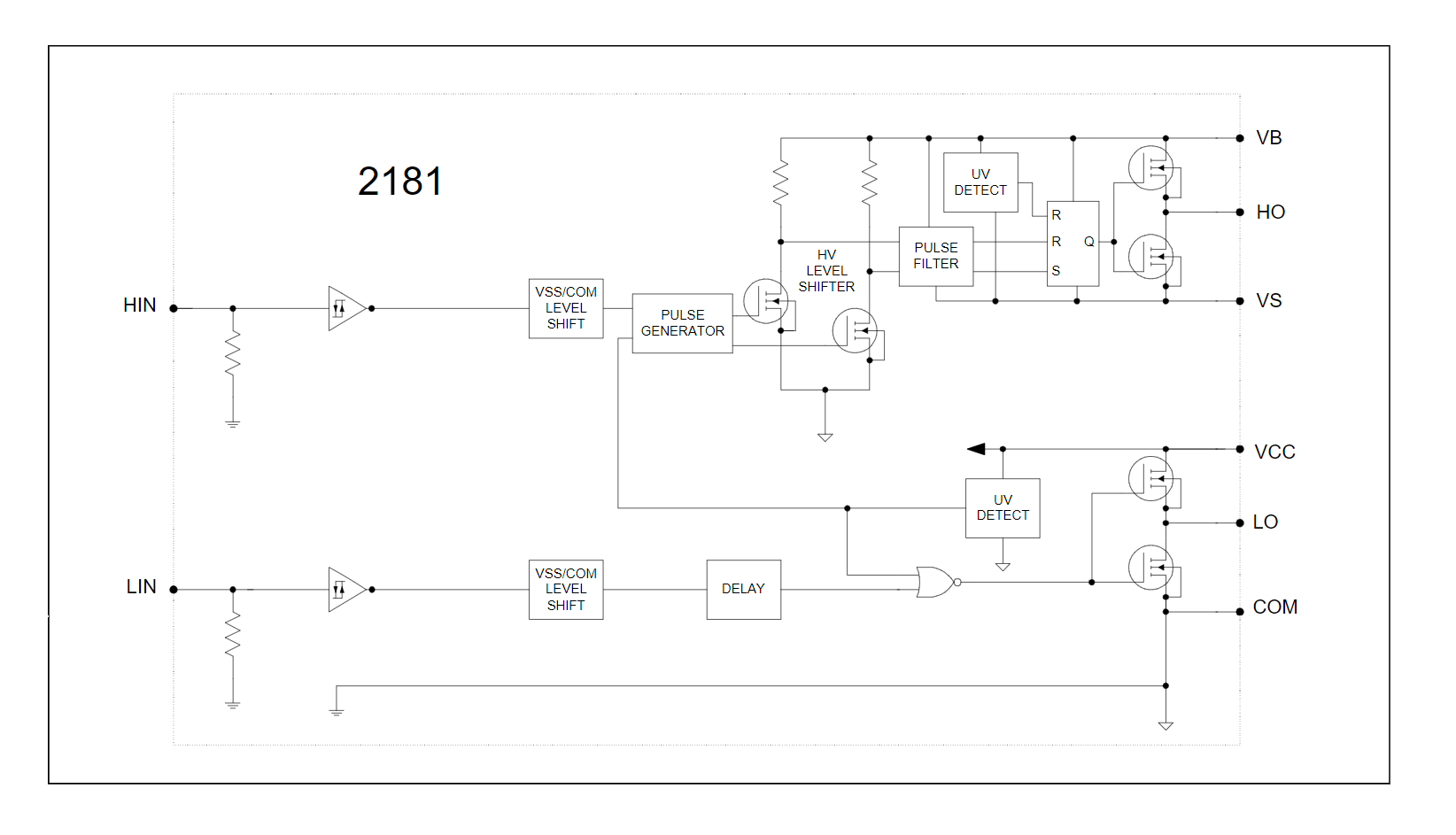

IRS2181STRPBF Typical application Circuitry

IRS2181STRPBF

The IRS2181STRPBF hails from the renowned family of IR's high-voltage, high-speed gate drivers. Specifically engineered for efficient driving of power MOSFETs and IGBTs, the IRS2181STRPBF stands out with its sophisticated bootstrap operation and a vast array of protection features. Its optimal design ensures the efficient conversion of pulse width modulated (PWM) signals into the required drive signals for high-power transistors, playing a pivotal role in switching applications. Let's embark on a comprehensive exploration of the IRS2181STRPBF, focusing on its pin structure and the nuances of incorporating it into electronic circuits.

1. VCC (Supply Voltage): This pin feeds the logic circuitry of the IRS2181STRPBF. A stable voltage, typically between 10-20V, should be connected here. As a best practice, a bypass capacitor to the COM pin is recommended to filter out voltage transients.

2. HIN (High Side Input) and LIN (Low Side Input): These are the logic input pins. HIN controls the high-side gate driver while LIN modulates the low-side driver. Connect these pins to the PWM output from your controller or microcontroller. In order to avoid the high and low side switches from conducting simultaneously, proper timing of the input signal is essential.

3. HO (High Side Output) and LO (Low Side Output): As gate driver outputs, HO is linked to the gate of the high-side MOSFET or IGBT, and LO connects to the gate of the low-side counterpart. An external resistor can be added between these pins and their respective gates to manage the switch-on/off transition speeds.

4. COM (Common Ground): This serves as the reference ground for the IRS2181STRPBF's internal circuits. Ensure it's solidly grounded to your system's common ground.

5. VS (Floating Source): This pin is tied to the source of the high-side MOSFET or IGBT. It also connects to the negative terminal of the bootstrap capacitor.

6. VB (High Side Floating Supply): Primarily, VB is connected to a bootstrap capacitor's positive terminal, which provides the necessary voltage to drive the high-side switch. It sources the drive voltage for the high-side MOSFET or IGBT via the HO pin.

7. Astute Circuit Considerations:

- Bootstrap Configuration: A distinct diode and capacitor combo should be configured for the bootstrap supply. Link the diode's anode to VCC and its cathode to VB, while the capacitor should bridge VB and VS. This arrangement ensures the high-side driver gets the required voltage.

- Input Filtering: Given the sensitive nature of the HIN and LIN pins, integrating a small resistor and capacitor network can filter out unwanted noise and prevent false triggering.

- Gate Protection: With IRS2181STRPBF's susceptibility to voltage transients, a zener diode across the gate and source (or emitter) of your power switch offers an extra protective layer.

In summation, the IRS2181STRPBF is a testament to refined gate driving technology, coupling efficiency with safety in one compact package. To truly harness its prowess, a meticulous approach to its pin-level connections and circuit configurations is paramount. As always, referencing the IRS2181STRPBF datasheet will ensure that designers remain aligned with recommended practices, allowing them to craft reliable and optimized systems.
