Infineon Technologies IRS2003STRPBF

Part No.:: IRS2003STRPBF

Manufacturer:: Infineon Technologies

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: IRS2003STRPBF.pdf

Description:: IC GATE DRVR HALF-BRIDGE 8SOIC

In Stock:: 2246

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IRS2003STRPBF Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Not For New Designs
DrivenConfiguration:
Half-Bridge
ChannelType:
Independent
NumberofDrivers:
2
GateType:
IGBT, N-Channel MOSFET
Voltage-Supply:
10V ~ 20V
LogicVoltage-VILVIH:
0.8V, 2.5V
Current-PeakOutput(SourceSink):
290mA, 600mA
InputType:
Inverting, Non-Inverting
HighSideVoltage-Max(Bootstrap):
200 V
Rise/FallTime(Typ):
70ns, 35ns
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

IRS2003STRPBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IRS2003STRPBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IRS2003STRPBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IRS2003STRPBF information

Views：

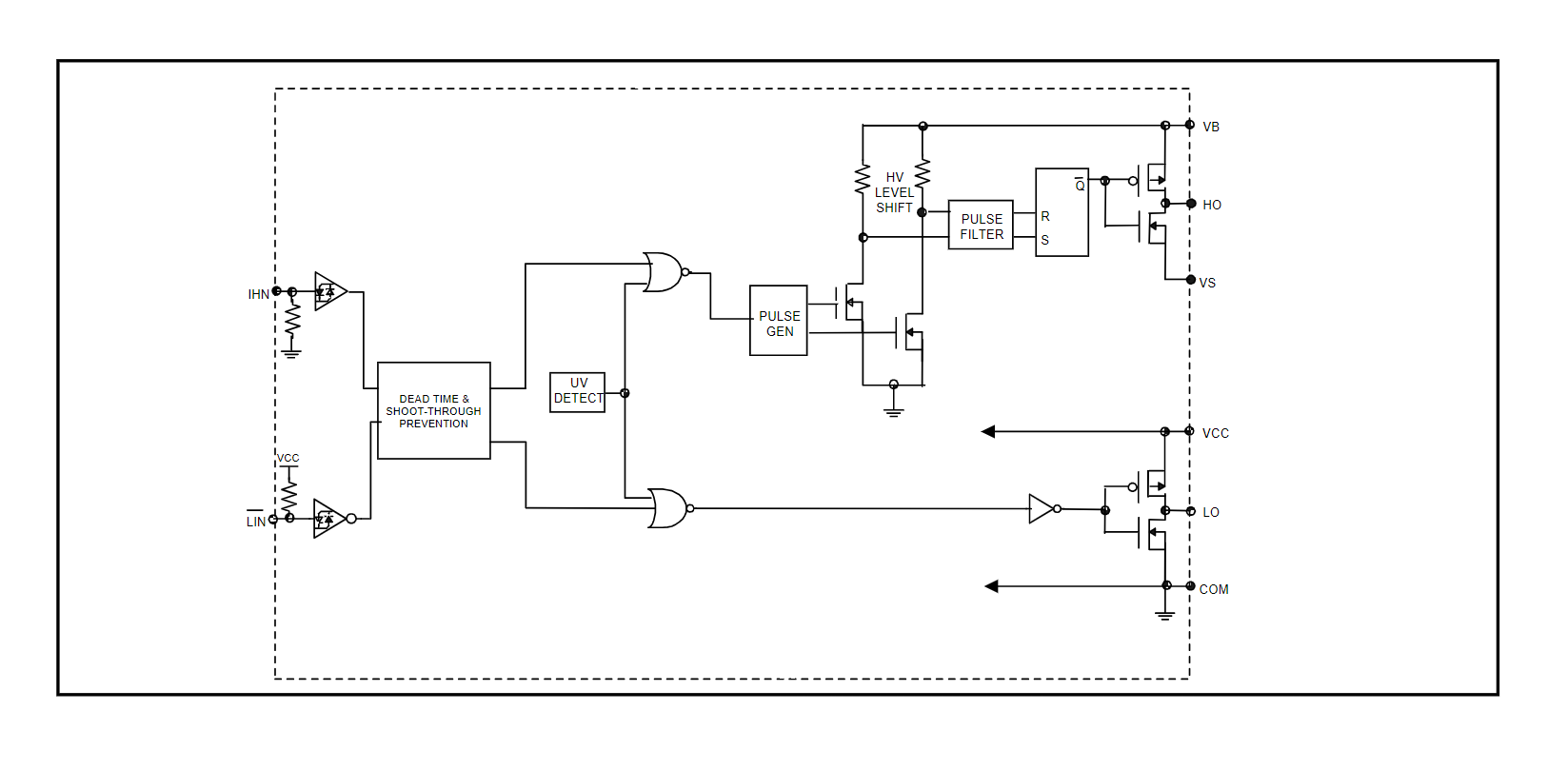

IRS2003STRPBF Typical application Circuitry

IRS2003STRPBF

The IRS2003STRPBF, a component from the esteemed high voltage, high-speed power MOSFET and IGBT drivers family, exhibits commendable attributes in efficiency and operational speed. This element from Infineon's broad portfolio, renowned for superior electrical characteristics, facilitates robust design in high-frequency switching applications. Navigating through the intricacies of the IRS2003STRPBF entails an understanding of its pin configuration and an elaborate directive on circuit connectivity for optimal performance.

1. VCC (Supply Voltage): This pin powers the internal circuitry of the IRS2003STRPBF. Affix the VCC pin to a positive supply voltage, ensuring adherence to specifications delineated in the datasheet. Stabilizing this power connection with a decoupling capacitor to ground is advisable for maintaining supply integrity.

2. HIN (High-side Input) and LIN (Low-side Input): Serving as the logic inputs, HIN and LIN command the high-side and low-side driver stages, respectively. These terminals accommodate PWM signals, directing the operational states (on/off) of the external power MOSFET or IGBT. Connection from a microcontroller or PWM generator to these pins, often through a series gate resistor, is standard practice.

3. SD (Shutdown): The IRS2003STRPBF incorporates this pin for enhanced operational control, allowing for immediate shutdown of both driver outputs when triggered. Connect this pin to a logic signal for shutdown control, or to VCC if the feature is not required.

4. VSS (Ground): This terminal represents the device's ground reference. Secure a connection between VSS and the system ground to ensure electrical stability and a return path for the supply power.

5. LO (Low-side Driver Output) and HO (High-side Driver Output): These pins deliver the amplified signals for the gate terminals of the external power MOSFET or IGBT. LO connects to the gate of the low-side switch, while HO, often via a bootstrap circuit, links to the high-side switch's gate.

6. COM (Low-side Return): Acting as a reference for the high-side channel, the COM pin typically connects to the source of the low-side MOSFET or the emitter of the low-side IGBT.

7. Circuit Integration Refinements:

- Bootstrap Technique: The IRS2003STRPBF often employs a bootstrap circuit for the high-side drive (HO). This method necessitates a diode and a capacitor, with the diode's anode connected to VCC and the cathode to the bootstrap capacitor, linking COM and HO.

- Protective Measures: Consideration for protective components, such as a Schottky diode across the low-side MOSFET or IGBT, safeguards against potential reverse currents.

- Operational Checks: Post-integration, an imperative step entails a thorough verification under nominal conditions, assuring the IRS2003STRPBF's functionality before subjecting the system to full operational loads.

In essence, the IRS2003STRPBF is a cornerstone in contemporary high-efficiency power electronics, warranting careful attention during circuit integration. It's imperative to reference the specific datasheet for the IRS2003STRPBF during design and implementation, ensuring a system compliant with operational thresholds and leveraging the component's full prowess in application setups.
