Name: IR21844STRPBF
Brand: Infineon Technologies
SKU: IR21844STRPBF
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Infineon Technologies IR21844STRPBF

Part No.:: IR21844STRPBF

Manufacturer:: Infineon Technologies

Package:: 14-SOIC (0.154, 3.90mm Width)

Datasheet:: IR21844STRPBF.pdf

Description:: IC GATE DRVR HALF-BRIDGE 14SOIC

In Stock:: 2927

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IR21844STRPBF Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
DrivenConfiguration:
Half-Bridge
ChannelType:
Synchronous
NumberofDrivers:
2
GateType:
IGBT, N-Channel MOSFET
Voltage-Supply:
10V ~ 20V
LogicVoltage-VILVIH:
0.8V, 2.7V
Current-PeakOutput(SourceSink):
1.9A, 2.3A
InputType:
Non-Inverting
HighSideVoltage-Max(Bootstrap):
600 V
Rise/FallTime(Typ):
40ns, 20ns
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

IR21844STRPBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IR21844STRPBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IR21844STRPBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IR21844STRPBF information

Views：

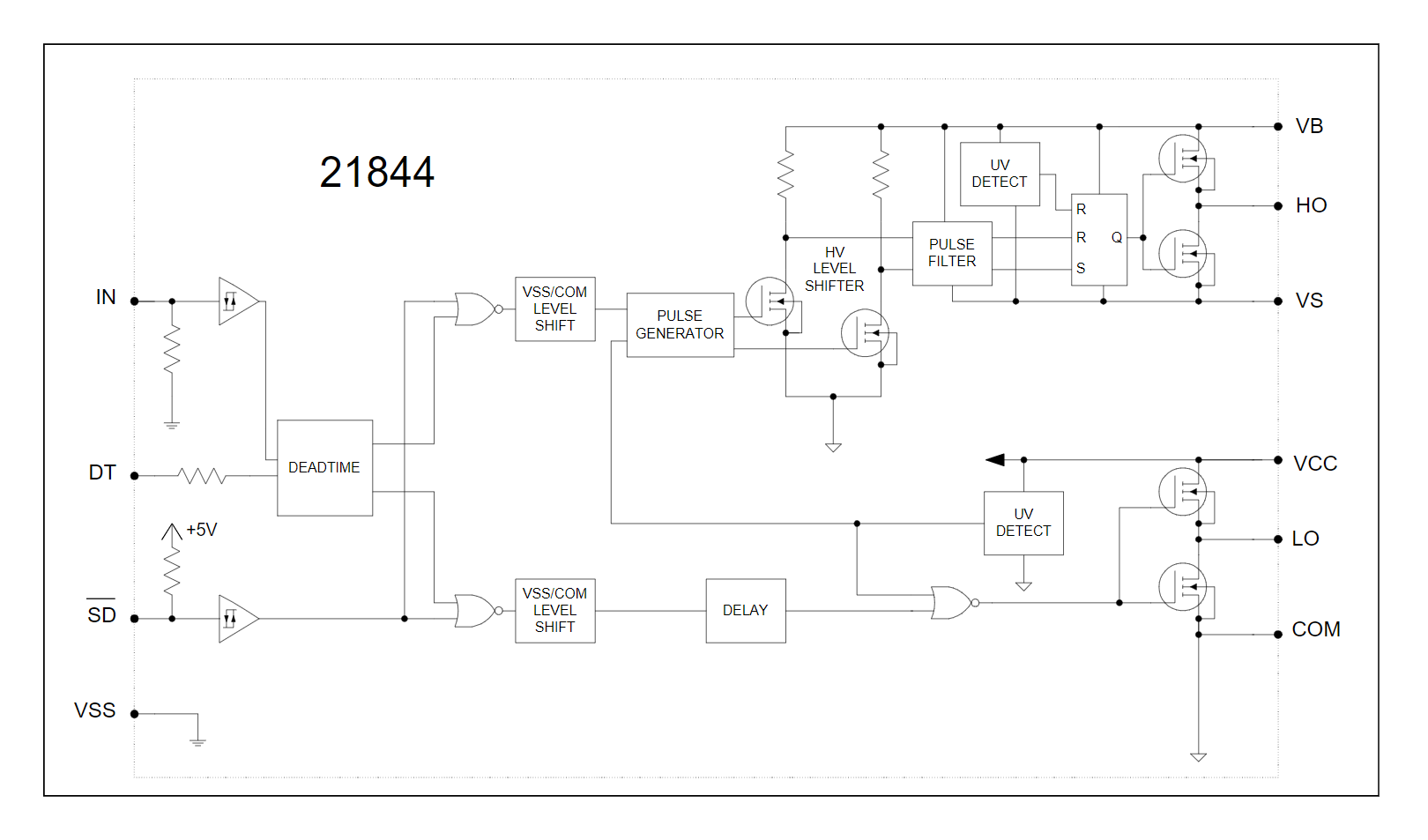

IR21844STRPBF Typical application Circuitry

IR21844STRPBF

The IR21844STRPBF is a distinguished half-bridge driver from the IR's (International Rectifier) renowned gate driver IC portfolio. Designed with cutting-edge HVIC (High Voltage Integrated Circuit) and latch immune CMOS technologies, the IR21844STRPBF is specifically crafted to manage both N-channel power MOSFETs and IGBTs in a range of configurations, with an emphasis on half-bridge topologies. As such, assimilating a detailed approach to embed the IR21844STRPBF within electronic systems, extending down to the individual pin levels, is crucial to tap into its full potential.

1. VCC: Catering as the logic power supply terminal, VCC is where a positive voltage (commonly between 10-20V) is introduced, powering the IC's internal operations.

2. LIN & HIN: Respectively signifying 'Logic Input for the Low Side Gate Driver' and 'Logic Input for the High Side Gate Driver', these pins accept PWM signals to steer the corresponding MOSFET or IGBT.

3. HO & LO: While 'HO' directs the gate drive output towards the high-side MOSFET or IGBT, 'LO' focuses on its low-side counterpart.

4. VSS: This anchor pin establishes the logic ground, interfacing with the system's common ground.

5. VB: A bootstrap-based high-side floating supply terminal, VB needs connection to an external capacitor that collaborates with the VS pin to provision the drive voltage for the high-side device.

6. VS: Complementing VB, this terminal connects both to the source of the high-side device and the negative facet of the bootstrap capacitor.

7. SD (Shutdown): This pin facilitates an external shutdown signal. Introducing a logic 'low' safely turns off both high and low side outputs.

8. VREF: This output offers a reference voltage, commonly utilized for protection circuits or other ancillary features.

9. COM: Serving as a reference ground, this pin is the common point for input and fault signaling.

10. ITRIP: An input for over-current shutdown, this pin, when used, ensures protection against excessive current scenarios.

11. CSH & CSL: These pins, respectively, monitor the high-side and low-side MOSFET or IGBT current via external shunt resistors.

12. Additional Integration Insights:

- Bootstrap Configuration: Leverage an external diode and capacitor to create the bootstrap reservoir for the high-side driver. This entails linking the diode's anode to VCC, its cathode to VB, and positioning the capacitor between VB and VS.

- Stabilization: Introducing a ceramic capacitor between VCC and VSS, preferably in close proximity to the IR21844STRPBF, aids in stability and noise mitigation.

13. Operational Precautions: Ensure synchronization of input signals to LIN and HIN to preclude 'shoot-through' or simultaneous conduction of both half-bridge components. Always operate within the specified voltage range on VCC as recommended in the IR21844STRPBF datasheet.
