Name: IR2183STRPBF
Brand: Infineon Technologies
SKU: IR2183STRPBF
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Infineon Technologies IR2183STRPBF

Part No.:: IR2183STRPBF

Manufacturer:: Infineon Technologies

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: IR2183STRPBF.pdf

Description:: IC GATE DRVR HALF-BRIDGE 8SOIC

In Stock:: 3114

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IR2183STRPBF Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
DrivenConfiguration:
Half-Bridge
ChannelType:
Independent
NumberofDrivers:
2
GateType:
IGBT, N-Channel MOSFET
Voltage-Supply:
10V ~ 20V
LogicVoltage-VILVIH:
0.8V, 2.7V
Current-PeakOutput(SourceSink):
1.9A, 2.3A
InputType:
Inverting, Non-Inverting
HighSideVoltage-Max(Bootstrap):
600 V
Rise/FallTime(Typ):
40ns, 20ns
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

IR2183STRPBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IR2183STRPBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IR2183STRPBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IR2183STRPBF information

Views：

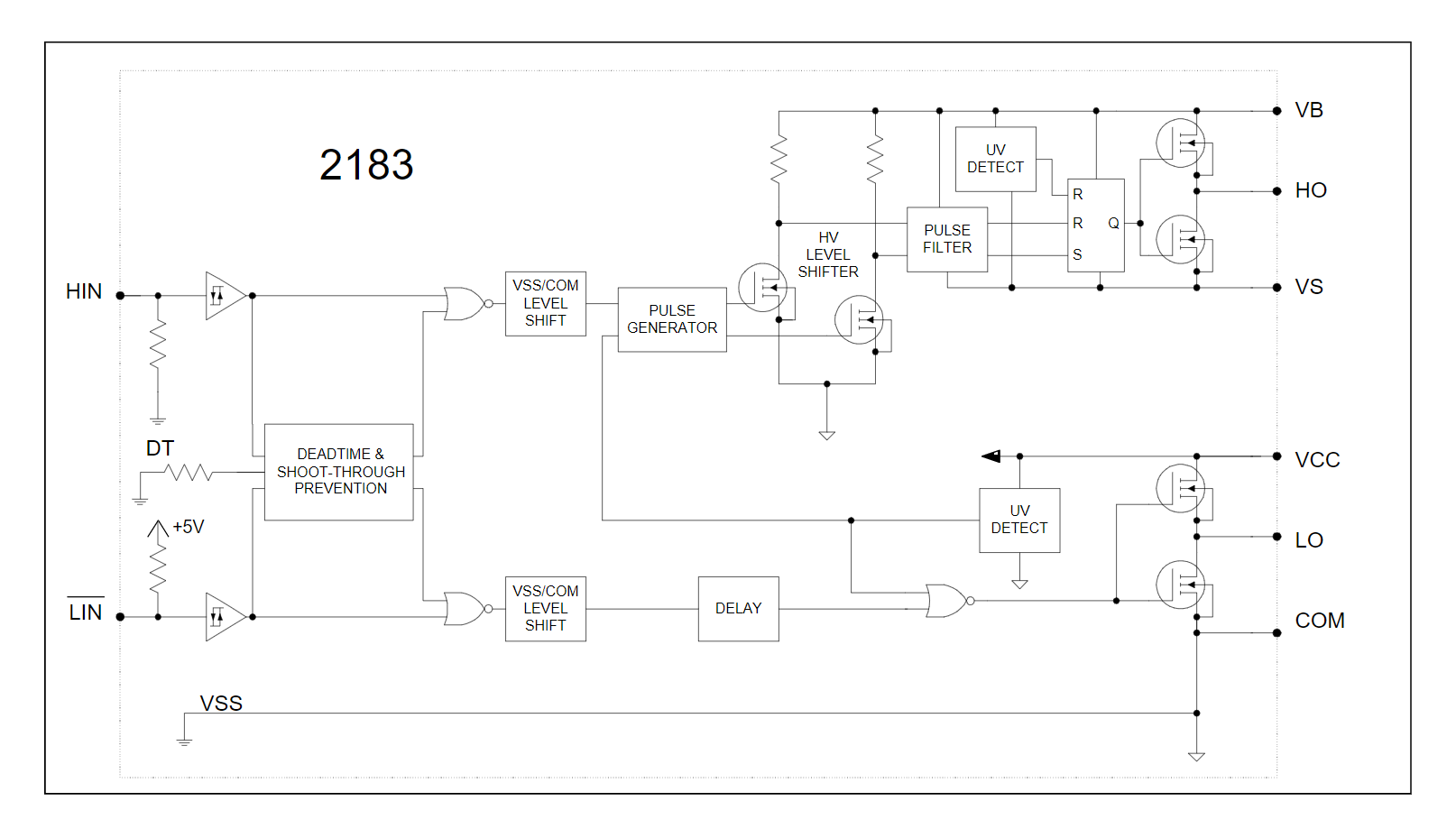

IR2183STRPBF Typical application Circuitry

IR2183STRPBF

The IR2183STRPBF is a distinguished member of International Rectifier's expansive range of gate driver ICs, meticulously designed to drive power MOSFETs and IGBTs. With its high voltage, high-speed capabilities, the IR2183STRPBF emerges as a staple in electronic circuits, especially for half-bridge configurations. Ensuring an impeccable integration of this chip mandates a nuanced grasp of its pin-level intricacies.

1. VCC: This terminal is the heartbeat of the logic side. Typically, a positive voltage within the 10-20V range powers the IC's inner workings through this node.

2. LIN: Acting as the logic gateway for the Low Side Gate Driver, LIN embraces the PWM (pulse width modulation) directive for steering the low-side MOSFET or IGBT. It's adept at interfacing with CMOS or LSTTL feed.

3. HIN: Tailored for the High Side Gate Driver, HIN harnesses the PWM influx for the high-side MOSFET or IGBT. It's proficiently aligned with CMOS or LSTTL inputs.

4. HO: This terminal emerges as the command conduit for the high-side switch, channeling its drive output to the high-side MOSFET or IGBT's gate.

5. LO: Orchestrating the low-side switch, LO discharges its drive payload directly to the gate of the pertinent MOSFET or IGBT.

6. VSS: Synonymous with logic grounding, this pin nestles comfortably with the overarching system ground.

7. VB: A pivotal node, VB associates with the floating supply for the high-side driver. Typically, a bootstrap capacitor bridges the gap between VB and VS, amassing energy vital for the high-side actuation.

8. VS: Aligning with the source of the high-side switch, VS also liaises with the bootstrap capacitor's negative frontier.

9. Additional Circuitry Considerations:

- Bootstrap Mechanism: To galvanize the high-side driver, the IR2183STRPBF leverages an external diode-capacitor ensemble. The diode's anode converses with VCC, while its cathode dialogues with VB. Concurrently, the capacitor forges a link between VB and VS.

- Decoupling Strategies: Station a ceramic capacitor (a typical value might be 100nF) in proximity to the IC, fostering a liaison between VCC and VSS. This ploy curtails noise and bolsters stability.

10. Operational Vigilance: When dispatching PWM signals to LIN and HIN, impeccable timing remains pivotal. This foresight negates potential cross-conduction or "shoot-through" misadventures within the half-bridge. A diligent perusal of the IR2183STRPBF's datasheet ensures the VCC voltage stays within permissible boundaries.
