Name: IR2153PBF
Brand: Infineon Technologies
SKU: IR2153PBF
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Infineon Technologies IR2153PBF

Part No.:: IR2153PBF

Manufacturer:: Infineon Technologies

Package:: 8-DIP (0.300, 7.62mm)

Datasheet:: IR2153PBF.pdf

Description:: IC GATE DRVR HALF-BRIDGE 8DIP

In Stock:: 380

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IR2153PBF Specifications

Packaging:
Bulk,Tube
Series:
-
ProductStatus:
Not For New Designs
DrivenConfiguration:
Half-Bridge
ChannelType:
Synchronous
NumberofDrivers:
2
GateType:
N-Channel MOSFET
Voltage-Supply:
10V ~ 15.6V
LogicVoltage-VILVIH:
-
Current-PeakOutput(SourceSink):
-
InputType:
RC Input Circuit
HighSideVoltage-Max(Bootstrap):
600 V
Rise/FallTime(Typ):
80ns, 45ns
OperatingTemperature:
-40°C ~ 125°C (TJ)
MountingType:
Through Hole

IR2153PBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IR2153PBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IR2153PBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IR2153PBF information

Views：

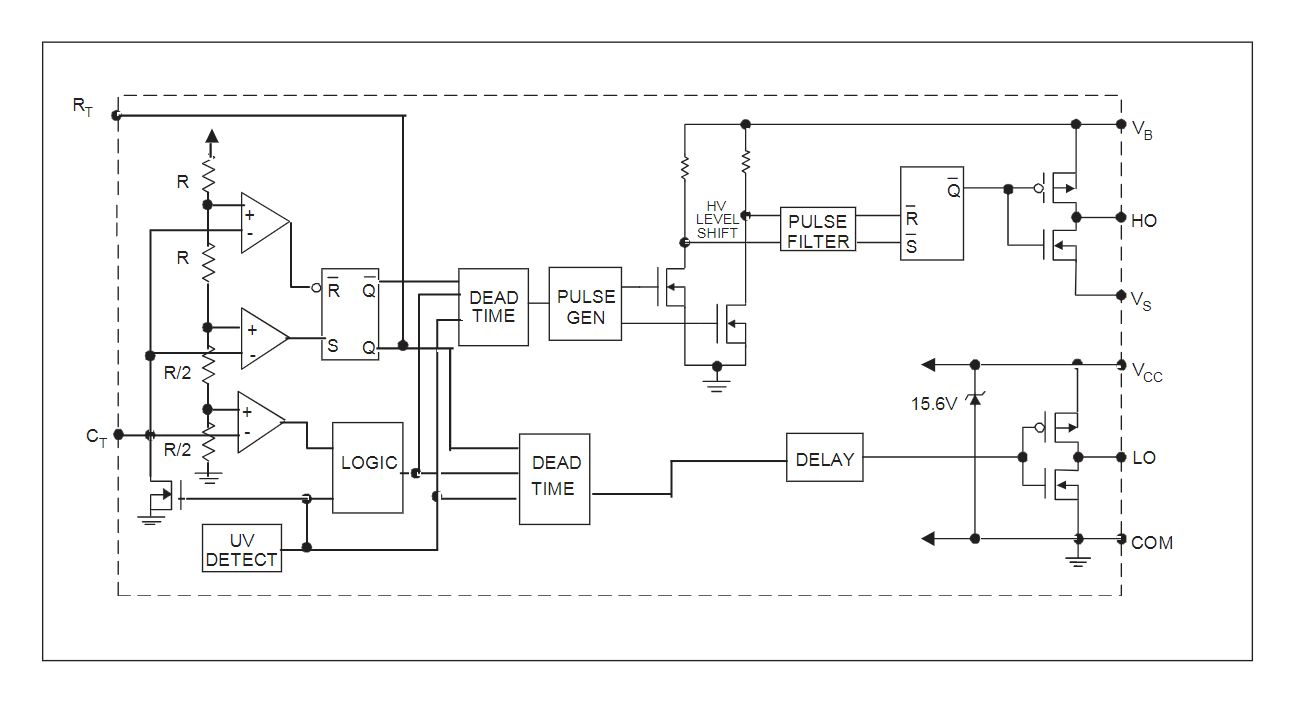

IR2153PBF Typical application Circuitry

IR2153PBF

The IR2153PBF is a distinguished self-oscillating half-bridge driver from International Rectifier's renowned gate driver IC lineage. Constructed with high-voltage IC technology, the IR2153PBF has been designed to be a versatile solution for driving N-channel MOSFETs and IGBTs. Because of its inbuilt oscillator, which makes the circuit design simpler, it is a preferred option for many switching power applications. Below, we delve into the nitty-gritty of interfacing the IR2153PBF in a circuit, ensuring each pin's function and connectivity is lucidly addressed.

1. VCC: The input voltage for the supply is this pin. Link a regulated voltage, typically in the range of 10-20V, to this pin to empower the IC's internal operations.

2. COM: Essentially the ground reference, connect this pin directly to the system's ground plane.

3. CT: This terminal is where the timing capacitor for the internal oscillator gets connected. It is central in defining the switching frequency of the MOSFET or IGBT being driven.

4. RT: To set the oscillator frequency, affix a resistor from this pin to the ground (COM). The value of this resistor, in tandem with the CT capacitor, delineates the frequency.

5. VB: Acting as the high side floating supply voltage pin, this terminal usually connects to a bootstrap capacitor's positive end, which stores energy to drive the high-side gate.

6. VS: This is the high side floating supply voltage return. Affix this pin to the source of your high-side MOSFET or IGBT and to the negative end of the bootstrap capacitor.

7. LO (Low Side Output): Directly linked to the gate of the low-side MOSFET or IGBT, this pin transmits the output drive signal for the low-side switch.

8. HO (High Side Output): Facilitating the drive to the high-side MOSFET or IGBT, this pin outputs the signal for the high-side switch.

9. Constructive Suggestions:

- Bootstrap Arrangement: To furnish the high-side driver, a bootstrap configuration comprising an external diode and capacitor is pivotal. The diode's anode should be linked to VCC, its cathode to VB, with the capacitor seated between the VB and VS pins.

- Noise Counteraction: To suppress noise and bolster stability, position a ceramic capacitor (like a 100nF) proximal to the IR2153PBF, bridging VCC and COM.

10. Operational Precautions: Avoid simultaneous conduction of both high and low-side MOSFETs or IGBTs. Proper timing of the input signals will mitigate "shoot-through" risks in the half-bridge topology.
