Name: IR2136STRPBF
Brand: Infineon Technologies
SKU: IR2136STRPBF
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Infineon Technologies IR2136STRPBF

Part No.:: IR2136STRPBF

Manufacturer:: Infineon Technologies

Package:: 28-SOIC (0.295, 7.50mm Width)

Datasheet:: IR2136STRPBF.pdf

Description:: IC GATE DRVR HALF-BRIDGE 28SOIC

In Stock:: 2597

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IR2136STRPBF Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
DrivenConfiguration:
Half-Bridge
ChannelType:
3-Phase
NumberofDrivers:
6
GateType:
IGBT, N-Channel MOSFET
Voltage-Supply:
10V ~ 20V
LogicVoltage-VILVIH:
0.8V, 3V
Current-PeakOutput(SourceSink):
200mA, 350mA
InputType:
Inverting
HighSideVoltage-Max(Bootstrap):
600 V
Rise/FallTime(Typ):
125ns, 50ns
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

IR2136STRPBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IR2136STRPBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IR2136STRPBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IR2136STRPBF information

Views：

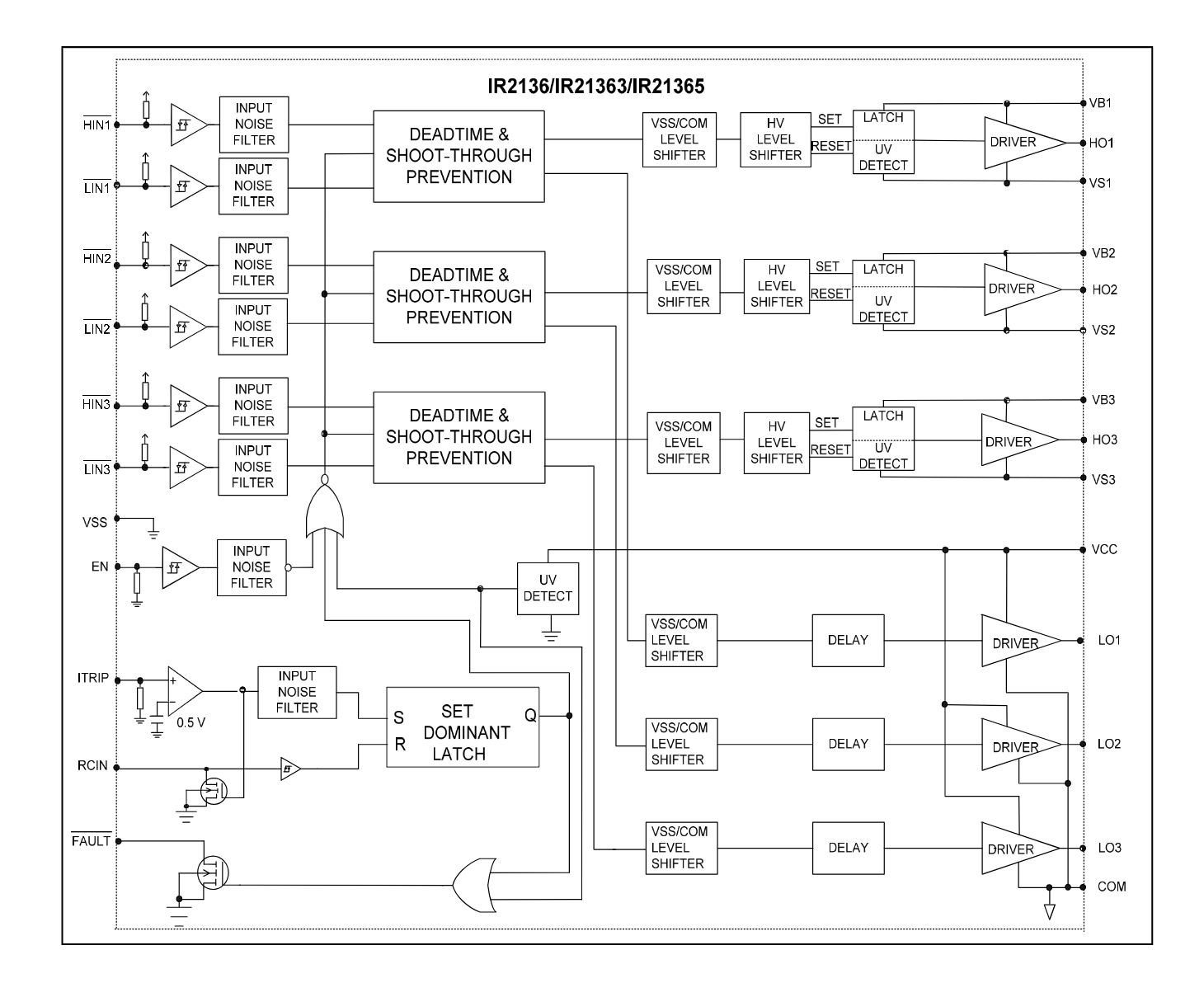

IR2136STRPBF Typical application Circuitry

IR2136STRPBF

The IR2136STRPBF is a distinct component, an epitome of International Rectifier's commendable lineup of high-voltage, high-speed power MOSFET and IGBT drivers. This specific driver, fortified with IR's proprietary HVIC and latch immune CMOS constructs, functions optimally when interfacing with three-phase bridge arrangements. Implementing the IR2136STRPBF, with its high and low-side referenced output channels, is essential for the success of many power electronics applications.

1. VCC: The control circuitry's power supply pin. A decoupling capacitor should be connected between VCC and VSS, near to the integrated circuit.

2. VSS: Represents the logic ground. Ensure its linkage with the system's ground plane.

3. HINx (High-side Input Pins): These pins expect the logic signals destined to drive the high-side MOSFETs or IGBTs.

4. LINx (Low-side Input Pins): The destination for logic signals driving the low-side switching devices.

5. HOx (High-side Output Drivers): Directly route these pins to the gates of the high-side power devices.

6. LOx (Low-side Output Drivers): Direct linkage with the gates of the low-side power devices is imperative.

7. COM: This is the common ground terminal. Often, this pin is connected to the source terminals of the low-side MOSFETs or IGBTs.

8. VBx (High-side Floating Supply Pins): Attach these terminals to bootstrap capacitors to provide the driving voltage to the high-side switching devices.

9. VSx (High-side Floating Supply Return Pins): Establish connectivity between these pins and the source terminals of the high-side power devices.

10. SD (Shut Down Pin): It's a safety feature. The outputs are disabled when this pin receives a logic high signal.

11. Additional Circuit Considerations:

- Bootstrap Arrangement: The high-side drivers are often powered using a bootstrap approach. Position a diode with its anode connected to VCC, its cathode linked to VBx, and align a capacitor between each VBx and its corresponding VSx.

- Protection and Decoupling: Implementing decoupling capacitors close to the IR2136STRPBF and between VCC and VSS ensures noise immunity and stability.

12. Ensuring Operational Cohesiveness: One must be vigilant about the timing of the input signals to HINx and LINx pins. Coordinated signaling prevents simultaneous conduction in the bridge, averting a potential short-circuit or "shoot-through."
