What is the Additional Feature ?

Name: IR2113STRPBF
Brand: Infineon Technologies
SKU: IR2113STRPBF
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Infineon Technologies IR2113STRPBF

Part No.:: IR2113STRPBF

Manufacturer:: Infineon Technologies

Package:: 16-SOIC (0.295, 7.50mm Width)

Datasheet:: IR2113STRPBF.pdf

Description:: IC GATE DRVR HALF-BRIDGE 16SOIC

In Stock:: 2865

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IR2113STRPBF Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
DrivenConfiguration:
Half-Bridge
ChannelType:
Independent
NumberofDrivers:
2
GateType:
IGBT, N-Channel MOSFET
Voltage-Supply:
3.3V ~ 20V
LogicVoltage-VILVIH:
6V, 9.5V
Current-PeakOutput(SourceSink):
2A, 2A
InputType:
Non-Inverting
HighSideVoltage-Max(Bootstrap):
600 V
Rise/FallTime(Typ):
25ns, 17ns
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

IR2113STRPBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IR2113STRPBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IR2113STRPBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IR2113STRPBF information

Views：

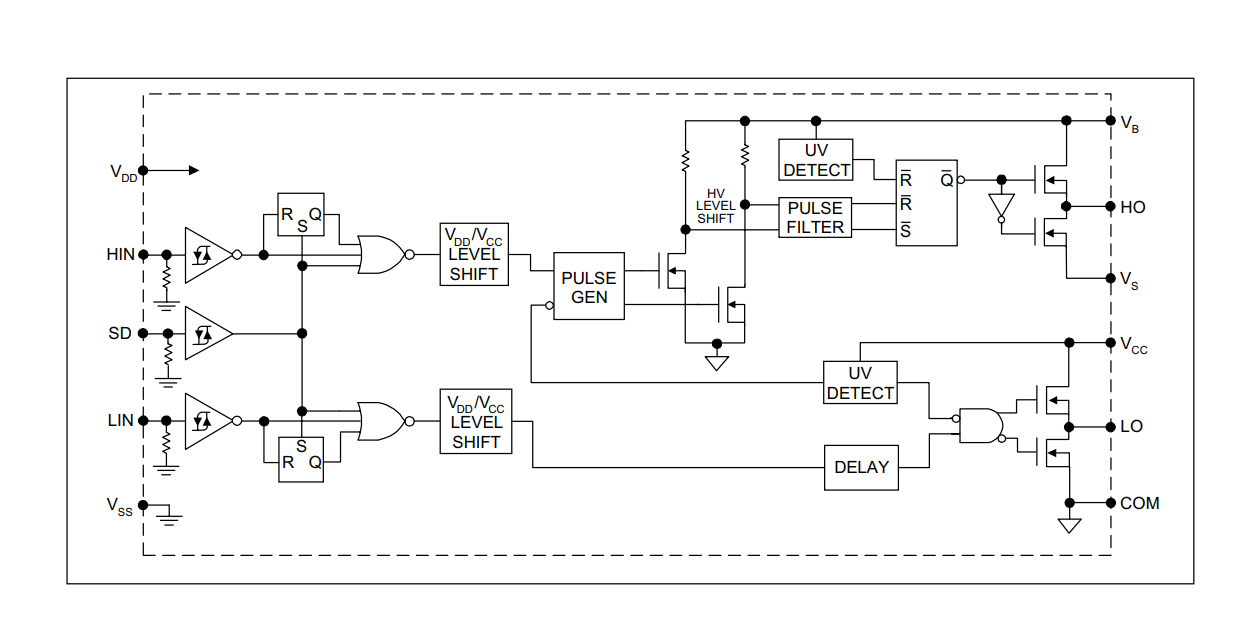

IR2113STRPBF Typical application Circuitry

IR2113STRPBF

The IR2113STRPBF is an integral member of the IR gate driver family, manufactured by International Rectifier. This specific component, designed with a blend of the company's proprietary HVIC (High Voltage Integrated Circuit) and latch immune CMOS technologies, emerges as a high-voltage, high-speed power MOSFET and IGBT driver. Primarily tailored for applications requiring half-bridge configurations, the IR2113STRPBF is well-equipped to drive both N-channel power MOSFETs and IGBTs. To harness its capabilities, a meticulous approach to integrating the IR2113STRPBF within circuits is paramount.

1. VCC: This terminal is the supply pin for the logic side. A positive supply (typically between 10-20V) fuels the IC's internal mechanisms.

2. LIN: Acting as the control input for the low-side gate driver, LIN welcomes the PWM signal tailored for the low-side MOSFET or IGBT. Compatibility with both CMOS and LSTTL outputs is an innate feature.

3. HIN: Exclusively designed for the high-side MOSFET or IGBT, this terminal receives the PWM control input.

4. HO: Directly interfacing with the gate of the high-side switch, this is the output for the high-side gate drive.

5. LO: Precisely juxtaposed with the gate of the low-side switch, LO represents the output for the low-side gate drive.

6. VSS: Symbolizing the logic's ground, this terminal should find a direct link to the system's ground.

7. VB: This pin, pivotal for the high-side driver's voltage supply, is interconnected with the bootstrap mechanism. The bootstrap capacitor essentially bridges the VB and VS pins.

8. VS: Facilitating a dual role, this terminal not only attaches to the source of the high-side switch but also couples with the negative facet of the bootstrap capacitor.

9. COM: This common terminal acts as the ground reference for both the low-side driver and the shutdown function.

10. SD (Shut Down): This is an active low input pin, and when pulled low, it inhibits both HO and LO outputs.

11. Augmentation with Ancillary Components:

- Bootstrap Dynamics: An auxiliary diode, in tandem with a capacitor, is indispensable for the high-side driver's bootstrap supply. The diode's configuration should have its anode linked to VCC and its cathode to VB, while the capacitor should bridge the VB-VS gap.

- Decoupling Strategy: Embedding a ceramic capacitor, say of 100nF magnitude, proximate to the IR2113STRPBF, with connections spanning between VCC and VSS, will significantly mitigate noise and enhance stability.

12. Precautionary Notes: To deter cross-conduction or detrimental "shoot-through" within the half-bridge, the synchronization of input PWM signals channeled to LIN and HIN is pivotal. Additionally, the IR2113STRPBF's optimal performance hinges on the VCC voltage being within the stipulated parameters, as outlined in the datasheet.

Adeptly integrating the IR2113STRPBF into an electronic assembly mandates an in-depth grasp of its attributes coupled with precision in execution. To optimize designs encompassing this component, continual reference to the IR2113STRPBF's datasheet, buttressed by expert advice, is an unspoken prerequisite.

IR2113STRPBF FAQ

1. How to order IR2113STRPBF on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that IR2113STRPBF is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the IR2113STRPBF. All suppliers must pass our qualification reviews before they can publish their products including IR2113STRPBF on icwhale.com; we pay more attention to the channels and quality of IR2113STRPBF products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the IR2113STRPBF price and inventory displayed accurate?

The price and inventory of IR2113STRPBF fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of IR2113STRPBF?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the IR2113STRPBF we delivered, we will accept the replacement or return of the IR2113STRPBF only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of IR2113STRPBF.

(3)The PartNo is unused and only in the original unpacked packaging.
