What is the Additional Feature ?

Name: IR2113SPBF
Brand: Infineon Technologies
SKU: IR2113SPBF
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Infineon Technologies IR2113SPBF

Part No.:: IR2113SPBF

Manufacturer:: Infineon Technologies

Package:: 16-SOIC (0.295, 7.50mm Width)

Datasheet:: IR2113SPBF.pdf

Description:: IC GATE DRVR HALF-BRIDGE 16SOIC

In Stock:: 585

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IR2113SPBF Specifications

Packaging:
Bulk,Tube
Series:
-
ProductStatus:
Active
DrivenConfiguration:
Half-Bridge
ChannelType:
Independent
NumberofDrivers:
2
GateType:
IGBT, N-Channel MOSFET
Voltage-Supply:
3.3V ~ 20V
LogicVoltage-VILVIH:
6V, 9.5V
Current-PeakOutput(SourceSink):
2A, 2A
InputType:
Non-Inverting
HighSideVoltage-Max(Bootstrap):
600 V
Rise/FallTime(Typ):
25ns, 17ns
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

IR2113SPBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IR2113SPBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IR2113SPBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IR2113SPBF information

Views：

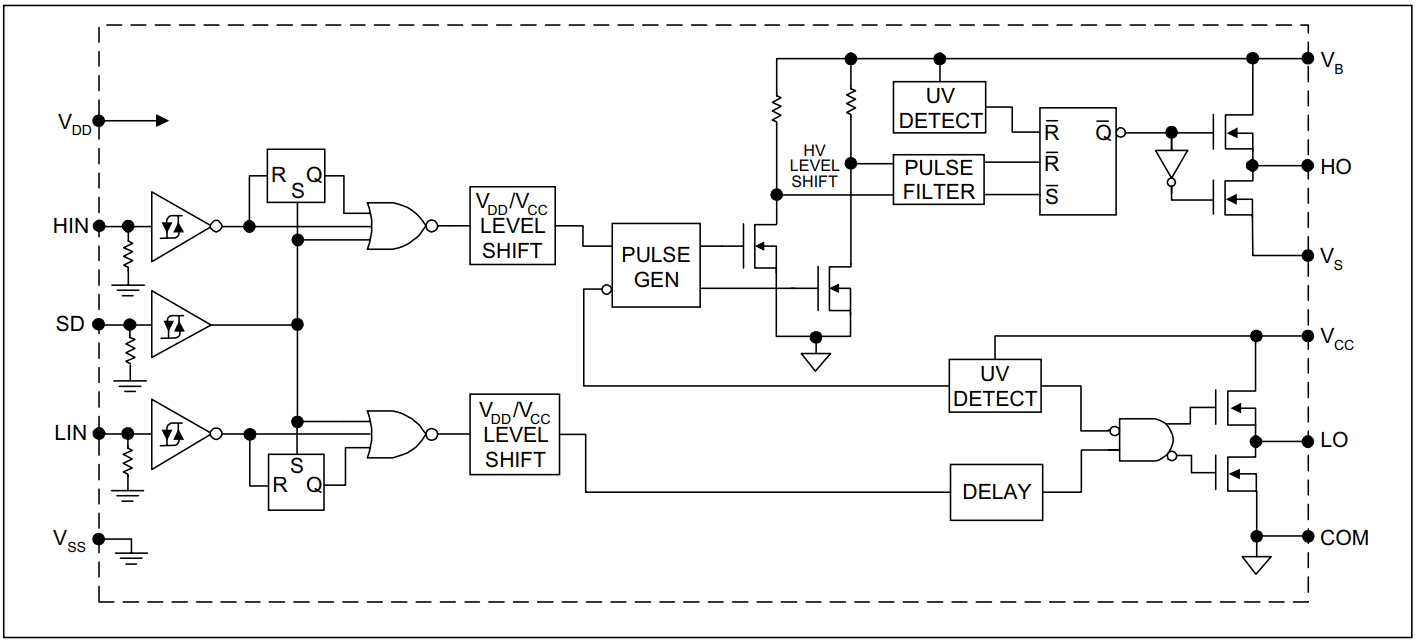

IR2113SPBF Typical application Circuitry

IR2113SPBF

The IR2113SPBF is a component of the IR2113 series, which is part of a family of high-voltage, high-speed power MOSFET and IGBT drivers. These drivers are known for their independent high and low side referenced output channels, designed to accommodate a wide array of applications such as motor drives, inverter circuits, and various forms of switching power supplies. The IR2113 series stands out for its ability to efficiently manage and drive power devices in high-speed switching applications.

1. High and Low Side Driver Configuration (Dual-Channel Design): The IR2113SPBF is engineered to control both high-side and low-side power MOSFETs or IGBTs. This dual-channel capability is essential for effectively implementing half-bridge or full-bridge topologies in power electronics systems.

2. Pin Layout and Functionality (Comprehensive Pin Design): The IR2113SPBF features a strategic pin layout to support its dual-channel functionality. Important pins include VCC (the low-side and logic fixed supply voltage), VB (the high-side floating supply voltage), HIN (high-side input control), LIN (low-side input control), HO (high-side output), LO (low-side output), COM (low-side return), and VS (high-side floating supply return).

3. Bootstrap Circuit Integration (High-Side Drive Provision): To facilitate the high-side drive, the IR2113SPBF typically employs a bootstrap technique involving a capacitor connected between the VB and VS pins. This setup, along with an external diode, provides the necessary voltage to power the high-side output, enabling it to operate effectively at a voltage level above the system ground.

4. Input Signal Handling (Control Inputs): The HIN and LIN pins are designed to accept standard logic-level signals, allowing the IR2113SPBF to interface directly with microcontrollers or PWM signal generators. These inputs are responsible for driving the HO and LO outputs, thereby controlling the gate voltages of the connected high and low-side power devices.

5. Output Drive Capability (Power Device Activation): The HO and LO pins are robust output channels capable of delivering the necessary drive current to the gates of external MOSFETs or IGBTs, ensuring swift and efficient switching of these power devices.

6. Built-in Protection Features (Operational Safety): The IR2113SPBF incorporates under-voltage lockout (UVLO) for both the VCC and VB supplies, safeguarding the device and the connected power switches from operating under sub-optimal voltage conditions, which could otherwise compromise the system's performance and reliability.

7. Circuit Implementation Strategy (Effective Power Switching): In typical applications, the IR2113SPBF is employed in a half-bridge configuration to drive one high-side and one low-side switch. Proper timing and sequencing of the HIN and LIN signals are critical to prevent simultaneous conduction of both switches, which could lead to destructive shoot-through currents in the bridge.

Implementing the IR2113SPBF in electronic designs requires careful consideration of its dual-channel operation, precise control signal management, and the implementation of an effective bootstrap circuit for the high-side drive. By meticulously managing the connections to each pin and leveraging the device's integrated features, designers can utilize the IR2113SPBF to achieve high-efficiency, high-speed power switching in a variety of advanced electronic applications.

IR2113SPBF FAQ

1. How to order IR2113SPBF on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that IR2113SPBF is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the IR2113SPBF. All suppliers must pass our qualification reviews before they can publish their products including IR2113SPBF on icwhale.com; we pay more attention to the channels and quality of IR2113SPBF products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the IR2113SPBF price and inventory displayed accurate?

The price and inventory of IR2113SPBF fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of IR2113SPBF?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the IR2113SPBF we delivered, we will accept the replacement or return of the IR2113SPBF only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of IR2113SPBF.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
