Infineon Technologies IR2110STRPBF

Part No.:: IR2110STRPBF

Manufacturer:: Infineon Technologies

Package:: 16-SOIC (0.295, 7.50mm Width)

Datasheet:: IR2110STRPBF.pdf

Description:: IC GATE DRVR HALF-BRIDGE 16SOIC

In Stock:: 3738

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IR2110STRPBF Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
DrivenConfiguration:
Half-Bridge
ChannelType:
Independent
NumberofDrivers:
2
GateType:
IGBT, N-Channel MOSFET
Voltage-Supply:
3.3V ~ 20V
LogicVoltage-VILVIH:
6V, 9.5V
Current-PeakOutput(SourceSink):
2A, 2A
InputType:
Non-Inverting
HighSideVoltage-Max(Bootstrap):
500 V
Rise/FallTime(Typ):
25ns, 17ns
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

IR2110STRPBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IR2110STRPBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IR2110STRPBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IR2110STRPBF information

Views：

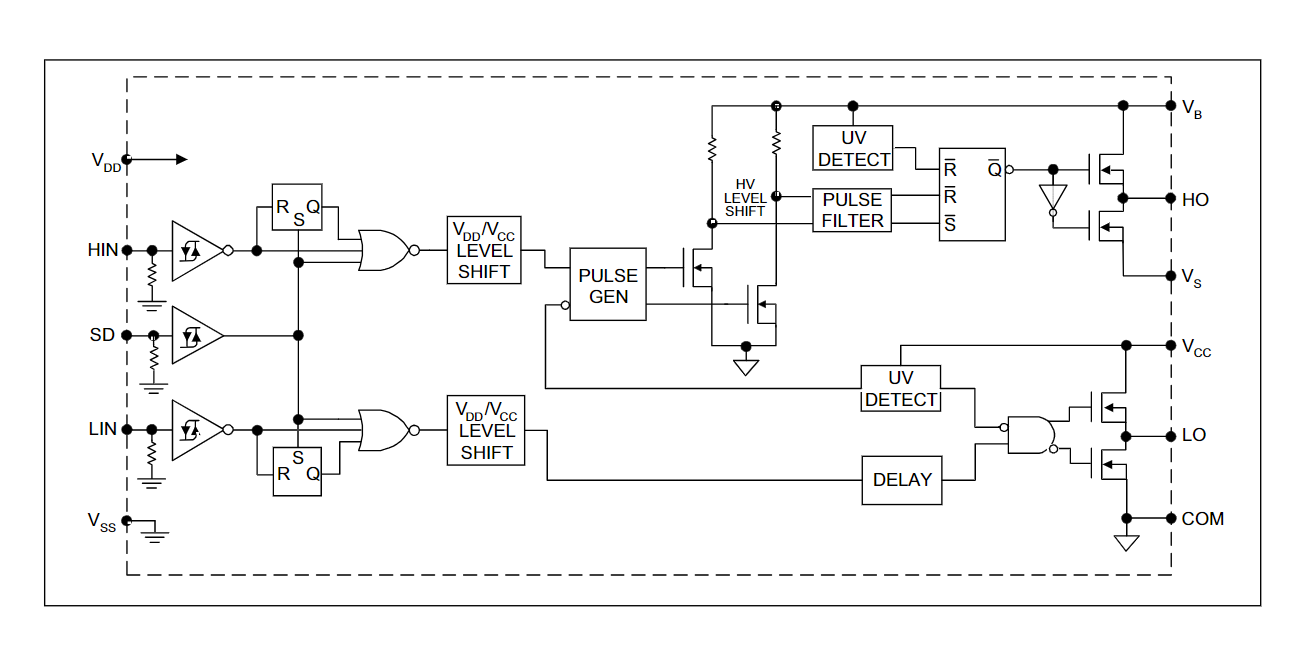

IR2110STRPBF Typical application Circuitry

IR2110STRPBF

The IR2110STRPBF emerges as a distinguished component within International Rectifier's array of high-voltage, high-speed power MOSFET and IGBT drivers. Engineered with advanced HVIC and latch immune CMOS technologies, the IR2110STRPBF specifically aims at driving a full-bridge or half-bridge of N-channel power MOSFETs or IGBTs. Delving deep into the integration process of the IR2110STRPBF is essential for harnessing its robust capabilities.

1. VCC: This pin represents the power supply for the logic side of the IC. It typically expects a voltage input in the range of 10-20V, fueling the internal logic circuits of the IR2110STRPBF.

2. LIN (Low Side Input): Accepting the PWM signal, this pin orchestrates the drive for the low-side MOSFET or IGBT. It's tailored for compatibility with CMOS or LSTTL output levels.

3. HIN (High Side Input): Designed to receive the PWM signal, this pin navigates the high-side MOSFET or IGBT's drive. Its compatibility aligns with CMOS or LSTTL outputs.

4. HO (High Side Output): This terminal manages the drive output directed at the high-side MOSFET or IGBT. A direct connection to the gate of the high-side device is paramount.

5. LO (Low Side Output): Ensuring the drive output for the low-side MOSFET or IGBT, this pin necessitates a direct linkage to the gate of the low-side entity.

6. VSS: This terminal serves as the logic ground. A connection grounding this pin is essential.

7. VB (High Side Floating Supply): Acting as a bootstrap supply, this pin oversees the delivery of the drive voltage to the high-side MOSFET or IGBT. The common practice involves connecting a bootstrap capacitor between the VB and VS pins.

8. VS (High Side Floating Return): Intended for a connection with the source of the high-side MOSFET or IGBT, this pin also links with the negative end of the bootstrap capacitor.

9. SD (Shutdown): A crucial feature of the IR2110STRPBF, this pin when driven high, disables both the high and low side outputs, providing a shutdown mechanism.

10. COM: This pin represents the common terminal for both the high and low-side return paths.

11. Crucial Circuitry Augments:

- Bootstrap Infrastructure: The high-side driver necessitates an auxiliary bootstrap diode and capacitor. Typically, the diode's anode connects to VCC, its cathode to VB, with the capacitor nestled between VB and VS.

- Stabilizing Capacitors: To fend off noise and stabilize operations, it's prudent to integrate a ceramic capacitor (typically 100nF) in proximity to the IR2110STRPBF, bridging VCC and VSS.

12. Operation Nuances: Ensuring synchronized PWM signals to LIN and HIN is imperative to ward off potential cross-conduction issues in the bridge circuit. Additionally, the IR2110STRPBF's operational fidelity is contingent on VCC being maintained within the prescribed bounds delineated in its datasheet.

Deploying the IR2110STRPBF necessitates a blend of theoretical acumen and meticulous execution. Given its intricate functionality, a judicious reference to the specific datasheet for the IR2110STRPBF, complemented with professional oversight, is indispensable for sophisticated circuit integrations.
