Name: IR2110STR
Brand: Infineon Technologies
SKU: IR2110STR
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Infineon Technologies IR2110STR

Part No.:: IR2110STR

Manufacturer:: Infineon Technologies

Package:: 16-SOIC (0.295, 7.50mm Width)

Datasheet:: IR2110STR.pdf

Description:: IC GATE DRVR HALF-BRIDGE 16SOIC

In Stock:: 3673

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IR2110STR Specifications

Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Obsolete
DrivenConfiguration:
Half-Bridge
ChannelType:
Independent
NumberofDrivers:
2
GateType:
IGBT, N-Channel MOSFET
Voltage-Supply:
3.3V ~ 20V
LogicVoltage-VILVIH:
6V, 9.5V
Current-PeakOutput(SourceSink):
2A, 2A
InputType:
Non-Inverting
HighSideVoltage-Max(Bootstrap):
500 V
Rise/FallTime(Typ):
25ns, 17ns
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

IR2110STR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IR2110STR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IR2110STR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IR2110STR information

Views：

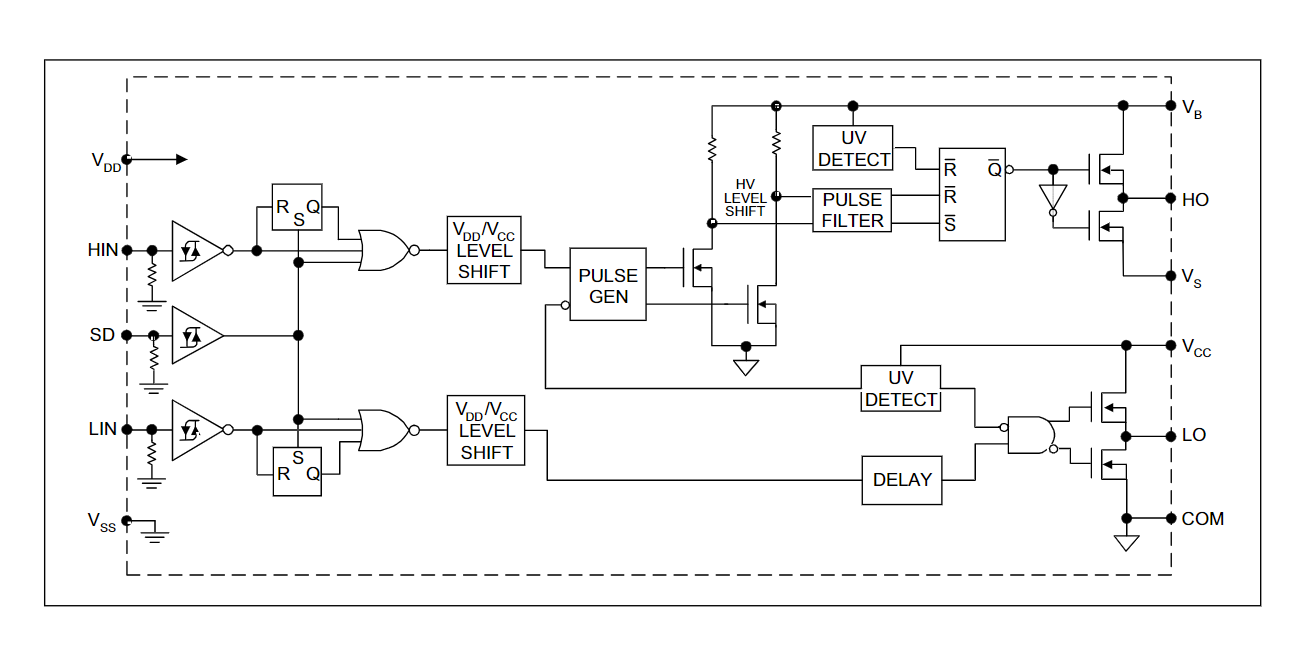

IR2110STR Typical application Circuitry

IR2110STR

An IGBT and MOSFET driver with distinct high- and low-side referenced output channels is the International Rectifier IR2110STR. It operates at high voltages and fast speeds. Known for its versatile applications in electronic power conversion and motor control, the IR2110STR offers a robust interface between digital signals (microcontrollers) and power switches. Here, we delve into the specifics of harnessing the IR2110STR's capabilities, elucidating the exact circuit interfacing, detailed down to each pin.

1. VCC: This pin powers the internal circuitry of the IR2110STR. Typically, a voltage between 10V to 20V is applied, ensuring stable operation.

2. HIN and LIN: These pins receive input signals, directing the high- and low-side drivers, respectively. They are directly connected to the control logic outputs, often from a microcontroller or PWM controller.

3. HO and LO: Connect HO to the gate of the high-side MOSFET/IGBT, and LO to the gate of the low-side MOSFET/IGBT. These pins deliver the amplified signals to drive the gates of the power switches effectively.

4. VS: This pin is vital for the high-side driver's operation, connecting to the source of the high-side MOSFET/IGBT and the negative terminal of the bootstrap capacitor.

5. VB: Supplying the high-side driver, this pin is linked to an external bootstrap capacitor's positive terminal, ensuring adequate gate drive voltage.

6. VSS and COM: These pins are connected to the system's ground, providing a reference point for the low-side signals.

7. Essential Complementary Components:

- Bootstrap Diode and Capacitor: A bootstrap circuit, necessary for the high-side driver, requires connecting a diode (anode to VCC, cathode to VB) and a capacitor between VB and VS. This arrangement supplies the high-side gate driver during on-states.

- Decoupling Capacitors: Stability is paramount, achieved by adding decoupling capacitors between VCC and COM close to the IR2110STR, minimizing noise and supply disturbances.

8. Operational Prudence: Adhering to the IR2110STR's specifications is non-negotiable. The timing of HIN and LIN signals must prevent MOSFET/IGBT "shoot-through," a perilous condition where both devices conduct simultaneously, causing a short circuit. Observing voltage limits on VCC and other pins safeguards the integrity of both the IC and the power devices.

9. Systematic Validation: Upon integrating the IR2110STR into the circuit, execute comprehensive functional tests. Apply input signals and verify appropriate high- and low-side gate drive signals, ensuring system readiness for full power operation.

In conclusion, the IR2110STR serves as a bridge, facilitating control of high-power modules by low-power logic components. Mastery of its functionalities and connection modalities is a prerequisite for any high-efficiency, high-performance power switching application. It is imperative always to consult the IR2110STR's datasheet and pertinent design resources for any nuanced operational constraints or recommendations.
