Infineon Technologies IR2101STRPBF

Part No.:: IR2101STRPBF

Manufacturer:: Infineon Technologies

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: IR2101STRPBF.pdf

Description:: IC GATE DRVR HALF-BRIDGE 8SOIC

In Stock:: 2843

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IR2101STRPBF Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
DrivenConfiguration:
Half-Bridge
ChannelType:
Independent
NumberofDrivers:
2
GateType:
IGBT, N-Channel MOSFET
Voltage-Supply:
10V ~ 20V
LogicVoltage-VILVIH:
0.8V, 3V
Current-PeakOutput(SourceSink):
210mA, 360mA
InputType:
Non-Inverting
HighSideVoltage-Max(Bootstrap):
600 V
Rise/FallTime(Typ):
100ns, 50ns
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

IR2101STRPBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IR2101STRPBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IR2101STRPBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IR2101STRPBF information

Views：

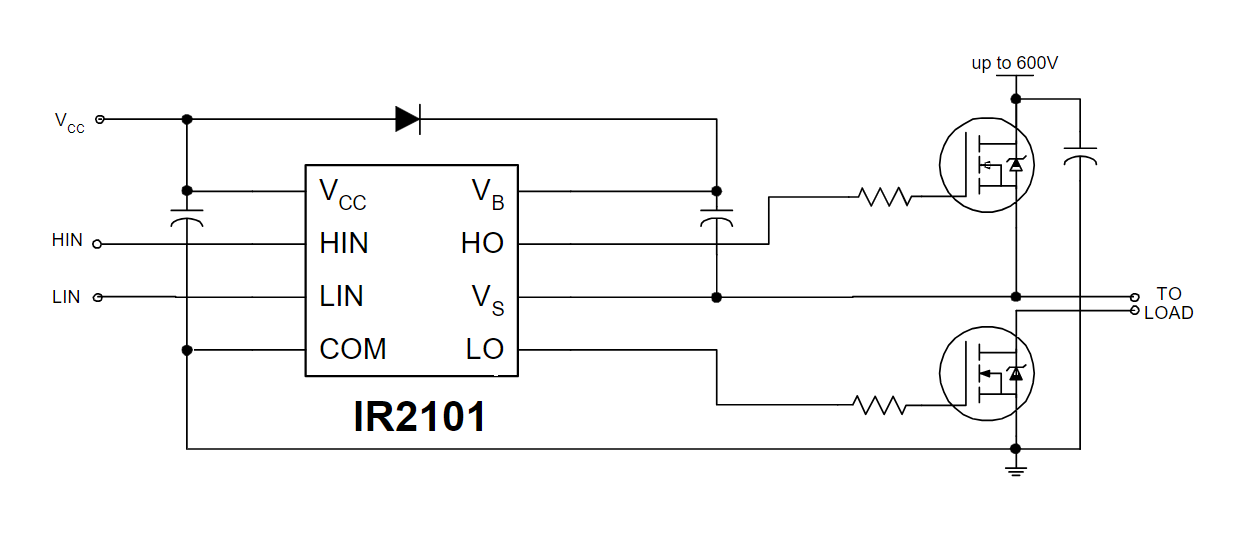

IR2101STRPBF Typical application Circuitry

IR2101STRPBF

A notable high voltage, high speed power MOSFET and IGBT driver, the IR2101STRPBF is a member of the IR210x family. Designed with proprietary high-voltage IC technology, this driver integrates a robust half-bridge configuration, often employed in applications such as motor drives and switching power supplies. As we delve into the connection specifics of the IR2101STRPBF, precision in its interfacing nuances is paramount to ensure optimal operation and longevity.

1. VCC: This is the positive supply pin. It provides power to the low-side and control circuits of the IR2101STRPBF. A decoupling capacitor is recommended to be connected between VCC and VSS for stable operation.

2. LIN: Low-side input pin. This pin accepts the PWM signal for controlling the low-side MOSFET or IGBT.

3. HIN: High-side input pin. It takes the PWM signal designated for high-side control of the MOSFET or IGBT.

4. HO: High-side floating output pin. It's the driving signal for the gate of the high-side MOSFET or IGBT. A gate resistor is commonly connected between this pin and the high-side MOSFET or IGBT gate for optimal switching performance.

5. LO: Low-side output pin. This is the driving signal for the gate of the low-side MOSFET or IGBT. Similar to the HO pin, a gate resistor is typically connected between LO and the low-side MOSFET or IGBT gate.

6. VSS: This is the ground pin for the logic sections of the IR2101STRPBF.

7. VS: Ground return for the drive of the high-side gate. It's crucial to note that this pin will swing according to the high-side switch's source voltage.

8. VB: High-side floating supply. A bootstrap capacitor is often connected between this pin and the VS pin, ensuring the high-side drive is powered correctly.

9. Key Circuit Recommendations:

- Bootstrap Configuration: To drive the high-side switch, a bootstrap setup is typically employed with the IR2101STRPBF. A diode and capacitor are used in this setup, connected between VCC (anode), VB (cathode for diode, one terminal of the capacitor), and VS (other terminal of the capacitor).

- Protection: To enhance the reliability of the IR2101STRPBF, integrating a VCC UVLO (Under-Voltage LockOut) protection is recommended. Additionally, a dead-time between the high and low side drives can prevent cross-conduction or 'shoot-through'.

10. Observance of Safe Operating Parameters: Vigilance in maintaining the IR2101STRPBF within its specified operational boundaries, as outlined in its datasheet, ensures sustained performance and minimizes the risk of component failure.

In conclusion, the IR2101STRPBF exemplifies a state-of-the-art driver solution for complex power systems. Proper interfacing, grounded in a deep understanding of its pin functionalities and application-specific requirements, is pivotal. When integrating this component into any electronics design, one must reference the dedicated datasheet of the IR2101STRPBF meticulously, adapting the nuances specific to this component.
