ON Semiconductor FAN7391MX

Part No.:: FAN7391MX

Manufacturer:: ON Semiconductor

Package:: 14-SOIC (0.154, 3.90mm Width)

Datasheet:: FAN7391MX.pdf

Description:: IC GATE DRVR HALF-BRIDGE 14SOP

In Stock:: 2723

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

FAN7391MX Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
DrivenConfiguration:
Half-Bridge
ChannelType:
Independent
NumberofDrivers:
2
GateType:
IGBT, N-Channel MOSFET
Voltage-Supply:
10V ~ 20V
LogicVoltage-VILVIH:
1.2V, 2.5V
Current-PeakOutput(SourceSink):
4.5A, 4.5A
InputType:
Non-Inverting
HighSideVoltage-Max(Bootstrap):
600 V
Rise/FallTime(Typ):
25ns, 20ns
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

FAN7391MX this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including FAN7391MX price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for FAN7391MX to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

FAN7391MX information

Views：

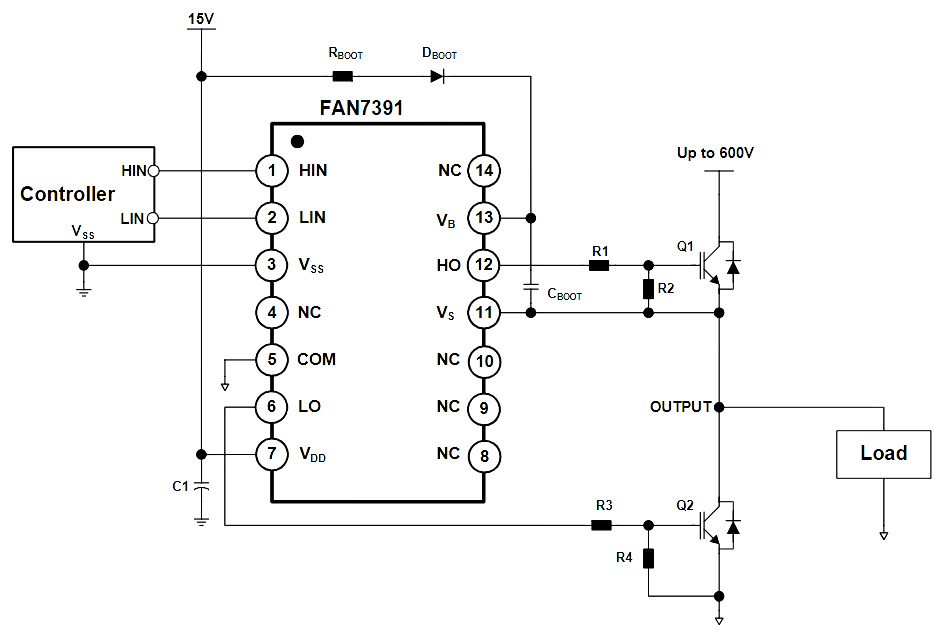

FAN7391MX Typical application Circuitry

FAN7391MX

The FAN7391MX is a high-voltage, high-speed side gate driver designed to drive MOSFETs and IGBTs. It's particularly valued for its ability to efficiently switch power devices at high frequencies, making it ideal for applications in power conversion and motor control.

Application Scenarios:

A common application for the FAN7391MX is in inverter circuits used in AC motor drives. With the help of these inverters, you may regulate the voltage and frequency of AC electricity, which in turn regulates the torque and speed of an AC motor.

Parameter Features:

The FAN7391MX boasts several key features, including a wide operating voltage range, high output current capability, and built-in under-voltage lockout protection. Because of these qualities, it can be used in challenging applications where dependable and efficient high-speed switching is necessary.

Circuit Connection Method:

For an AC motor drive inverter application using the FAN7391MX, the connection method can be detailed as follows:

1. Power Supply Connection: Connect the Vcc pin of the FAN7391MX to a suitable positive power supply, ensuring it meets the IC's operating voltage requirements for optimal performance.

2. Grounding: The system ground and the FAN7391MX's ground pin should be linked. This common ground will be used for both the logic and power sections of the circuit to ensure proper operation.

3. Input Signal: Apply the control signal to the input pin of the FAN7391MX. This signal will modulate the operation of the gate driver, turning the connected MOSFET or IGBT on and off in response to the control requirements of the AC motor drive.

4. Output Connection: Connect the output pin of the FAN7391MX to the gate of the MOSFET or IGBT. The source or emitter of the power device should be connected to the system ground, completing the path for the gate drive current.

When designing circuits with the FAN7391MX, several considerations are important:

1. Decoupling Capacitors: Place decoupling capacitors close to the Vcc and ground pins of the FAN7391MX to ensure stable operation and minimize noise on the power supply line.

2. Gate Resistor: Include a gate resistor between the FAN7391MX output and the gate of the MOSFET or IGBT to control the gate charging and discharging times, which can help in managing the switching losses and electromagnetic interference (EMI).

3. Layout Considerations: Pay careful attention to the PCB layout to minimize the loop areas formed by the current paths, which can reduce EMI and improve the overall performance of the gate drive circuit.

4. Protection Features: Utilize the built-in under-voltage lockout (UVLO) feature of the FAN7391MX to ensure that the gate driver only operates when the supply voltage is sufficient, preventing malfunctions due to low supply voltage.

By considering these points, a circuit utilizing the FAN7391MX for an AC motor drive inverter can achieve efficient, reliable operation, providing precise control over the motor's speed and torque.
