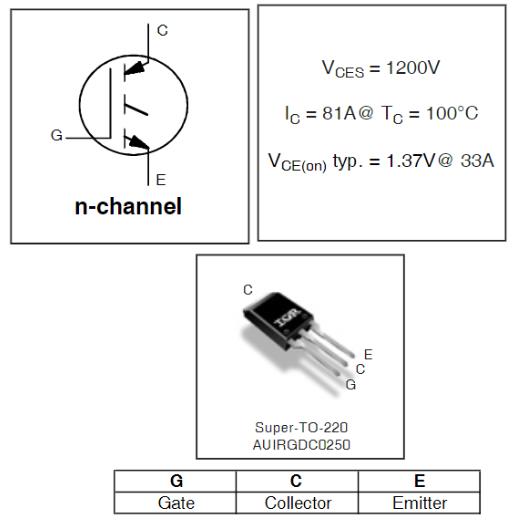

Infineon Technologies AUIRGDC0250

Part No.:: AUIRGDC0250

Manufacturer:: Infineon Technologies

Package:: TO-220-3

Datasheet:: AUIRGDC0250.pdf

Description:: IGBT 1200V 141A 543W TO-220

In Stock:: 3417

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AUIRGDC0250 Specifications

Packaging:
Tube
Series:
-
ProductStatus:
Last Time Buy
IGBTType:
-
Voltage-CollectorEmitterBreakdown(Max):
1200 V
Current-Collector(Ic)(Max):
141 A
Current-CollectorPulsed(Icm):
99 A
Vce(on)(Max)@VgeIc:
1.57V @ 15V, 33A
Power-Max:
543 W
SwitchingEnergy:
15mJ (off)
InputType:
Standard
GateCharge:
227 nC
Td(on/off)@25°C:
-/485ns
TestCondition:
600V, 33A, 5Ohm, 15V
ReverseRecoveryTime(trr):
-
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Through Hole
