Analog Devices Inc. AD8402ARZ100-REEL

Part No.:: AD8402ARZ100-REEL

Manufacturer:: Analog Devices Inc.

Package:: 14-SOIC (0.154, 3.90mm Width)

Datasheet:: AD8402ARZ100-REEL.pdf

Description:: IC DGT POT 100KOHM 256TAP 14SOIC

In Stock:: 3934

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD8402ARZ100-REEL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD8402ARZ100-REEL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD8402ARZ100-REEL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

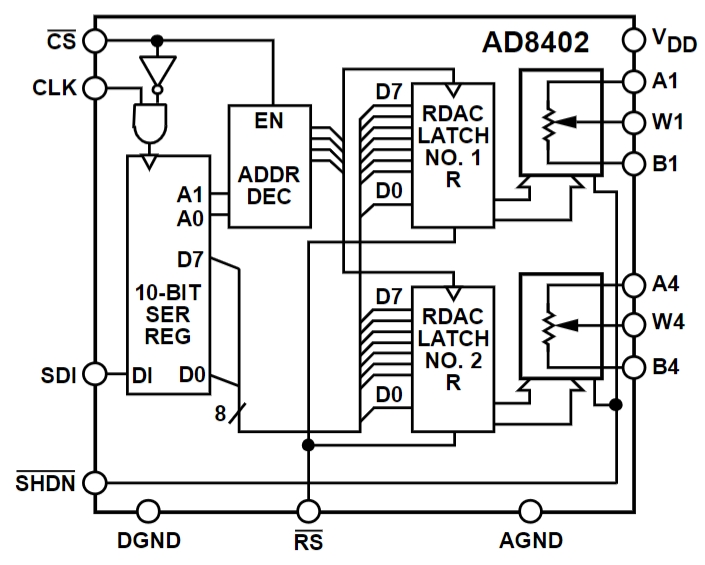

AD8402ARZ100-REEL Typical application Circuitry

Unveiling the marvels of the electronics domain, one cannot overlook the finesse of chips like the AD8402ARZ100-REEL. Here's a nuanced look into its capabilities.

Chip Essence:

The AD8402ARZ100-REEL functions as a digitally-controlled, dual-channel potentiometer. Unlike its mechanical counterparts, this digital potentiometer offers electronically-controlled precision adjustments.

Application Realms:

The versatile AD8402ARZ100-REEL finds utility in a variety of arenas:

- Audio amplification systems for volume and balance adjustments

- Programmable voltage sources

- Feedback loop systems for power supplies

- Electronic calibration of circuits

Core Features:

- Channel Dynamics: Houses two potentiometer channels

- Granular Control: Features 256-position linear adjustment capability

- Resistive Nature: Exhibits an end-to-end resistance of around 100 kΩ

- Operating Voltage Range: Flourishes between 2.7 V and 5.5 V

- Communication: Adopts an SPI-compatible serial interface

Crafting a Circuit: Volume Control in Audio Systems:

1. Energizing the Chip: Link the AD8402ARZ100-REEL's VDD terminal to a suitable +5V power source. Concurrently, establish a connection from its GND terminal to the system's ground foundation.

2. Crafting the Communication Pathway: Implementing the SPI protocol, connect the CS, SCLK, and SDI terminals of the potentiometer to their counterparts on your control device, perhaps a microcontroller.

3. Harnessing Audio Control: Integrate the audio input with the A1 terminal. Link the B1 terminal to the ground. The adjusted audio output is then gleaned from the W1 wiper terminal. Replicate this for the second channel via A2, B2, and W2 terminals.

4. Gaining Feedback: For a sophisticated setup, you can extract feedback about the current potentiometer setting by tapping into the SDO terminal.

Reflecting on Design Considerations:

- Maintaining Signal Purity: To ensure pristine signal quality, the AD8402ARZ100-REEL should reside proximal to the audio source.

- Safeguarding Against Noise: To counter potential voltage disturbances, affix bypass capacitors adjacent to the VDD and GND terminals.

- Navigating Digital Perturbations: Being a digitally-controlled entity, this potentiometer should be strategically positioned away from high-frequency domains to sidestep any digital interference.

- Lifespan Considerations: Given that digital potentiometers come with a defined adjustment cycle limit, it's pivotal to gauge the frequency of adjustments across the device's operational life.

In summation, with the AD8402ARZ100-REEL, you're not just harnessing a chip but unlocking a realm of precision-driven adjustments. By meticulously integrating it, bearing in mind its intricacies, you can tap into unparalleled performance in a slew of applications.

AD8402ARZ100-REEL information

AD8402ARZ100-REEL Specifications

Package/Case:
14-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
Taper:
Linear
Configuration:
Potentiometer
NumberofCircuits:
2
NumberofTaps:
256
Resistance(Ohms):
100k
Interface:
SPI
MemoryType:
Volatile
Voltage-Supply:
2.7V ~ 5.5V
Features:
-
Tolerance:
±30%
TemperatureCoefficient(Typ):
500ppm/°C
MountingType:
Surface Mount
OperatingTemperature:
-40°C ~ 125°C
