Analog Devices Inc. AD8400ARZ10-REEL

Part No.:: AD8400ARZ10-REEL

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: AD8400ARZ10-REEL.pdf

Description:: IC DGTL POT 10KOHM 256TAP 8SOIC

In Stock:: 4200

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD8400ARZ10-REEL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD8400ARZ10-REEL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD8400ARZ10-REEL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

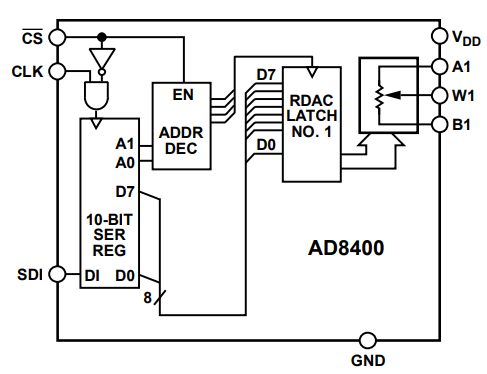

AD8400ARZ10-REEL Typical application Circuitry

AD8400ARZ10-REEL

The AD8400ARZ10-REEL is an integral part of Analog Devices' AD8400 series, which is celebrated for its digital potentiometers offering precision control of resistance values via digital signals. This series is designed to cater to applications requiring variable resistance adjustments without the mechanical wear and tear associated with traditional potentiometers. The "ARZ10-REEL" designation indicates that this particular model is packaged in an SOIC format with a 10 kΩ resistance value and supplied on a reel, suggesting its suitability for automated assembly processes and high-volume production.

1. Overview of AD8400ARZ10-REEL Features: The device stands out for its single-channel digital potentiometer functionality, enabling adjustment of resistance through digital inputs. It is designed to work efficiently across a wide voltage range, typically from 2.7V to 5.5V, making it versatile for both low-power and standard digital system applications. The digital control interface allows for seamless integration into microcontroller-based systems, offering a programmable resistance setting capability.

2. Power Supply Connectivity: For the AD8400ARZ10-REEL to function optimally, it is powered through the VDD pin, connected to the positive supply voltage, and the VSS pin, connected to the ground. This setup ensures the device is adequately powered and operates within the specified voltage range to maintain accuracy and reliability.

3. Digital Control Interface: The device's resistance value is adjusted through a serial input interface, comprising the Chip Select (CS), Serial Data Input (SDI), and Serial Clock (SCK) pins. The CS pin enables the device for programming when driven low. The SDI pin receives the serial data that determines the resistance value, and the SCK pin provides the clock signal, coordinating the data transfer process.

4. Adjusting the Resistance Value: The core functionality of the AD8400ARZ10-REEL lies in its ability to adjust the resistance between the terminal A (the high end of the potentiometer) and the terminal W (the wiper) in accordance with the digital code received through the SDI pin. This programmability allows for precise control over the output resistance, facilitating fine adjustments in the application's signal path or feedback networks.

5. Terminal Connections: The device includes three key terminals related to its potentiometric function: A, B, and W. Terminal A connects to the high end of the resistive element, terminal B to the low end, and terminal W to the wiper, which moves along the resistive element depending on the digital code input. This configuration enables the AD8400ARZ10-REEL to emulate a mechanical potentiometer with the reliability and precision of digital control.

6. Decoupling for Noise Reduction: To ensure the AD8400ARZ10-REEL operates with minimal noise interference, a decoupling capacitor is typically placed close to the VDD pin. This capacitor acts to smooth out any voltage spikes and provides a stable power supply to the device, critical for maintaining its performance accuracy.

7. Signal Integrity Considerations: When incorporating the AD8400ARZ10-REEL into a circuit, careful planning of the PCB layout is essential. Optimizing the layout to minimize noise interference involves strategic placement of the device, especially considering the separation of digital and analog signal paths to reduce crosstalk and ensure high signal integrity.

8. Thermal Management: While the AD8400ARZ10-REEL is designed for low power consumption, appropriate thermal management practices should be observed, particularly in designs that push the limits of its operating voltage and current specifications. Ensuring that the device is kept within its thermal operating range is vital for long-term reliability.

Incorporating the AD8400ARZ10-REEL into electronic designs demands attention to detail in terms of power supply management, digital control interface configuration, precise resistance value adjustment, effective decoupling, and careful PCB layout for signal integrity. By adhering to these guidelines, the AD8400ARZ10-REEL serves as a highly adaptable component, offering digital precision for resistance adjustments in a myriad of electronic applications.

AD8400ARZ10-REEL information

AD8400ARZ10-REEL Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Taper:
Linear
Configuration:
Potentiometer
NumberofCircuits:
1
NumberofTaps:
256
Resistance(Ohms):
10k
Interface:
SPI
MemoryType:
Volatile
Voltage-Supply:
2.7V ~ 5.5V
Features:
-
Tolerance:
±20%
TemperatureCoefficient(Typ):
500ppm/°C
MountingType:
Surface Mount
OperatingTemperature:
-40°C ~ 125°C
