Analog Devices Inc. AD5160BRJZ10-RL7

Part No.:: AD5160BRJZ10-RL7

Manufacturer:: Analog Devices Inc.

Package:: SOT-23-8

Datasheet:: AD5160BRJZ10-RL7.pdf

Description:: IC DGT POT 10KOHM 256TAP SOT23-8

In Stock:: 96012

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD5160BRJZ10-RL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD5160BRJZ10-RL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD5160BRJZ10-RL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

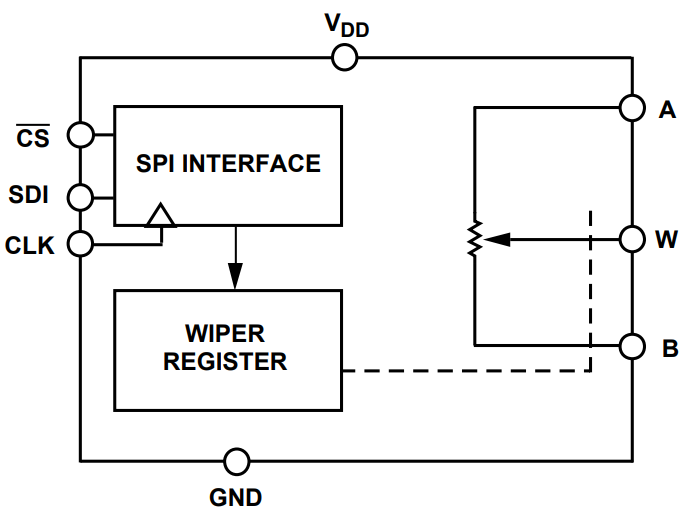

AD5160BRJZ10-RL7 Typical application Circuitry

AD5160BRJZ10-RL7

The AD5160BRJZ10-RL7 emerges as a flagship digital potentiometer in the AD5160 series from Analog Devices, signifying a leap in precision and control for variable resistance applications. This device encapsulates the essence of digital control over analog resistance, offering a compact, reliable solution for adjusting and calibrating resistance values in a myriad of electronic circuits. The suffix "BRJZ10-RL7" indicates its specific resistance value, package type, and packaging option-highlighting its design for seamless integration into automated production processes, particularly on a 7-inch reel suitable for high-volume assembly.

1. Series Essence: The AD5160 series stands out for its digital potentiometer capabilities, enabling electronic systems to dynamically adjust resistance values through digital signals. This functionality is crucial in fine-tuning circuits without necessitating manual intervention, thereby enhancing the adaptability and precision of electronic designs. The AD5160BRJZ10-RL7, with its compact SOT-23 package, exemplifies this series' commitment to providing digital control in space-constrained applications.

2. Power Supply and Electrical Connection Framework: The AD5160BRJZ10-RL7 operates with a single power supply ranging from 2.7V to 5.5V, accommodating various electronic design specifications. This voltage flexibility ensures compatibility with both 3V and 5V systems. To optimize performance and stability, it is recommended to connect a decoupling capacitor close to the VDD and GND pins, which helps in filtering out noise from the power supply, thereby ensuring smooth operation.

3. Pin Configuration and Usage: The AD5160BRJZ10-RL7 is designed with a straightforward pin layout for ease of integration: - VDD (Pin 1) connects to the positive power supply.

- W (Pin 2) serves as the wiper output, where the resistance between this pin and either of the end terminals can be adjusted.

- A (Pin 3) and B (Pin 5) are the terminal pins of the potentiometer, with A typically connected to the higher potential and B to the lower potential. - GND (Pin 4) ties to the ground.

- CS (Pin 6) is the chip select, enabling the digital interface for setting the wiper position.

- SDI (Pin 7) and SCLK (Pin 8) are used for serial data input and serial clock input, respectively, facilitating the digital control signals that adjust the wiper position. By utilizing these pins, users can precisely set the resistance of the AD5160BRJZ10-RL7, offering a digital method to achieve analog adjustments.

4. Integration Strategy for Enhanced Performance: Incorporating the AD5160BRJZ10-RL7 into electronic systems demands consideration of signal integrity and noise minimization. Employing short, direct traces for connections, especially for the digital control lines, minimizes susceptibility to electromagnetic interference. Furthermore, proper layout planning, including the separation of digital and analog paths, is essential to preserve the fidelity of the resistance settings.

5. Diverse Applications: The AD5160BRJZ10-RL7 is adept at fulfilling roles in various application domains-from fine-tuning the gain of an amplifier circuit to adjusting the biasing of sensors in industrial control systems. Its digital control interface allows for remote adjustments, making it an ideal choice for applications where manual tuning is impractical or impossible.

In conclusion, the AD5160BRJZ10-RL7 represents a pinnacle of innovation within the AD5160 series, providing a digital interface to analog resistance adjustment. Its power supply flexibility, precise pin configuration, and strategic integration guidelines underscore its utility in a wide range of applications, offering designers a versatile tool for precision resistance calibration in compact, digitally controlled environments.

AD5160BRJZ10-RL7 information

AD5160BRJZ10-RL7 Specifications

Package/Case:
SOT-23-8
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Taper:
Linear
Configuration:
Potentiometer
NumberofCircuits:
1
NumberofTaps:
256
Resistance(Ohms):
10k
Interface:
SPI
MemoryType:
Volatile
Voltage-Supply:
2.7V ~ 5.5V
Features:
-
Tolerance:
±15%
TemperatureCoefficient(Typ):
45ppm/°C
MountingType:
Surface Mount
OperatingTemperature:
-40°C ~ 125°C
